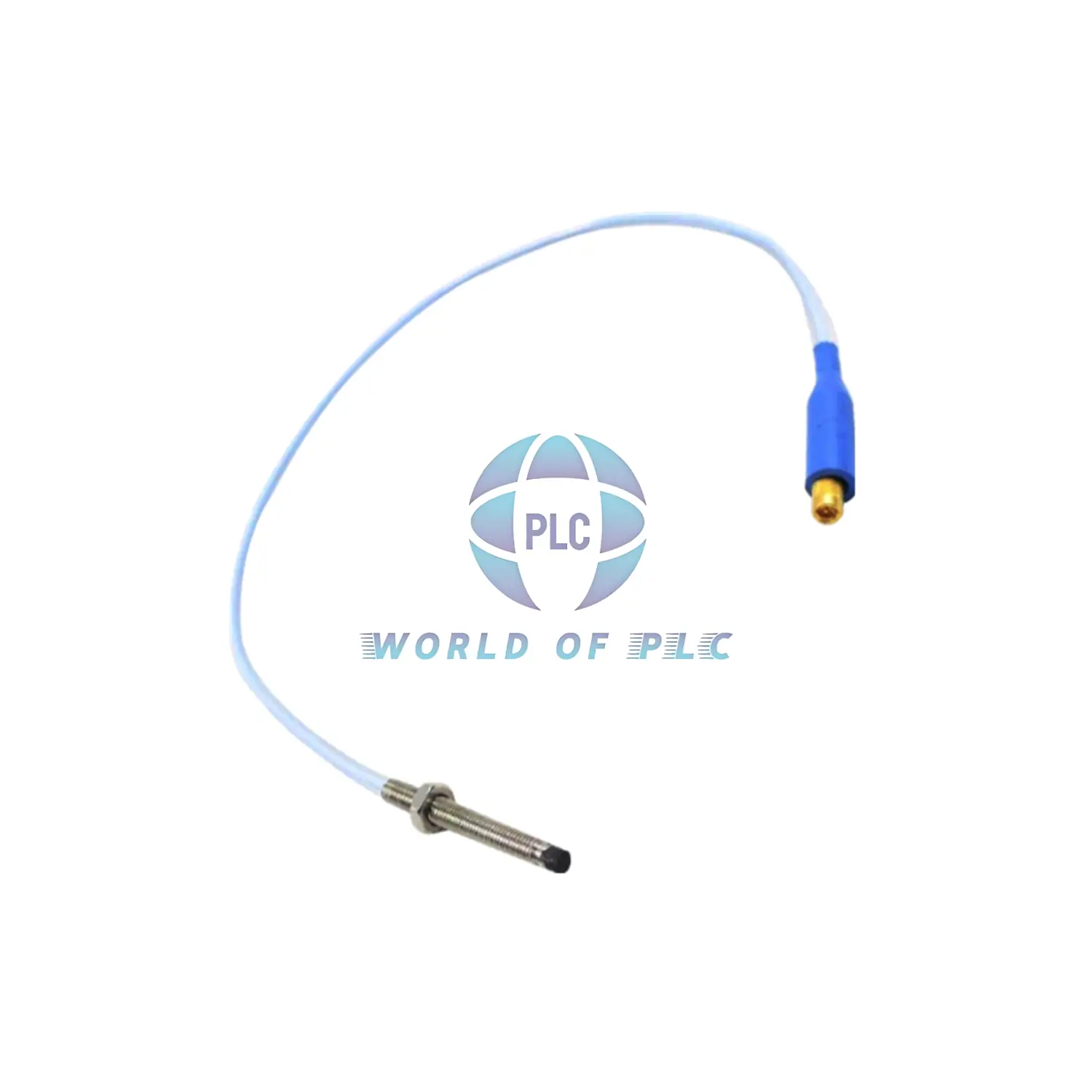

3300 NSv Proximity Probes – Without Armor 330908-00-36-70-02-00

3300 NSv Long-Reach Proximity Probe – 7-Meter Cable Solution

American Made • 3.6-inch fully threaded body • Extra-long 7-meter cable • Industrial vibration monitoring

Key Features

• Extended Cable: 7 meters (23 feet)
• Fully Threaded Case: 3.6-inch length
• High-Temperature Rated: -62°F to +351°F
• Industrial Construction: Stainless steel body

Technical Specifications

• Complete Model: 330908-00-36-70-02-00
• Case Length: 3.6 inches
• Cable Length: 7.0 meters (23 feet)
• Electrical Resistance: 5.9Ω ±0.9
• Connector: ClickLoc coaxial
• Temperature Range: -62°F to +351°F
• Weight: 0.5-5.3 oz

Model Suffix Explained

• Base
  • 330908: Standard probe
• Configuration
  • 00: 0″ unthreaded (fully threaded)
  • 36: 3.6″ case length
• Cable & Approvals
  • 70: 7.0 meter cable
  • 02: ClickLoc connector
  • 00: No approvals required

Installation Data

• Max Torque: 300 in-lb
• Recommended Torque: 100 in-lb
• Max Thread Engagement: 0.563 inch
• Seal Type: Viton O-ring
• Cable Type: 75Ω FEP coaxial

Professional FAQ

• Q: Signal loss with 7m cable?
  A: Designed with 75Ω impedance to minimize loss
• Q: Cable replacement options?
  A: Must use identical FEP coaxial cable
• Q: Minimum bend radius for cable?
  A: Minimum 2-inch radius recommended
• Q: Suitable for outdoor use?
  A: Yes, with proper weather protection
• Q: Warranty on cable connections?
  A: 12-month coverage on all components
