Bently Nevada 330908-00-46-05-02-05 Proximity Probe
Product Summary

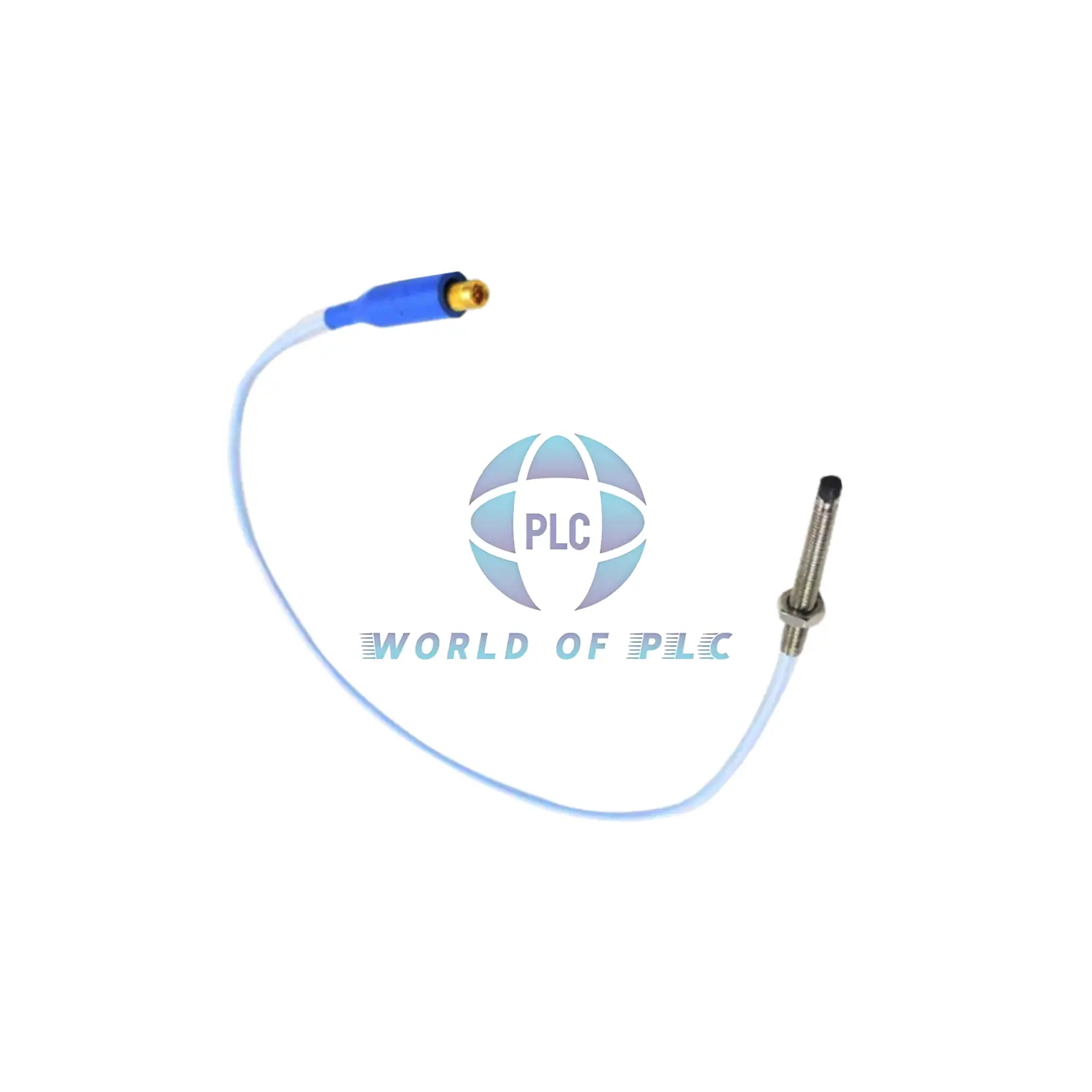

The 330908-00-46-05-02-05 is a 3300 NSv non-armored proximity probe. It features a 3/8-24 UNF thread, 4.6 inch case length, and 0.5 meter standard cable with ClickLoc connector. It includes multiple global approvals and is made for small equipment monitoring in tight spaces.
Main Specifications
- Thread Size: 3/8-24 UNF
- Unthreaded Section: 0.0 in
- Overall Case Length: 4.6 in
- Cable Length: 0.5 meter (20 in)
- Connector: Miniature ClickLoc, standard cable
- Agency Approval: 05 = Multiple international approvals
- Case Material: AISI304 stainless steel
- Tip Material: Polyphenylene sulfide (PPS)
- Cable Spec: 75 Ω coaxial, FEP insulated
- DC Resistance (0.5 m): 4.0 ± 0.5 ohms
- Operating Temp: -52°C to +177°C
- Storage Temp: -52°C to +177°C
- Recommended Torque: 11.3 N·m (100 in·lb)
- Thread Engagement Limit: 0.563 in
- Seal Type: Viton O-ring (differential pressure)
- Weight: 14 to 150 g
Model Suffix Breakdown
- 330908: NSv probe, 3/8-24 UNF, no armor
- 00: 0 in unthreaded length
- 46: 4.6 in case length
- 05: 0.5 meter total cable
- 02: Miniature ClickLoc connector
- 05: Global agency approvals
Installation Guide
- Use torque of 11.3 N·m when installing
- Ensure proper thread depth of 0.563 in
- Do not store below -34°C for long time
System Compatibility
- Works with 3300 NSv extension cables
- Matches with NSv Proximitor sensors
- Ideal for use with fans, motors, pumps
Packaging Info
- Includes: 1 probe unit
- Industrial safe packaging
- Certificate not included
Warranty and Shipping
- Warranty: 12-month replacement
- Shipping: DHL, FedEx, UPS available
Application Scenarios
- Compressors: Detects shaft movement in limited areas
- Motors: Supports early failure prediction
- Fans: Enables compact condition monitoring
- OEM Machines: Designed for tight installs
