Bently Nevada 330908-12-08-05-02-05 3300 NSv Proximity Probe
Product Overview

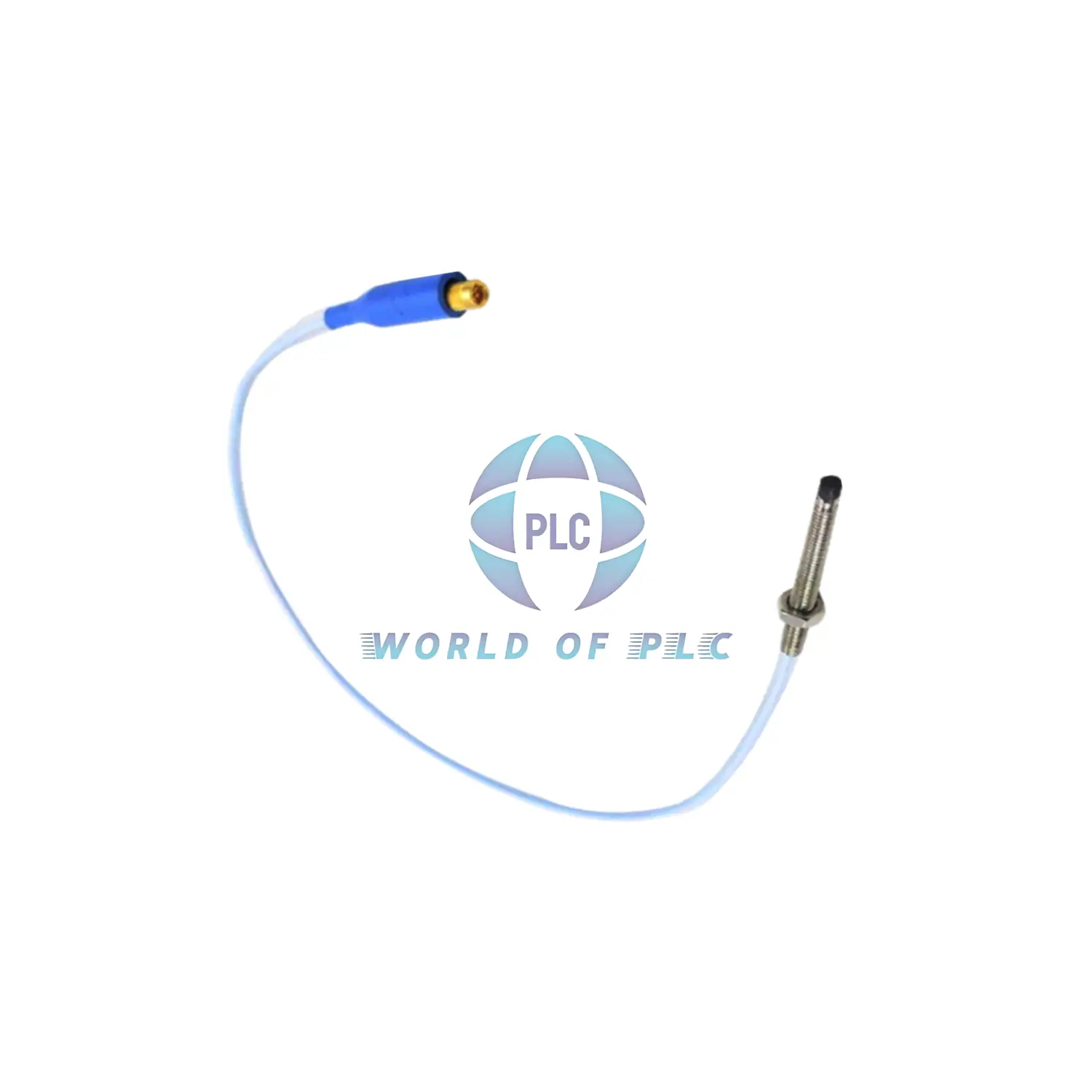

The 330908-12-08-05-02-05 is a small 3300 NSv proximity probe. It has a 3/8-24 UNF thread and no armor. The case length is 0.8 inches. It comes with a 0.5-meter cable and ClickLoc connector. This model has multiple agency approvals.
Technical Data
- Range: ±0.4 mm
- Accuracy: ±0.06 mm
- Sensitivity: -7.5 mV/μm
- Output: Voltage signal proportional to gap
- Operating Temp: -52°C to +177°C
- Storage Temp: -52°C to +177°C
- Tip Material: Polyphenylene sulfide (PPS)
- Case Material: Stainless steel AISI 304
- Cable: 75 Ω coaxial, FEP insulated
- Resistance (0.5 m cable): 4.0 ± 0.5 Ω
- Seal: Viton O-ring
- Weight: 14 to 150 g (0.5 to 5.3 oz)
Installation Guide
- Thread size: 3/8-24 UNF
- Max thread engagement: 0.563 inches
- Torque recommended: 11.3 N·m (100 in·lb)
- Max torque: 33.9 N·m (300 in·lb)
- Mounting: Use clean threads and do not overtighten
- Note: Avoid long exposure below -34°C to protect seal
Model Details
- 330908 – NSv probe, 3/8-24 UNF thread, no armor
- 12 – 1.2 inch unthreaded length
- 08 – 0.8 inch case length
- 05 – 0.5 meter cable length
- 02 – Miniature coaxial ClickLoc connector
- 05 – Multiple agency approvals
Compatibility
- Fits all 3300 NSv sensor systems
- Works with cables up to 7 meters
- Good for tight spaces
Warranty & Shipping
- 12-month warranty
- Fast FedEx, UPS, DHL shipping
- Ships in 1-2 business days
