Bently Nevada 330908-12-46-05-02-05 3300 NSv Proximity Probe
Overview

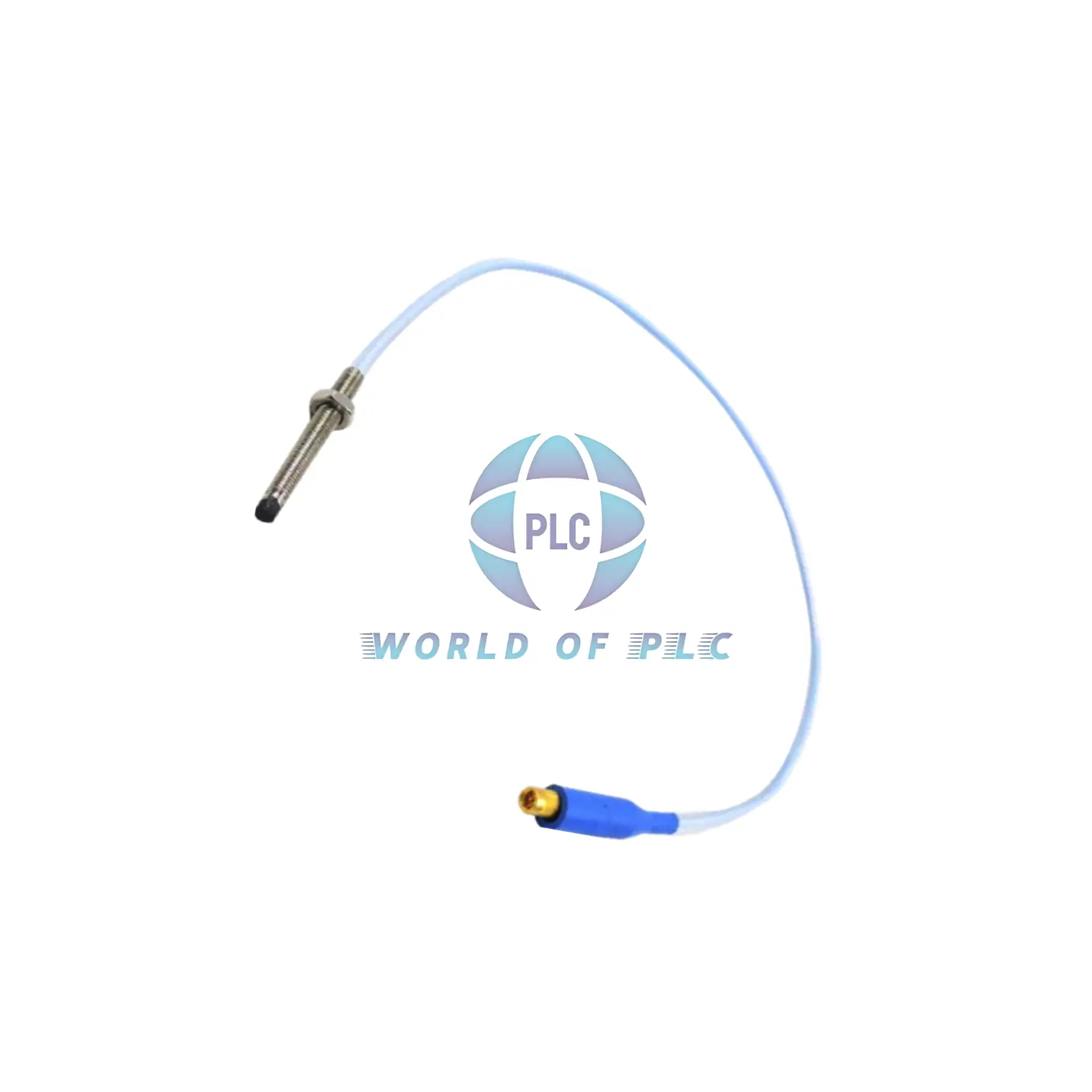

The 330908-12-46-05-02-05 is a long-style NSv proximity probe. It uses a 3/8-24 UNF thread and has no armor. It includes a 0.5-meter cable with a ClickLoc connector. This model is approved for global use.
Key Technical Data
- Range: ±0.5 mm
- Linear Range: 0.25 mm to 1.25 mm
- Sensitivity: -7.87 mV/μm
- Accuracy: ±0.07 mm typical
- Tip: PPS plastic
- Case: AISI 304 stainless steel
- Cable: 75 Ω coaxial, FEP insulated
- Resistance (0.5 m): 4.0 ± 0.5 Ω
- Operating Temp: -52°C to +177°C
- Storage Temp: -52°C to +177°C
- Seal: Viton O-ring, pressure rated
- Weight: 14–150 g
Installation Info
- Thread: 3/8-24 UNF
- Max Thread Depth: 0.563 in
- Torque (Best): 11.3 N·m (100 in·lb)
- Torque (Max): 33.9 N·m (300 in·lb)
- Mounting: Thread directly into machine port
Model Breakdown
- 330908 = NSv probe, 3/8-24 UNF thread, no armor
- 12 = 1.2 in unthreaded length
- 46 = 4.6 in case length
- 05 = 0.5 m total cable length
- 02 = ClickLoc connector, standard cable
- 05 = Multiple agency approvals
Compatibility
- Use with NSv Proximitor sensors
- Works with NSv extension cables
- Fits small motors and sealed housings
Warranty and Delivery
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL
- Dispatch Time: Within 1–2 working days
