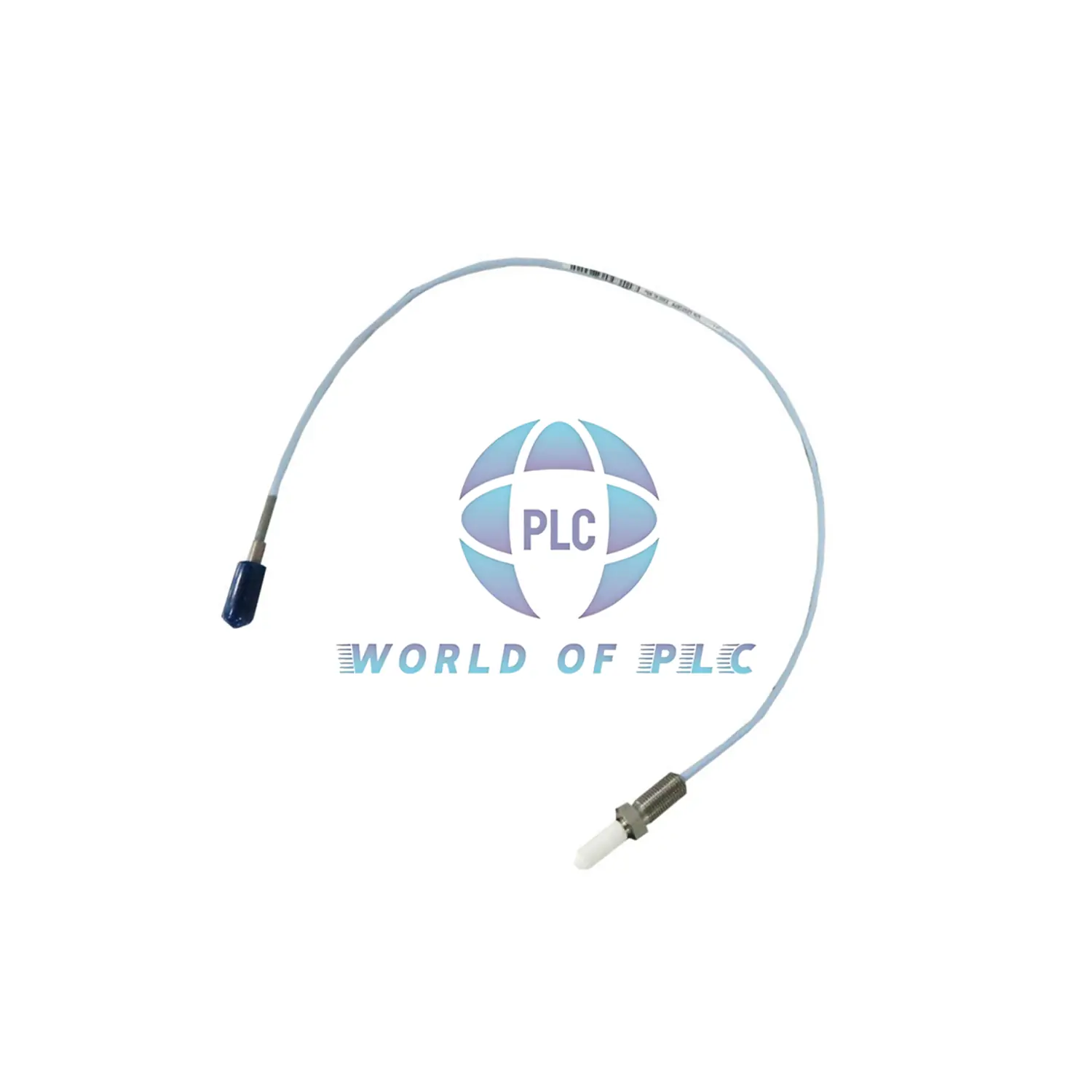

Bently Nevada 330906-02-12-50-02-CN 3300 NSv Reverse Mount Probe
Product Overview
The Bently Nevada 330906-02-12-50-02-CN is a reverse mount probe. It works well in process compressors. It gives better chemical resistance than the older RAM model. It also has improved side-view detection. This helps when installed at tight spots or near targets.
Key Technical Details
- Linear Range: 1.5 mm (0.25 mm to 1.75 mm)
- Recommended Gap: 1.0 mm
- Voltage Range: -1 V to -13 V DC
- DC Resistance: 5.3 ± 0.7 ohms
- Working Temperature: -52°C to +177°C
- Seal: Viton O-ring, reverse mount
- Tip Material: PPS (Polyphenylene Sulfide)
- Case Material: Stainless Steel (AISI 304)
- Weight: 14 to 150 g
Installation Guide
- Thread Type: 3/8-24 UNF
- Max Thread Length: 15 mm (M10x1)
- Recommended Torque: 7.5 N·m (66 in·lb)
- Max Torque: 22.6 N·m (200 in·lb)
Cabling and Compatibility
- Wiring Size: 16 to 24 AWG
- Suggested Cable: Shielded triad
- Max Length: 305 meters to monitor
- Connector: Miniature ClickLoc (Option 02)
- Monitor: Use with 3300 XL NSv Proximitor
Model Breakdown
- 330906: Main model
- 02: Standard unthreaded length
- 12: Case length = 120 mm
- 50: Cable length = 5.0 meters
- 02: Miniature ClickLoc connector
- CN: Country-specific approvals
