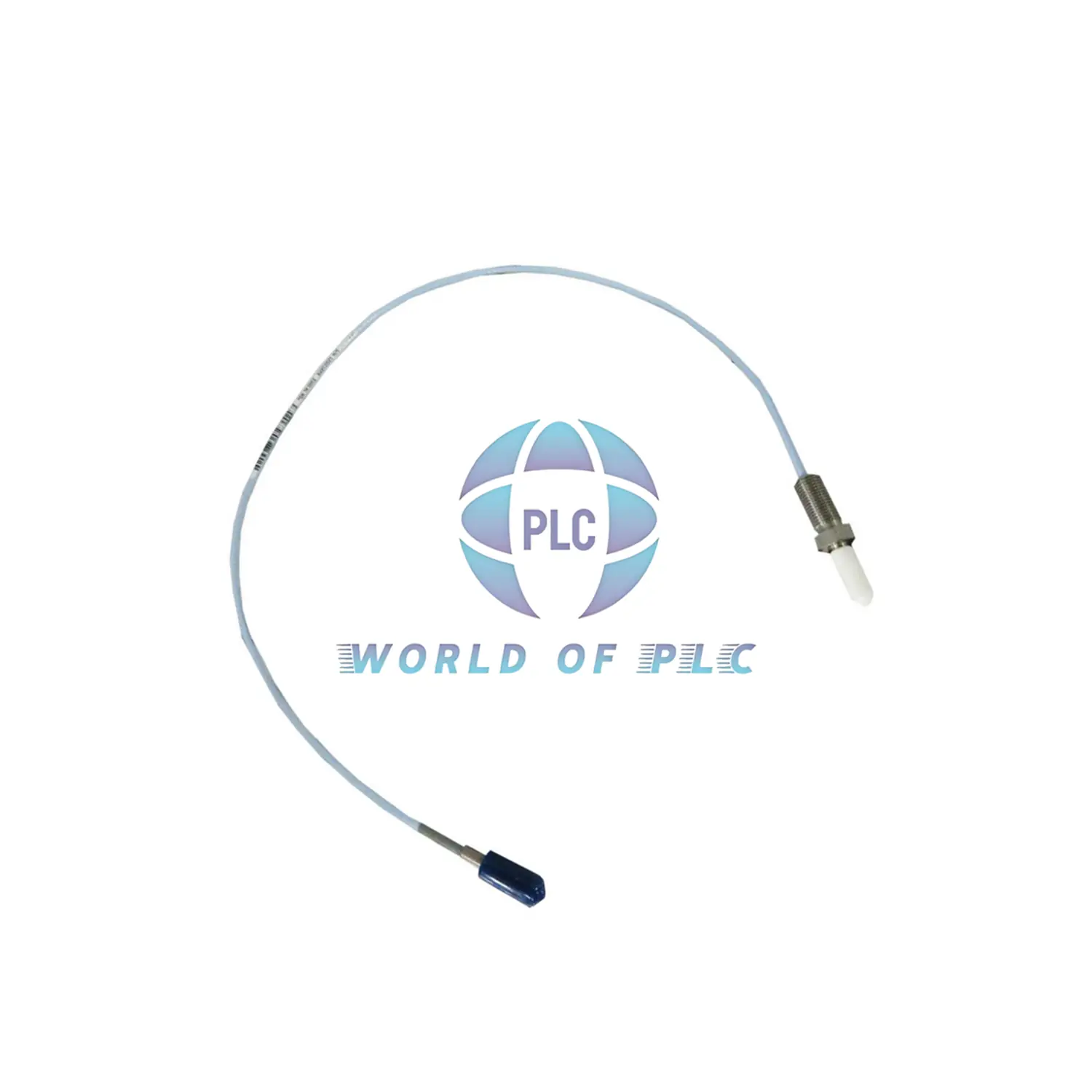

Bently Nevada 330906-02-12-70-02-CN Reverse Mount Probe

Product Summary

The Bently Nevada 330906-02-12-70-02-CN is a reverse mount probe from the 3300 NSv series. It is built for small machinery and limited mounting areas. This model offers enhanced chemical resistance and stable performance in harsh conditions. It is ideal for compressors and rotating machinery.

Technical Specifications

• Total Length: 7.0 meters (23.0 feet)
• Output Voltage: Approx. -1 to -13 VDC
• Linear Range: 0.25 mm to 1.75 mm (10 to 70 mils)
• Recommended Gap: 1.0 mm (40 mils)
• DC Resistance: 5.9 ± 0.9 ohms

Torque Specs

• Max Torque: 33.9 N·m (300 in·lb)
• Recommended Torque: 11.3 N·m (100 in·lb)

Wiring and Connection

• Connector Type: Miniature coaxial ClickLoc
• Wire Size: 0.2 to 1.5 mm² (16 to 24 AWG)
• Recommended Cable: 3-conductor shielded triad
• Max Cable Length: 305 meters (1000 feet)

Shipping and Warranty

• 12-month product warranty
• Original packaging included
• Ships via FedEx, UPS, or DHL

Model Suffix Tree Structure

• 330906: NSv Reverse Mount Probe Series
• 02: Unthreaded length option
• 12: Overall case length = 120 mm
• 70: Total length = 7.0 meters
• 02: Coaxial ClickLoc connector
• CN: Country-specific approval
