3300 XL 25 mm Bently Nevada 330851-02-000-040-90-00-00 | Proximity Probe

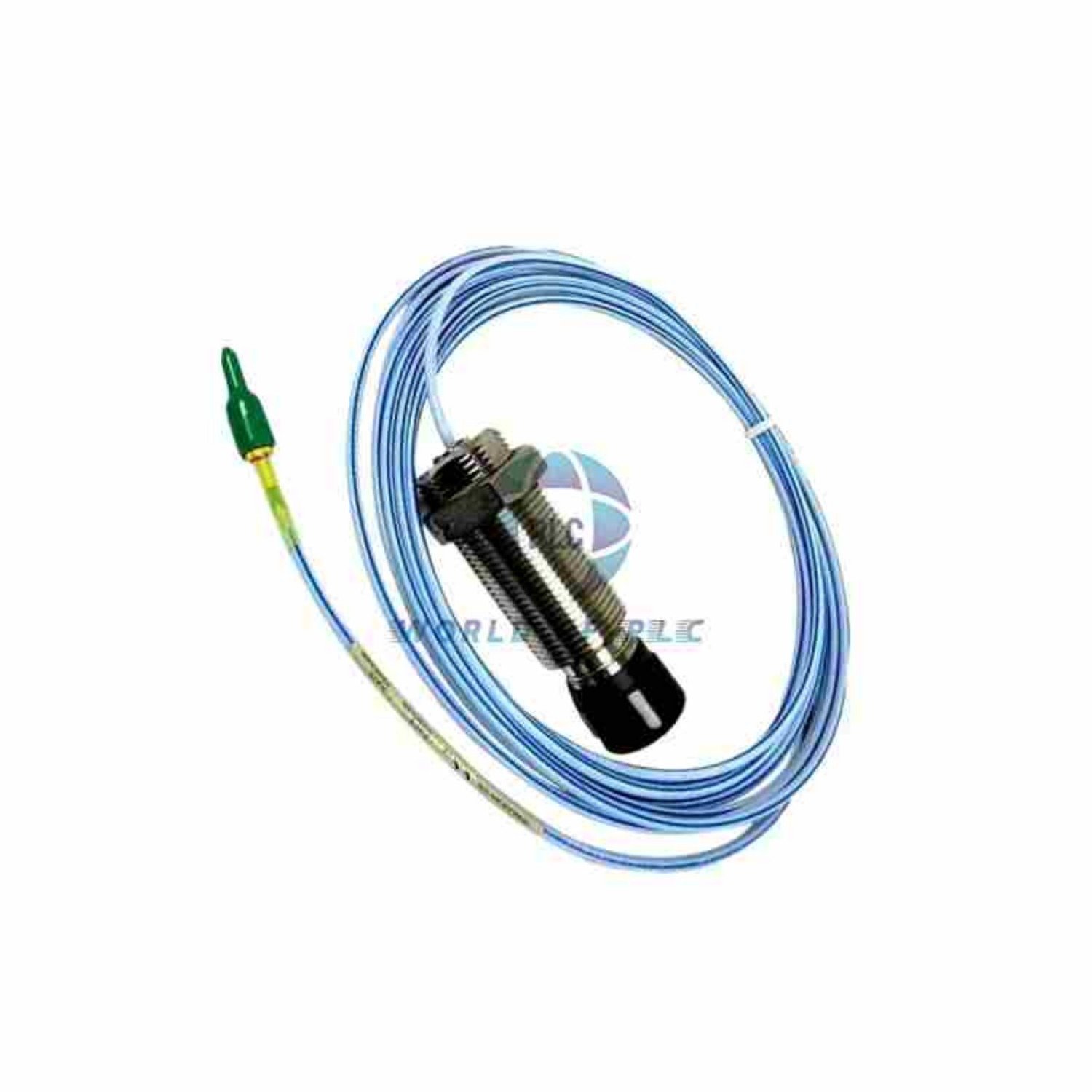

Bently Nevada 3300 XL 25mm Proximity Probe

Core Features

330851-02-000-040-90-00-00:Industrial-grade 25mm displacement sensor for extreme environments. Built with PEEK tip and 304 SST casing. Operates continuously at 200°C (392°F), withstands 250°C (482°F) for 24h. Replaces 7200-series probes.

Model Suffix Decoded

330851-02-000-040-90-00-00 details:

• 02: M30x2 threaded case
• 000: 0″ unthreaded length
• 040: 40mm case length
• 90: 9.0m cable (29.5ft)
• 00: No armor
• 00: No agency approvals

Technical Data

• Brand: Bently Nevada
• Accuracy: 8.8Ω ±1.1Ω (9m cable)
• Output: 75Ω triaxial signal
• Temp Range: -35°C to +200°C
• Weight: 230g (8.1oz, no armor)

Installation

Max torque: 163 N•m (use 68 N•m recommended). M30x2 threaded mounting.

Compatibility

Direct replacement for 7200 25mm/35mm probes and DE Integral systems. Supports side/rear exit configurations.

Certificated

• FCC Part 15
• EN 61000-6-2/4
• RoHS
• ABS Maritime
