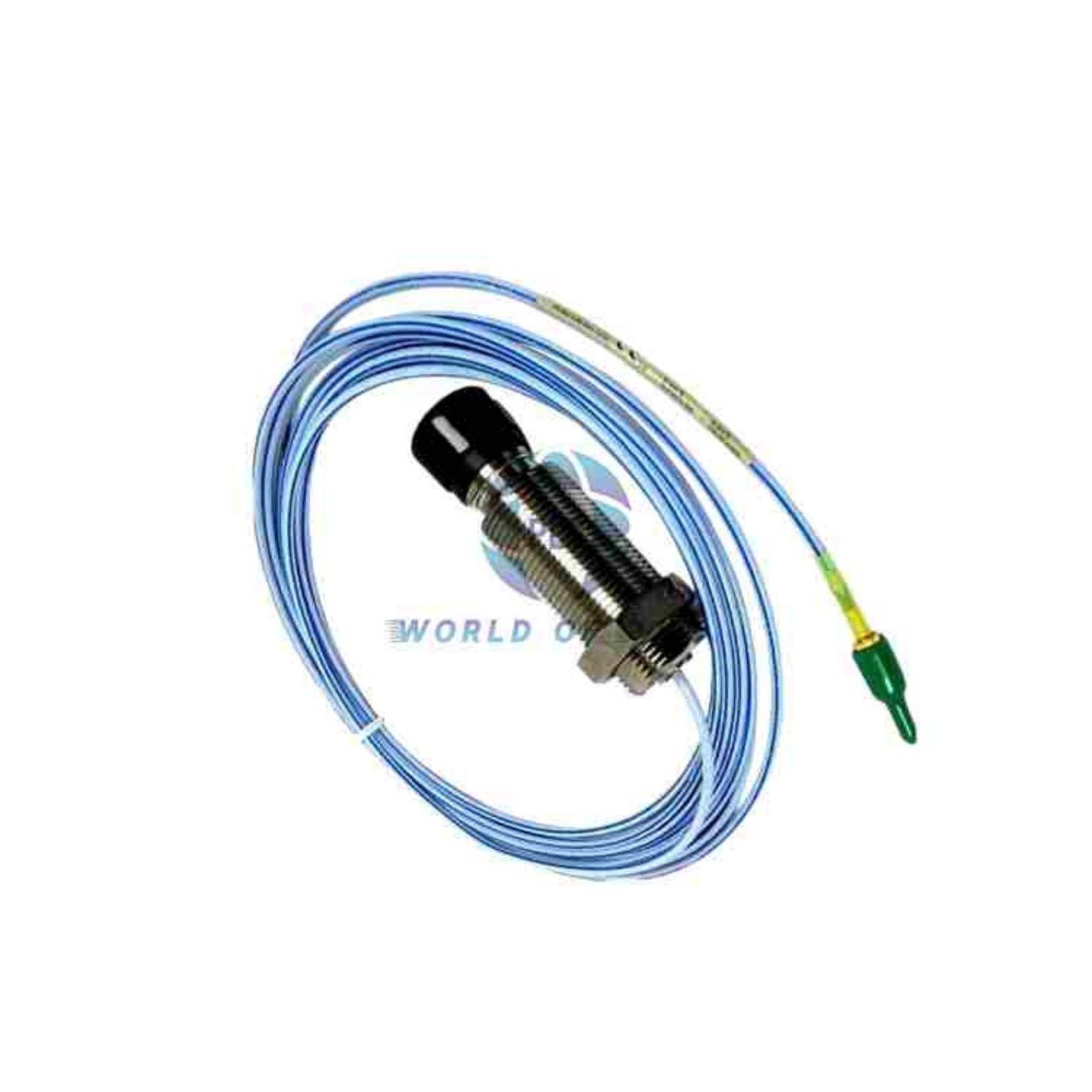

Bently Nevada 3300 XL 25mm Proximity Probe
Core Features
Industrial-grade 25mm displacement sensor (330851-02-000-050-50-00-CN) for extreme steam turbine environments. Built with PEEK tip and 304 SST casing. Operates continuously at 200°C (392°F), withstands 250°C (482°F) for 24h. Direct replacement for legacy 7200-series probes.
Model Suffix Decoded
330851-02-000-050-50-00-CN details:
- 02: M30x2 threaded case
- 000: 0″ unthreaded section
- 050: 50mm case length
- 50: 5.0m unarmored cable
- 00: No SST armor
- CN: Country-specific approvals
Technical Data
- Brand: Bently Nevada
- Accuracy: 7.5Ω ±0.8Ω (5m cable)
- Output: 75Ω triaxial signal
- Temp Range: -35°C to +200°C (continuous)
- Weight: 230g (8.1oz, no armor)
Installation
Max torque: 163 N•m (use 68 N•m recommended). Compatible with M30x2 threads.
Compatibility
Replaces 7200 25mm/35mm probes and DE Integral systems. Supports side/rear exit configurations.
Certificated
- FCC Part 15
- EN 61000-6-2/4
- RoHS
- ABS Maritime
- AEx/Ex ia IIC T1-T5
Applications
Ideal for steam turbine monitoring, high-pressure compressors, and marine propulsion systems. Ships globally via FedEx/UPS/DHL.
