3300 XL 25 mm Bently Nevada | Proximity Probe 330851-02-000-066-50-00-CN

Bently Nevada 3300 XL 25mm Proximity Probe: Extended Industrial Sensor

Description

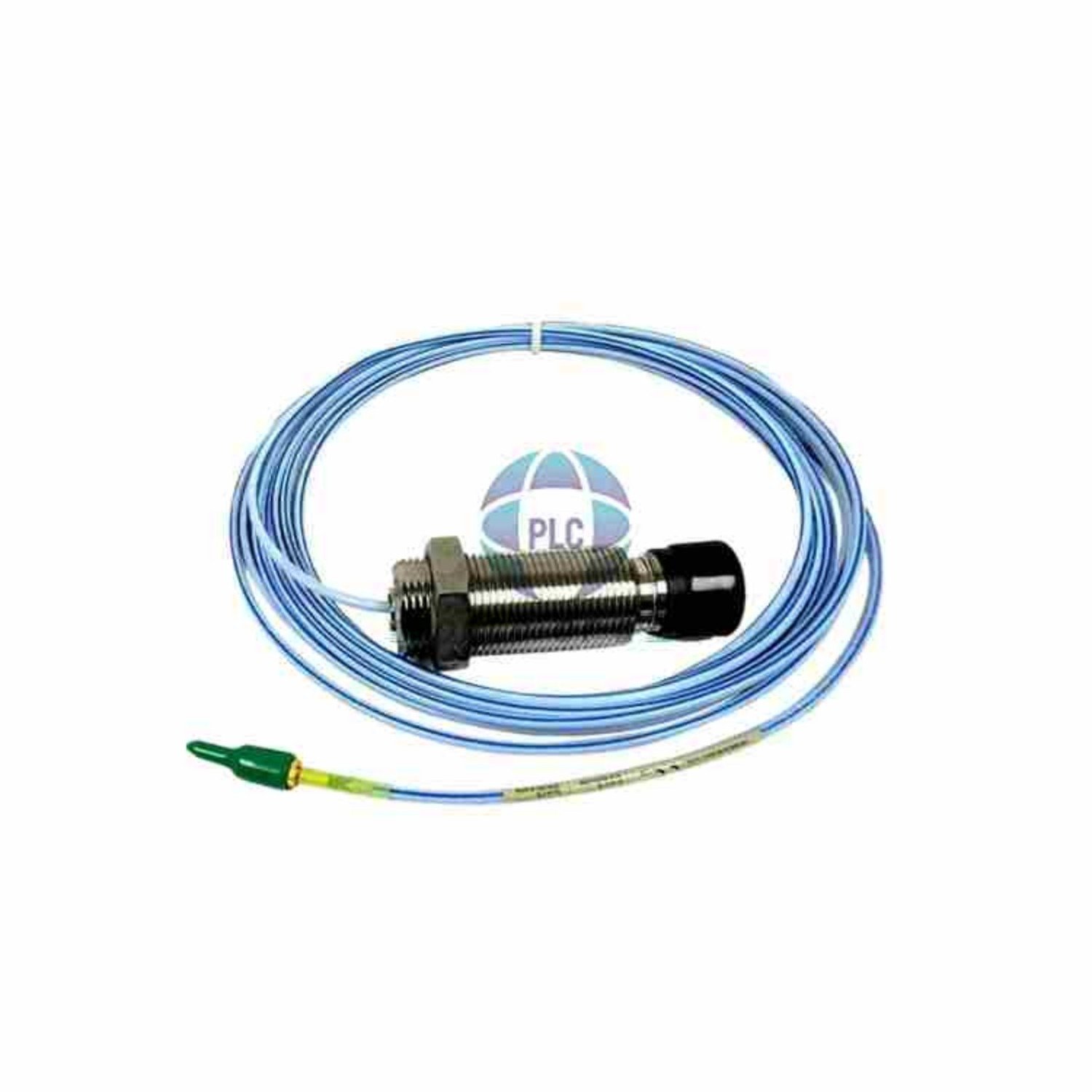

The Bently Nevada 330851-02-000-066-50-00-CN proximity probe features a 66mm stainless steel case for deeper steam turbine monitoring. With a PEEK tip and unarmored cable, it operates continuously at 200°C (392°F). Directly replaces 7200 series probes.

Technical Data

• Brand: Bently Nevada
• Model: 3300 XL 25mm | Full Suffix: 330851-02–000–066–50–00–CN
• Suffix Breakdown:
  • 02: M30x2 threaded case
  • 066: 66mm case length
  • 50: 5.0m (16.4ft) cable
  • 00: No cable armor
  • CN: Regional certifications
• Core Specs:
  • 7.5Ω ±0.8 resistance
  • Temperature: -35°C to +200°C (-31°F to 392°F)
  • 75Ω triaxial PFA FluidLoc® cable

Installation

• Torque: 68N·m recommended (163N·m max)
• Weight: 230g (8.1oz) with 1m cable

Certificated

• FCC Part 15
• EN 61000-6-2/4 EMC
• RoHS 2011/65/EU
• ABS Marine
• CN-specific approvals

Package Includes

• 1x Probe unit
• Installation guide
• Shipped via FedEx/UPS/DHL
