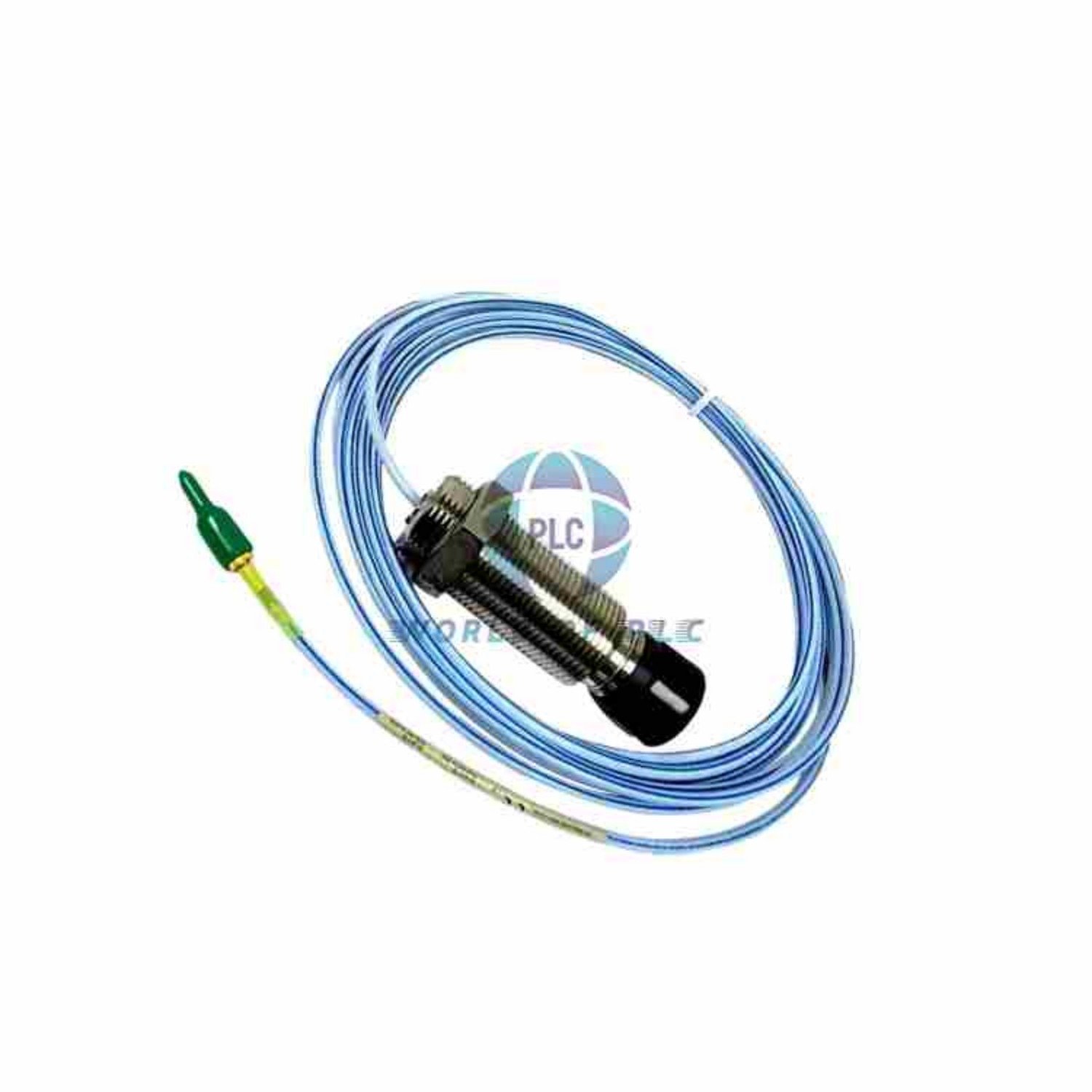

Bently Nevada 3300 XL 25mm Proximity Probe (Model: 330851-01-000-020-10-00-05)
⚡ Overview
330851-01-000-020-10-00-05 – Compact industrial sensor with 1 1/4-12 thread design and 20mm case. Features 1m FluidLoc® PFA cable and withstands 250°C thermal peaks. Direct replacement for 7200 series probes in steam turbines.
🔧 Model Configuration
| Code Segment | Technical Definition |
|---|---|
| 01 | 1 1/4-12 UNF Thread |
| 000 | Zero Unthreaded Length |
| 020 | 20mm Case Length |
| 10 | 1.0m (3.3ft) Cable |
| 00 | No Armor |
| 05 | Multi-Certified Configuration |
🔥 Thermal Performance
- Continuous: -35°C to +200°C
- Peak: 250°C (24hr max)
🔌 Electrical Specs
- 6.2Ω ±0.5 Resistance
- 75Ω Triaxial Output
⚙️ Installation Parameters
| Max Torque | 163 N·m (120 ft·lb) |
| Recommended Torque | 68 N·m (50 ft·lb) |
| Cable Type | FluidLoc® PFA Triaxial |
✅ Certificated
- FCC Part 15 Compliance
- EN 61000-6-2/4 EMC
- RoHS 2011/65/EU
- ABS Marine Certification
