Bently Nevada 11mm Short Cable Vibration Probe

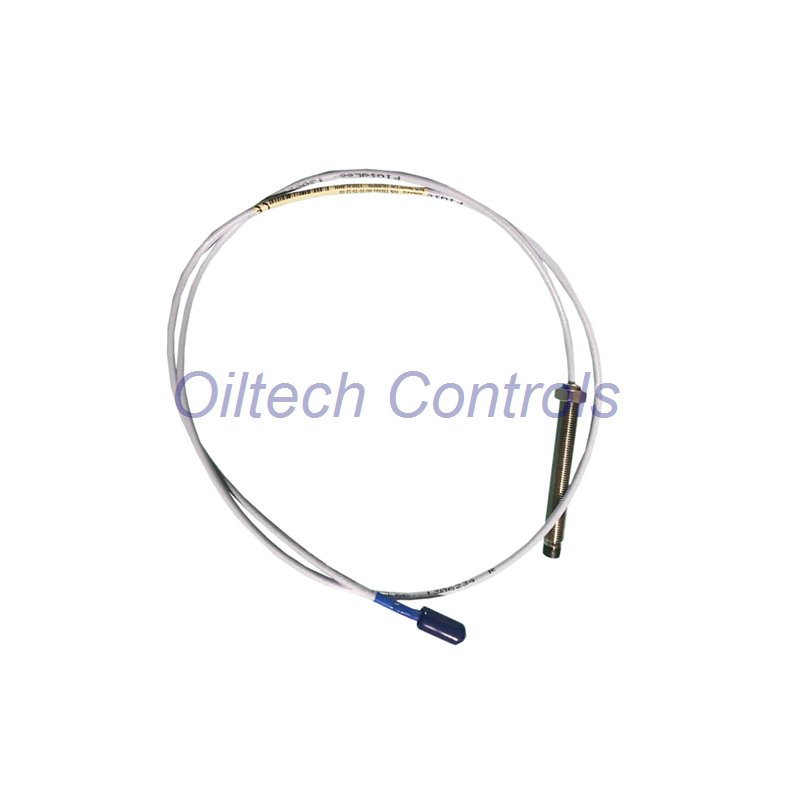

This is a genuine Bently Nevada 330702-00-26-10-02-00 proximity probe. It is part of the 3300 XL series. The probe has an 11mm diameter with stainless steel armor. Total cable length is 1.0 meter. Perfect for installations with limited space.
Key Product Features
- Short Cable: 1.0 meter length reduces field wiring.
- Standard Connector: Miniature ClickLoc for reliable connection.
- Robust Construction: 304 stainless steel armor protects the probe.
- Wide Temperature Range: Works in extreme environments.
- Easy Installation: Standard 1/2-20 UNF thread.
Complete Technical Specifications
- Brand & Model: Bently Nevada 330702-00-26-10-02-00
- Probe Series: 3300 XL 11mm
- Cable Length: 1.0 meter (3.3 feet)
- Mounting Thread: 1/2-20 UNF
- Connector Type: Miniature coaxial ClickLoc
- Probe Resistance: 5.9 ± 0.5 ohms
- Operating Temperature: -51°C to +177°C
- Storage Temperature: -52°C to +177°C
- Case Torque (Recommended): 15.2 N•m
- Connector Torque (Max): 0.565 N•m
- Cable Impedance: 75 Ω triaxial
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Probe Materials: PPS tip, 304 stainless steel case
- Sealing Material: Viton O-ring
- Shipping Weight: 0.17 kg
- Origin: Made in USA
Model Number Breakdown
- 330702: 11mm probe with armor
- -00: Unthreaded length = 0 inches
- -26: Case length = 2.6 inches
- -10: Cable length = 1.0 meter
- -02: ClickLoc connector, standard cable
- -00: No special approvals required
Package & Warranty
Each order includes one complete 330702-00-26-10-02-00 vibration probe. Comes with full 12-month product warranty. Worldwide shipping via FedEx, UPS, DHL.
Temperature Classifications
- T1 Class: -55°C to +232°C
- T2 Class: -55°C to +177°C
- T3 Class: -55°C to +120°C
- T4 Class: -55°C to +80°C
- T5 Class: -55°C to +40°C
Frequently Asked Questions
What applications need 1-meter cable length?
Perfect for installations where the junction box is very close. Common on pumps, motors, and small fans.
Difference between standard and FluidLoc cable?
Standard cable works in normal environments. FluidLoc has extra protection for oily or chemical areas.
What is the minimum safe operating temperature?
The probe works down to -51°C. But below -34°C, warm it up slowly to protect the seal.
Most important installation tip from experience?
Always maintain 1-inch minimum cable bend radius. Tight bends damage internal wires immediately.
How to check compatibility with my system?
Verify your monitor supports 3300 XL 11mm probes. Check for 1/2-20 UNF thread and ClickLoc connector.
How to choose the right cable length?
Measure from mounting point to junction box. Add 0.5 meter for routing. Send us your layout if unsure.
