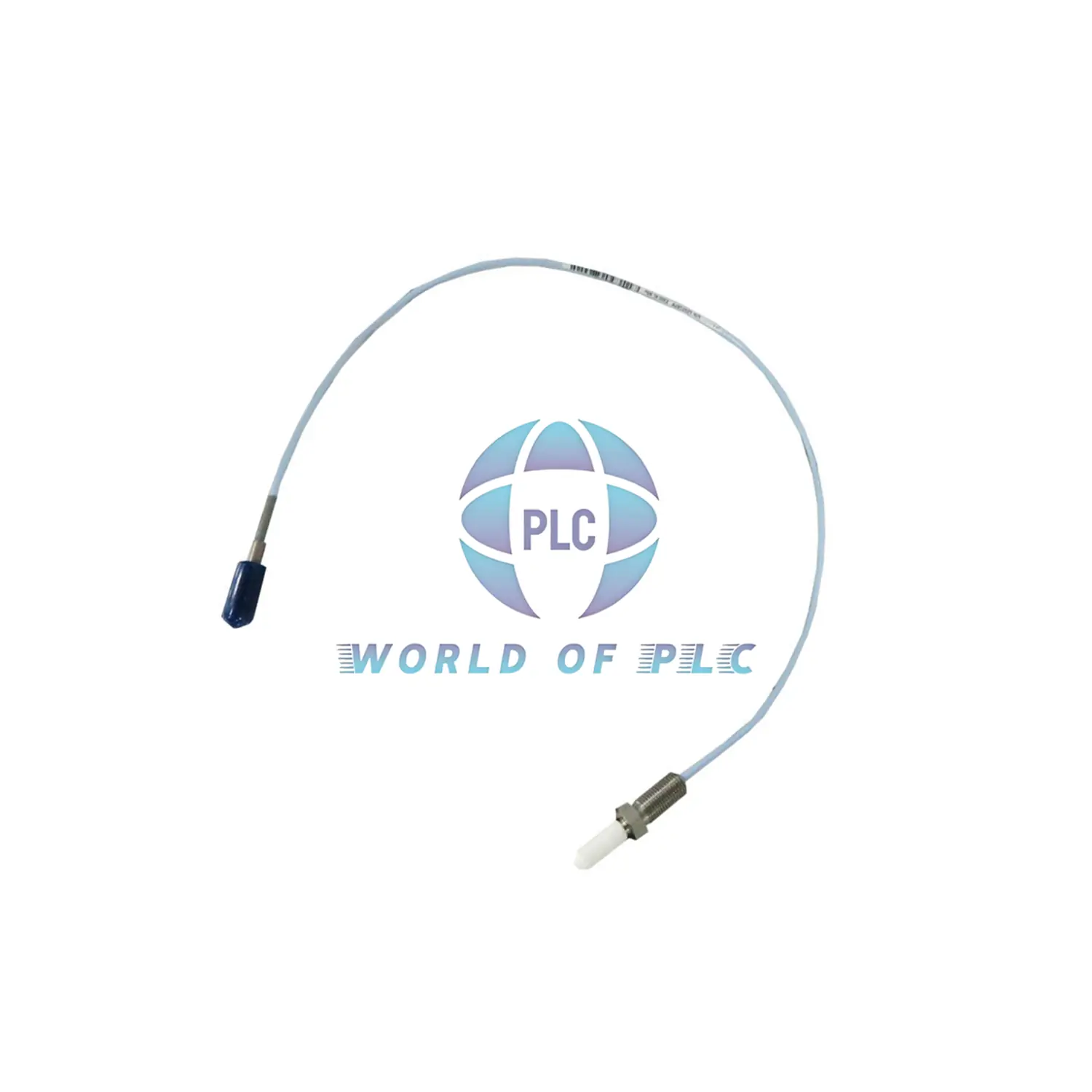

330101-00-15-20-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probe

Essential Features

Bently Nevada 3300 XL Probe (P/N: 330101-00-15-20-02-05) monitors machine health with 2.0m cable and 1.5-inch case. Includes 1-year warranty and explosion safety certifications.

Key Details For 330101-00-15-20-02-05

• Case length: 1.5 in (15 suffix) for tight spaces
• Thread type: 3/8-24 UNF (no armor)
• Probe resistance: 7.88Ω ±0.50 at 2.0m length
• Max cable run: 1,000ft stable signal
• Works in: -62°F to +500°F extremes

Built to Last

• 8mm PPS tip: 2x thicker than standard probes
• Stainless steel body: Resists rust and impacts
• CableLoc design: Holds 75lbs pull force
• Viton® seal: Blocks oil leaks (add FluidLock option)

Safe & Certified

• Approved for explosive zones (CSA/ATEX/IECEx)
• Tested in 93% humidity for 8 weeks
• Meets IEC 68-2-3 industry standards
• Warning: Avoid temps below -30°F

Easy to Use

• ClickLoc connector: No tools needed
• Free COO: Add certificate when ordering
• Weight: 11.4 oz per meter
• Linear range: 0.25-2.3mm (10-90 mils)
