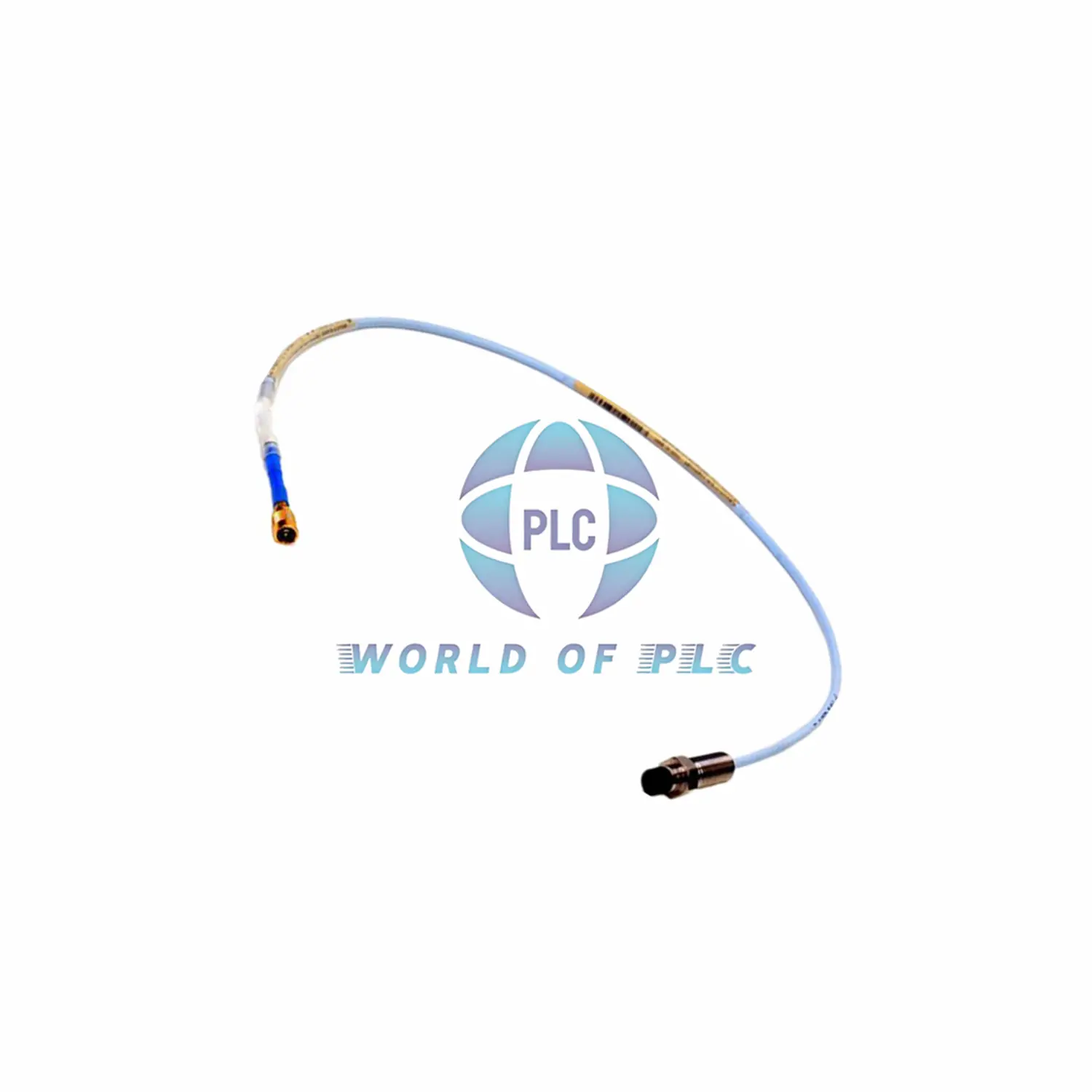

330101-00-27-10-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probe

Bently Nevada 330101 Probe: Quick Facts

Model 330101-00-27-10-02-05 is an 8mm industrial sensor with a 2.7″ stainless steel case. Built in USA. Explosion-proof (ATEX/IECEx certified). 1-year warranty included.

What the Numbers Mean

• -00: No threads (0.0″)
• -27: Case length = 2.7 inches
• -10: Cable = 3.3 feet
• -02: ClickLoc connector
• -05: Safe for explosive areas

Main Features

• Unbreakable tip: 8mm thick PPS plastic
• Cable won’t slip: Holds 75 lbs pull force
• Works in extreme heat/cold: -62°F to +425°F
• Stop oil leaks: Add FluidLock option

Easy Setup Guide

• Use 16-24 gauge wires
• Max cable run: 1,000 feet
• Best gap: 1.27mm (50 mils)

Why 330101-00-27-10-02-05 is Better

• Stainless steel body resists rust
• Seals pressure with Viton® O-ring
• Works in wet areas (3% max error)
• Free COO document available

Tech Specs Made Simple

• Power use: 7.59Ω ±0.5
• Measures movement: 0.25-2.3mm range
• Accuracy: ±5% in normal temps
• Weight: 11.4 oz per foot
