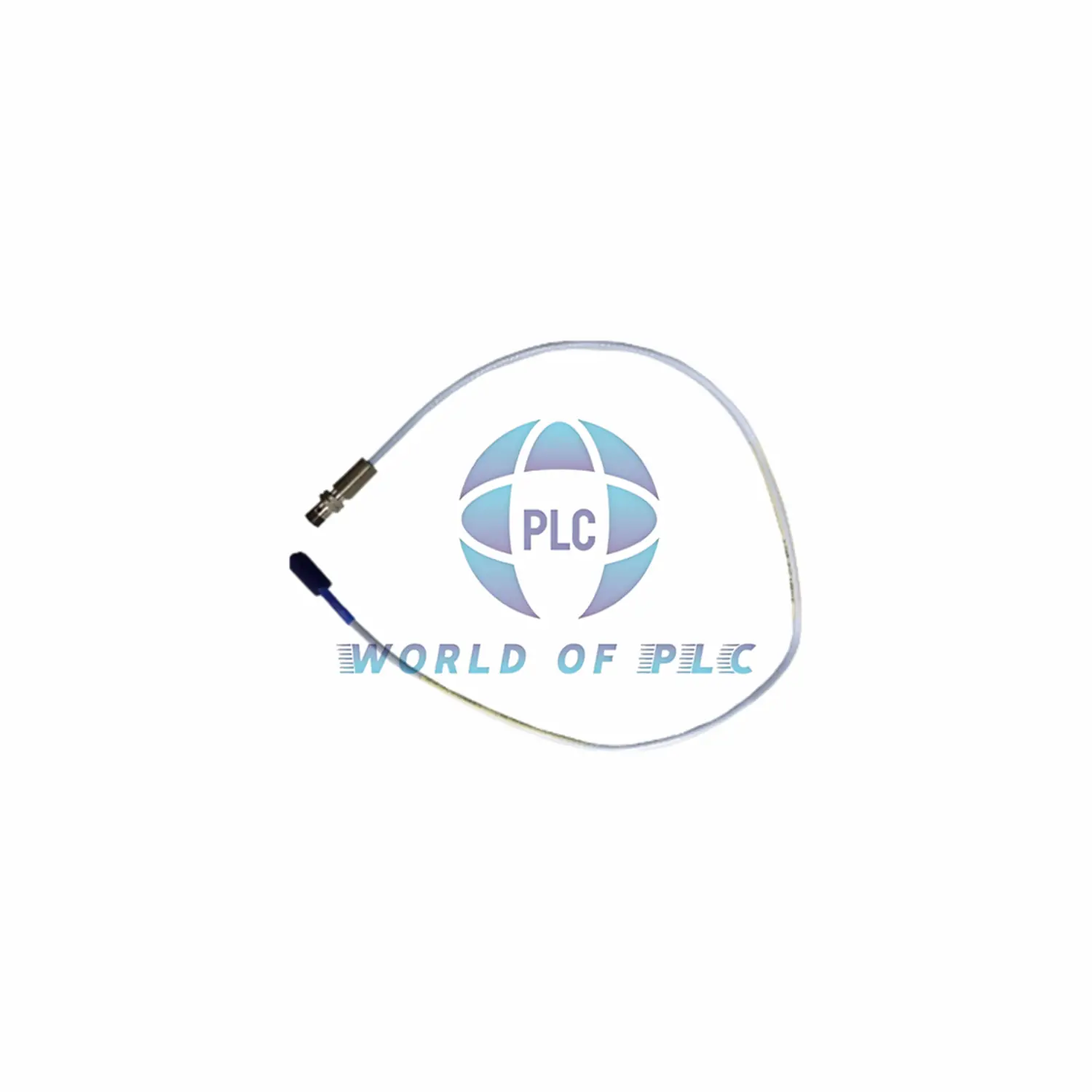

330101-00-67-10-12-CN | Bently Nevada 3300 XL 8 mm Proximity Probe

Why Choose This Probe?

The Bently Nevada 330101-00-67-10-12-CN combines a 6.7-inch stainless steel case with FluidLoc leak-proof cable. Designed for harsh environments with Country-Specific (CN) approvals. Includes 1-year warranty and COO available.

Model Number Guide

Decode 330101-00-67-10-12-CN:
✓ 67 = 6.7″ (170mm) case length
✓ 10 = 1.0m (3.3ft) cable
✓ 12 = ClickLoc + FluidLoc
✓ CN = Local compliance certified

Industrial-Grade Protection

• Stops leaks: FluidLoc blocks oil/coolant
• 75 lb grip: CableLoc anti-pull design
• Extreme temps: Works from -62°F to +500°F
• Chemical-proof: PPS plastic tip material
• Humidity tested: 93% RH for 56 days

Key Numbers

▶ Accuracy: ±5% at room temp
▶ Range: 0.25-2.3mm (0.01-0.09″)
▶ Weight: 11.4 oz/m (323g/m)
▶ Wiring: Up to 1000ft (305m)
▶ Resistance: 7.59Ω ±0.50

Installation Tips

• Use 3-core shielded cable (16-24 AWG)
• Keep gap setting at -9V (1.27mm/0.05″)
• Avoid temps below -30°F (-34°C)
• Contact us for custom pressure tests
