330101-32-53-10-02-00 | Bently Nevada 3300 XL Proximity Probe

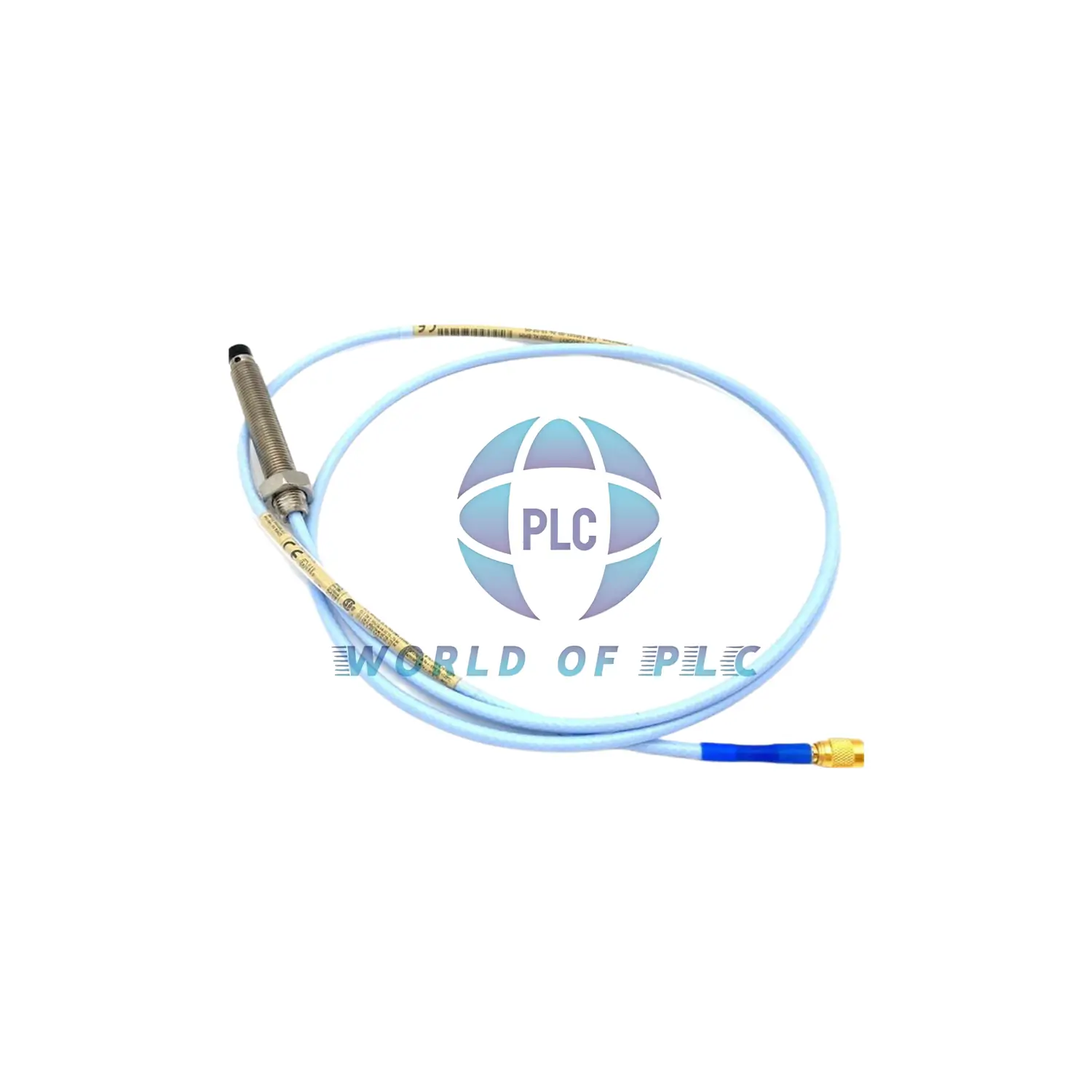

Bently Nevada 3300 XL 8mm Proximity Probe – Industrial Vibration Monitoring

 Product Overview

New U.S.-made vibration sensor with patented TipLoc and CableLoc technology for superior durability. Features 8mm corrosion-resistant probe tip and 330N (75 lbf) cable pull strength. Includes 12-month warranty.

 Technical Specifications

• Brand: Bently Nevada
• Model: 330101-32-53-10-02-00
• Suffix Breakdown:
  • Unthreaded Length: 32 (3.2 in)
  • Case Length: 53 (5.3 in)
  • Cable Length: 10 (1.0m/3.3 ft)
  • Connector: 02 (Miniature ClickLoc)
  • Agency: 00 (Not required)
• Measurement Range: 2mm (80 mils)
• Scale Factor: 7.87 V/mm ±5%
• Optimal Gap Setting: 1.27mm (50 mils)
• Thread Size: 3/8-24 UNF

 Rugged Design Features

• Patented TipLoc molding for tip-body bond
• CableLoc system withstands 330N pull force
• 8mm diameter for enhanced physical durability
• Optional FluidLoc leak prevention

 Environmental Ratings

• Operating Temp: -52°C to +177°C (-62°F to +350°F)
• Humidity: <93% change at 93% RH (56 days)
• Pressure Seal: Viton® O-ring design
• Chemical Resistance: Oils, acids, solvents

Package Contents

• 3300 XL 8mm probe
• 1.0m cable with ClickLoc connector

🔧 Installation Guide

1. Mount using 3/8-24 UNF threads
2. Set gap to 1.27mm (50 mils)
3. Connect ClickLoc connector securely
4. Verify output (-1 to -17 Vdc range)

FAQ

Q: Pressure rating?
A: Seals differential pressure (not pressure tested pre-shipment)

Q: Cold temperature warning?
A: Avoid below -34°C (-30°F) to prevent seal damage

Q: Cable options?
A: Standard cable – FluidLoc available for liquid environments
