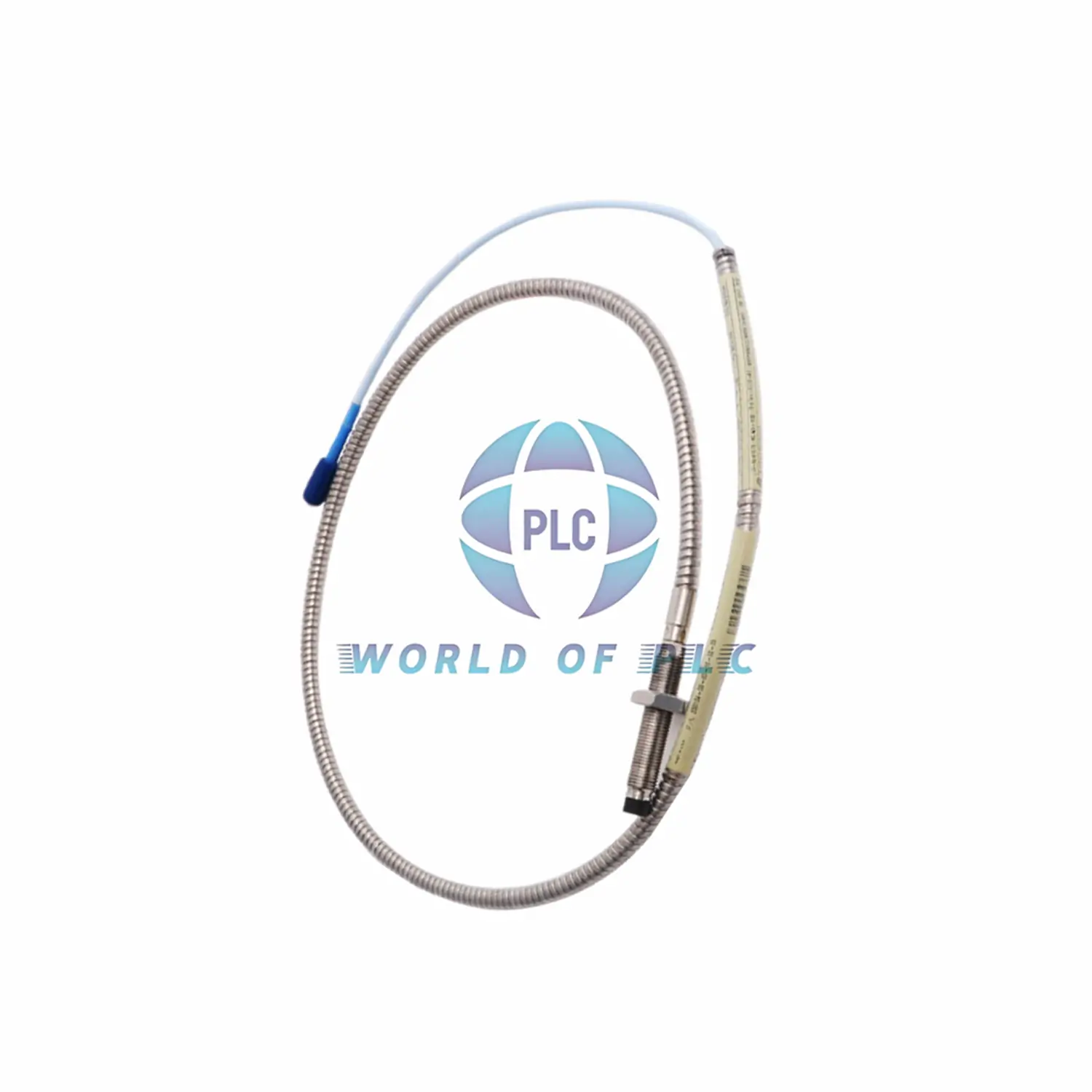

Bently Nevada 330104-01-05-50-01-00 Proximity Probe
Key Specifications
- Measures 0.25mm to 2.3mm
- Accuracy ±1% full scale
- Output -1V to -17V DC
- Cable resistance 8.73Ω ±0.50
- Works only with 5m Proximitor sensors
Model Breakdown (330104-01-05-50-01-00)
| Code | Value | Meaning |
|---|---|---|
| 330104 | Base | 8mm XL Probe |
| 01 | 10mm | Unthreaded Length |
| 05 | 50mm | Case Length |
| 50 | 5.0m | Cable Length |
| 01 | ClickLoc | Connector with Protector |
| 00 | Standard | No Special Approvals |
Technical Details
- Max wiring: 305 meters
- Thread: M10x1 (15mm max)
- Tip material: PPS plastic
- Case material: Stainless steel
- Seal: Viton O-ring
Temperature Range
- Operating: -52°C to +177°C
- Storage: -62°F to +350°F
- Avoid below -34°C for seal safety
Package Contents
- Probe sensor
- Connector with protector
- Mounting hardware
- Installation guide
- 12 month warranty
