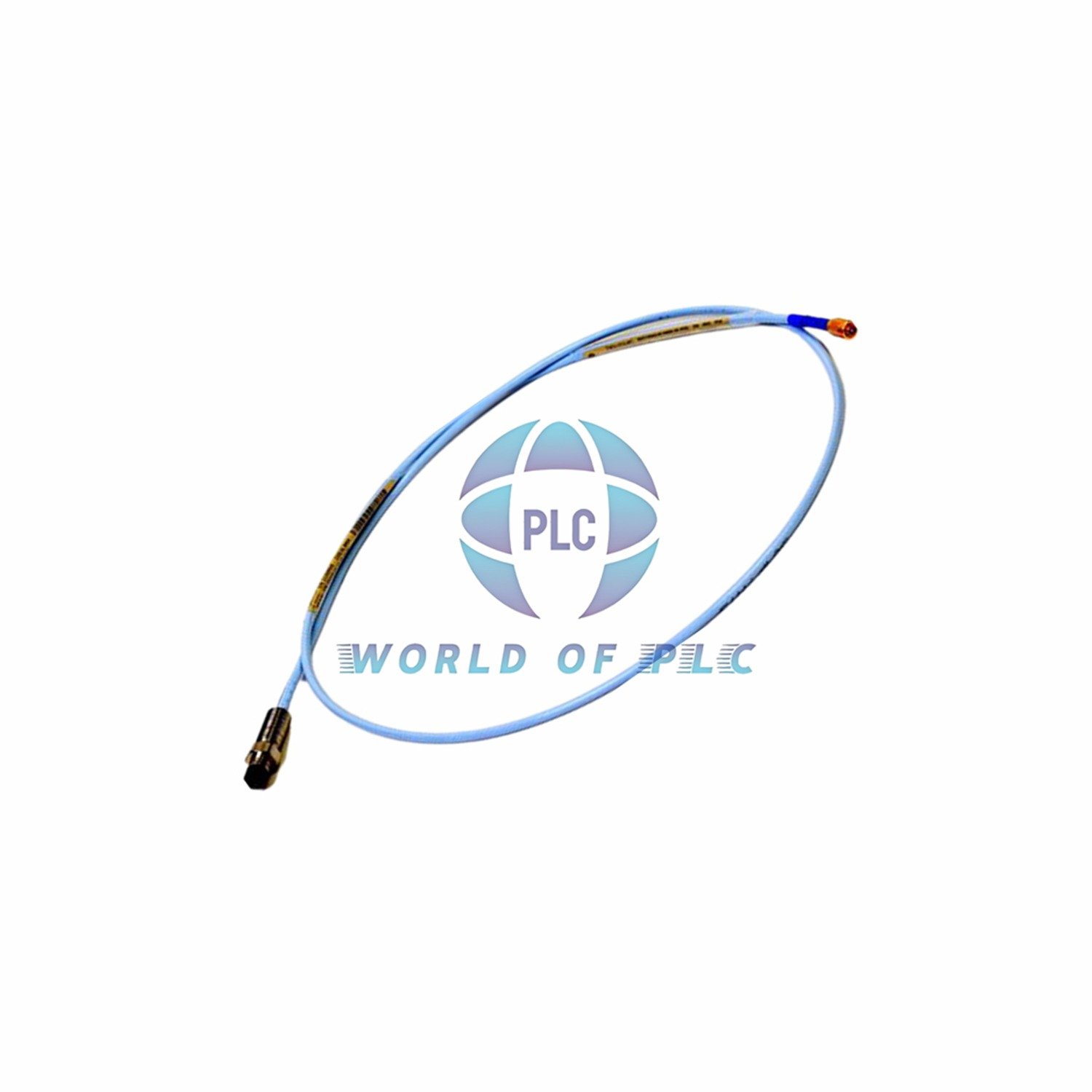

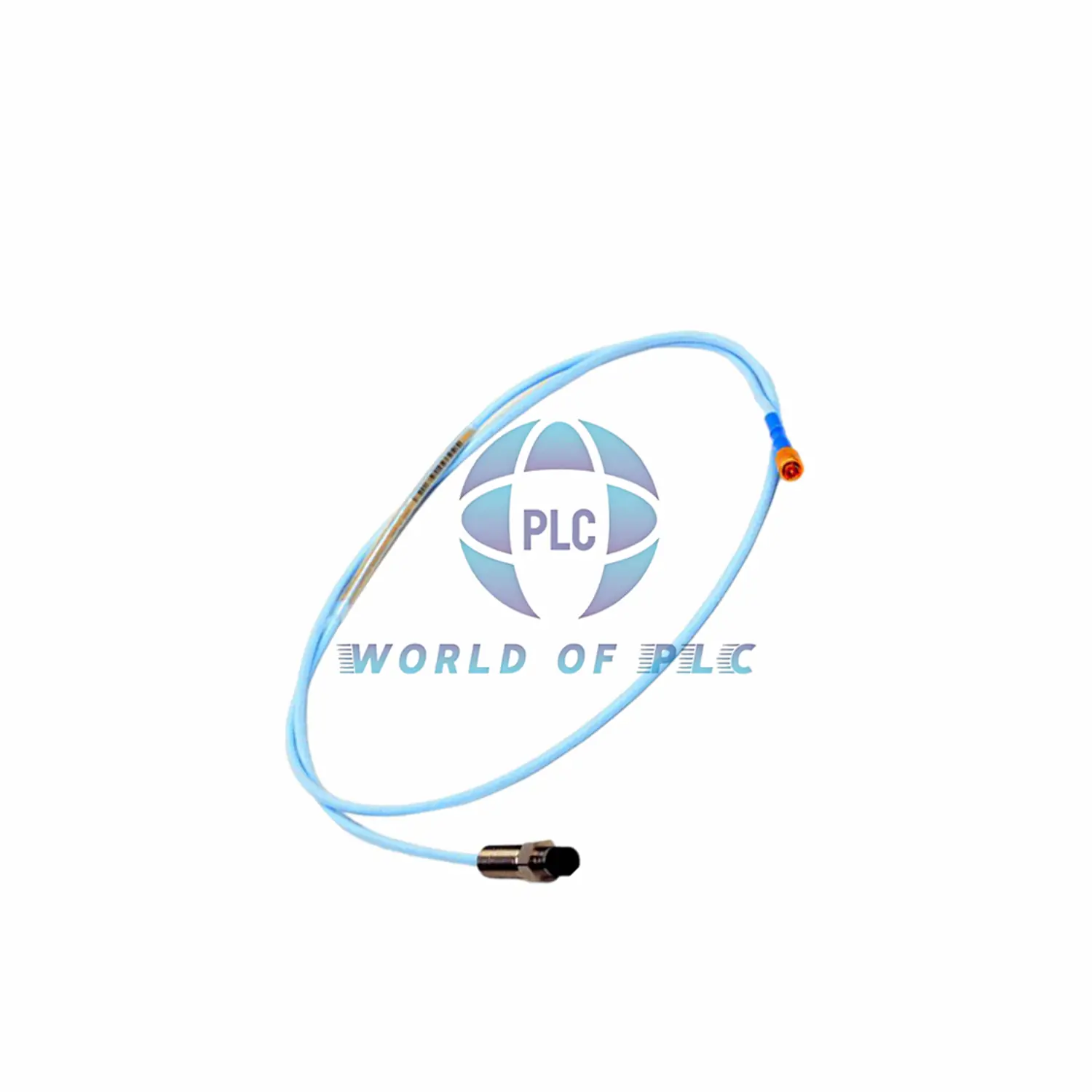

330105-02-12-90-02-CN | Bently Nevada | 3300 XL 8mm Reverse Mount Probe

🌍 Regional Compliance Monitoring Solution

Bently Nevada 330105-02-12-90-02-CN delivers 9.0m reach with country-specific certification (-CN). Features ±0.50Ω precision and ClickLoc connector. Includes 1-year warranty + COO option.

⚙️ Core Technical Data

• ▸ Resistance: 9.87Ω at 9m
• ▸ Cable Density: 323g/m (11.4oz/ft)
• ▸ Dimensions: 20.4×22.2×3.7cm
• ▸ Thread Spec: 3/8-24 (14.3mm grip)

🔥❄️ Dual-Mode Thermal Range

• Standard Use: -52°C to +177°C
• High-Performance Mode:
  • Probe Tip: +218°C peak
  • Cable System: +260°C maximum
  Warning: Seal failure below -34°C

📜 Compliance Documentation

• • -CN Code: Local regulatory approval
• • Hazard Zone Certified:
  ◈ Zone 0: AEx ia IIC T1-T5
  ◈ Zone 2: AEx ec/nA IIC
• • Humidity Endurance: 93% RH/56 days

🔠 Suffix Decryption Chart for 330105-02-12-90-02-CN

• ❶ -02-12: 8mm reverse probe
• ❷ -90: 9.0 meter cable
• ❸ -02: ClickLoc interface
• ❹ -CN: Regional compliance

Document Download Here: 3300 XL 8 mm Proximity Transducer System Datasheet
