Bently Nevada 330106-05-30-30-12-05 Reverse Mount Probe | 3300 XL 8 mm Series
Product Overview

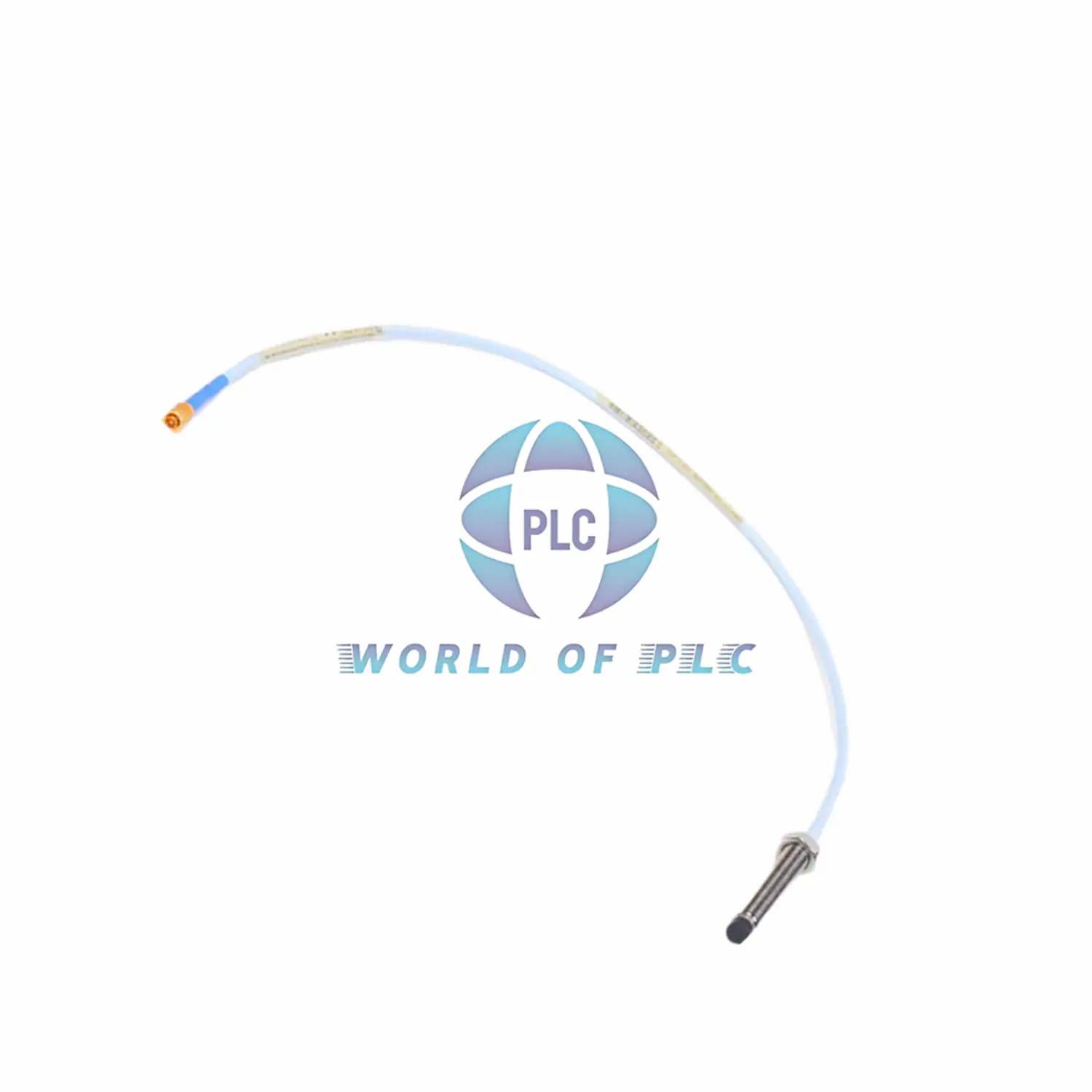

Made in the USA, the Bently Nevada 330106-05-30-30-12-05 is a reverse mount proximity probe. It is part of the trusted 3300 XL 8 mm series, built for high-precision vibration monitoring in harsh industrial environments.
Technical Parameters
- Thread Size: M10 x 1
- Total Probe Length: 3.0 meters
- DC Resistance: 8.17 ± 0.50 Ohms
- Output Signal: Proportional voltage signal (through Proximitor)
- Temperature Range:
- Standard: -52°C to +177°C
- Extended: -52°C to +218°C (tip), -51°C to +260°C (cable)
- Humidity Resistance: ≤3% ASF drift at 93% RH over 56 days
- Connector Type: Miniature ClickLoc with FluidLoc cable
- Cable Type: 75Ω triaxial, FEP or PFA insulated
- Max Thread Engagement: 15 mm
- Tensile Strength:
- Probe case to lead: 330 N
- Lead to extension cable: 270 N
- Agency Approvals: CSA, ATEX, IECEx
Installation Guide
- Ensure M10x1 threaded mount is clean and free of oil
- Do not overtighten; max engagement is 15 mm
- Route cable away from high EMI zones
Compatibility
- Compatible with Bently Nevada 3300 XL Extension Cables and Proximitor Sensors
- Works with most fluid-sealed environments
Warranty and Shipping
- Warranty: 12 months replacement policy
- Shipping: FedEx, UPS, DHL worldwide
Model Code Breakdown
- 330106 = Reverse Mount Probe
- 05 = 5 mm tip
- 30 = 3.0 meters length
- 30 = Standard cable option
- 12 = ClickLoc connector with FluidLoc cable
- 05 = CSA, ATEX, IECEx approved
Additional Parameters
- Probe Mass: Approx. 323 g/m
- Tip Material: Polyphenylene Sulfide (PPS)
- Case Material: AISI 303 or 304 Stainless Steel
- Seal Type: Viton O-ring (differential pressure resistant)
- Connector Material: Gold-plated brass or beryllium copper
