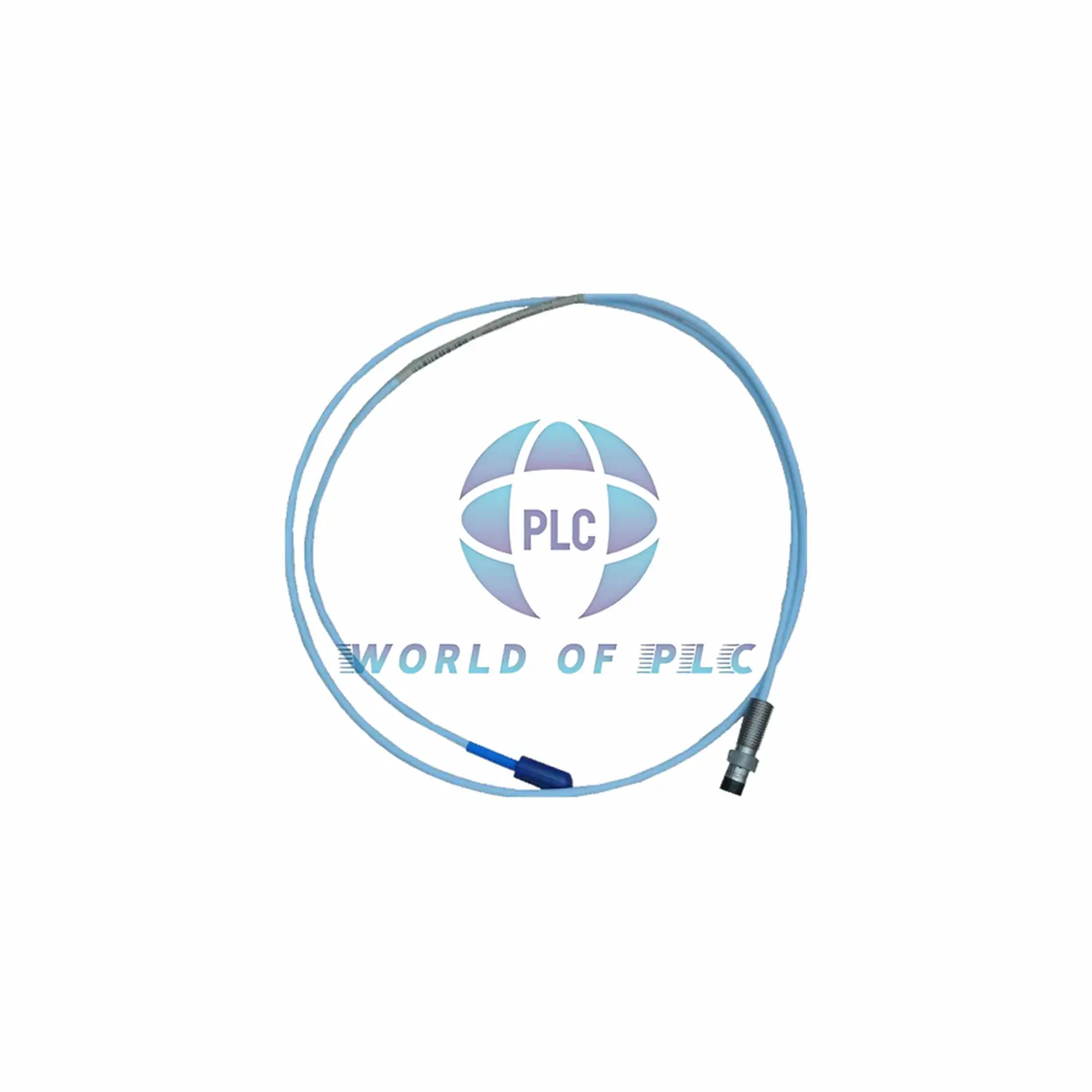

Bently Nevada 330106-05-30-90-12-CN 3300 XL 8 mm Reverse Mount Probe

Basic Product Information

• Model Number: 330106-05-30-90-12-CN
• Thread Type: M10 x 1
• Total Length: 9.0 meters (29.5 feet)
• Connector Option: Miniature ClickLoc with FluidLoc cable
• Agency Approval: CN = Country Specific
• Tip Material: PPS (Polyphenylene sulfide)
• Case Material: AISI 303 or 304 stainless steel
• DC Resistance: 9.87 ± 0.50 ohms

Temperature Ratings

• Standard Probe: -52°C to +177°C
• Extended Tip: -52°C to +218°C
• Extended Cable: -51°C to +260°C
• Minimum Safe Temp: Do not use below -34°C

Mounting Instructions

• Install in M10 x 1 threaded port
• Thread depth max: 15 mm
• Clean mounting area before install

Extra Specifications

• Weight: 323 g/m (11.4 oz)
• Pressure Seal: Viton O-ring (not pressure tested)
• Humidity Test: Less than 3% ASF change after 56 days at 93% RH

Model Tree Structure

• 330106: 8 mm reverse mount probe
• 05: Cable type for 9 m length
• 30: Standard steel target support
• 90: Total probe length 9.0 m
• 12: Mini ClickLoc connector with FluidLoc cable
• CN: Country-specific agency approval
