330140-08-50-02-00 | Bently Nevada 3300 XL 8 mm Probe Without Armor

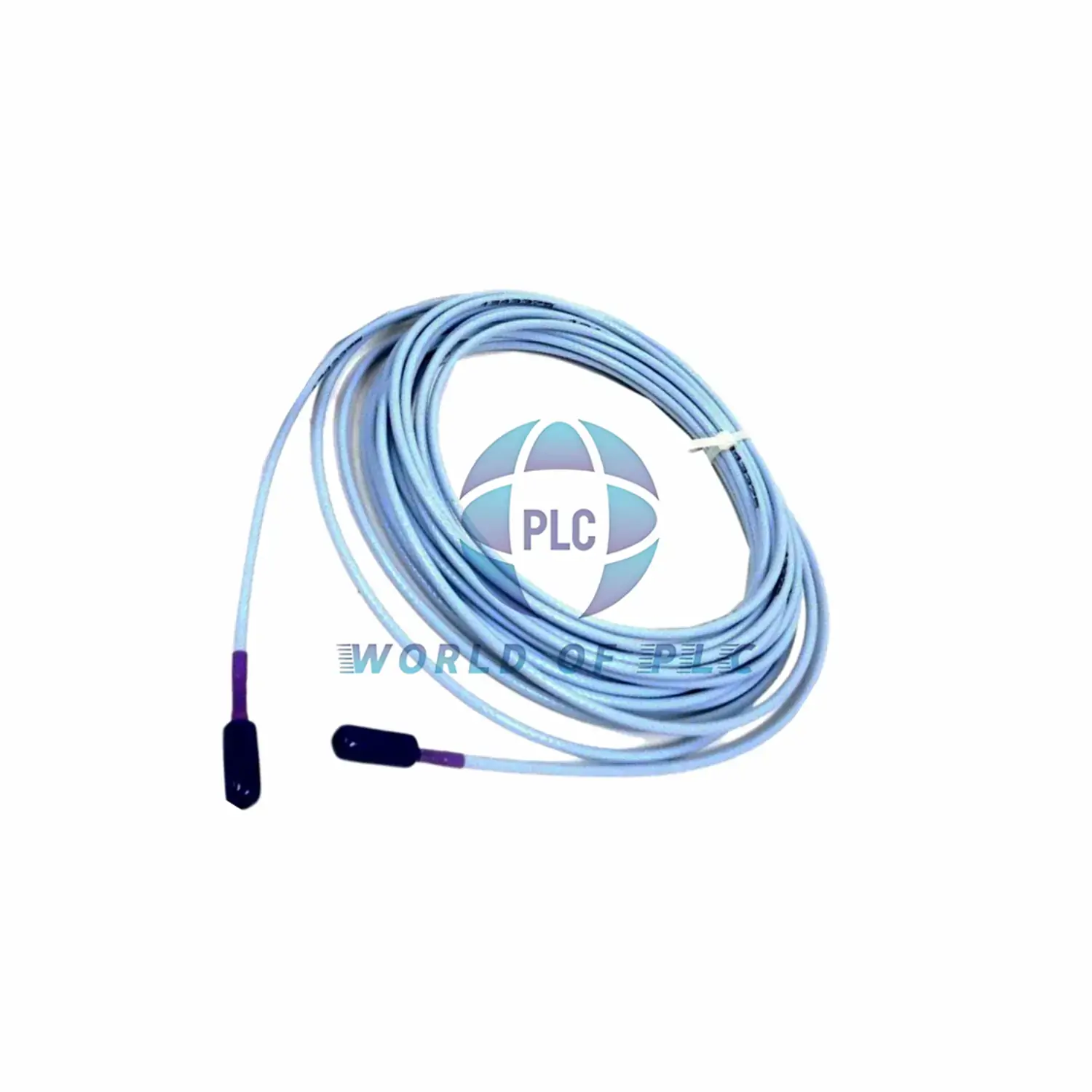

Bently Nevada 3300 XL 8 mm Probe (Model 330140-08-50-02-00)

🛡️ Rugged Industrial Sensor Solution

3300 XL 8 mm probes feature 8.73Ω ±0.5 DC resistance and 330N (75 lbf) CableLoc pull strength for vibration monitoring in extreme conditions. Includes 1-year warranty and optional Certificate of Origin (COO).

🔑 Suffix Code Breakdown: 330140-08-50-02-00

• 08: 0.8-inch stainless steel case
• 50: 5.0m cable (16.4 ft) for 5m Proximitor systems
• 02: ClickLoc connector without protector
• 00: No agency certifications required

⚡ Enhanced Physical Durability

• Tip Design: 8mm PPS plastic encapsulation
• Case Material: AISI 303/304 stainless steel
• FluidLoc Option: Prevents oil ingress (add-on)
• Weight: 323g/m (11.4 oz/ft) with Viton® O-ring seal

🎯 Precision Performance Metrics

• Scale Factor: 7.87 V/mm ±5% @0-45°C
• Linearity: ±0.025mm deviation over 80 mil range
• Humidity: <3% ASF change @93% RH (56 days IEC 68-2-3)

🌡️ Extreme Temperature Resilience

• Standard Operation: -52°C to +177°C (-62°F to +350°F)
• Extended Tip Rating: Survives +218°C (+425°F)
• Cable Limit: +260°C (+500°F) max exposure
• Cold Warning: Avoid <-34°C (-30°F) to protect seals

⚠️ Critical Installation Requirements

• Pressure Testing: Mandatory post-installation
• Cable Handling: Minimum 25mm bend radius
• Compatibility: Designed exclusively for 5m Proximitor sensors
