330140-08-50-02-05 | Bently Nevada 3300 XL 8 mm Probe Without Armor

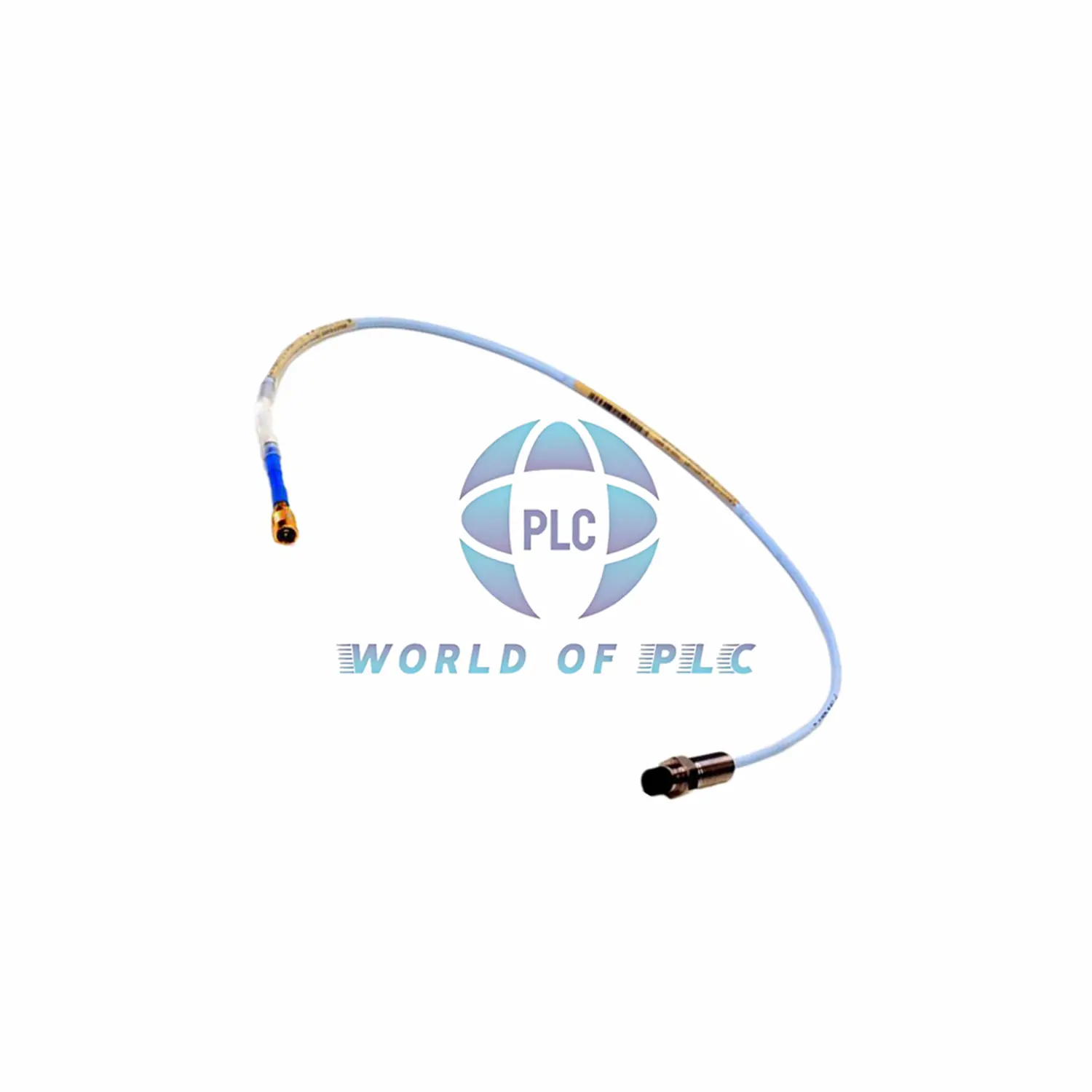

Bently Nevada 3300 XL 8 mm Probe (Model 330140-08-50-02-05)

🔥 Hazardous Environment Certified

3300 XL 8 mm probes combine CSA/ATEX/IECEx certifications (Agency Option 05) with 8.73Ω ±0.5 DC resistance for explosive atmosphere compliance. Features 330N CableLoc pull strength and 1-year warranty with optional FluidLoc leak prevention.

🔍 Suffix Decoder: 330140-08-50-02-05

• 08: 0.8-inch rugged SST case
• 50: 5.0m (16.4ft) 5m Proximitor-exclusive cable
• 02: ClickLoc connector without protector
• 05: Certified for Zone 1/21 & Class I Div 2

🛡️ Dual-Protection Engineering

• TipLoc Molding: PPS plastic tip with 8mm encapsulation
• Seal System: Viton® O-ring + stainless steel AISI 303/304 case
• Humidity Resistance: <3% ASF drift @93% RH (IEC 68-2-3)
• Weight: 323g/m (11.4 oz/ft) industrial-grade build

🎚️ Precision Calibration

• ISF Accuracy: 7.87 V/mm ±5% @0-45°C
• Linear Deviation: ±0.025mm over 80 mil range
• Extended Temp Performance: Maintains ±6.5% accuracy in ETR mode

🌡️ Thermal Endurance Profile

• Probe Tip: -52°C to +218°C (-62°F to +425°F)
• Cable/Connector: Survives +260°C (+500°F) peaks
• Critical Alert: Seal damage risk below -34°C (-30°F)

⚠️ Mandatory Compliance Notes

• Pressure Testing: Required post-installation (non-factory tested)
• Cable Management: 25mm minimum bend radius
• COO Availability: Certificate of Origin upon request
