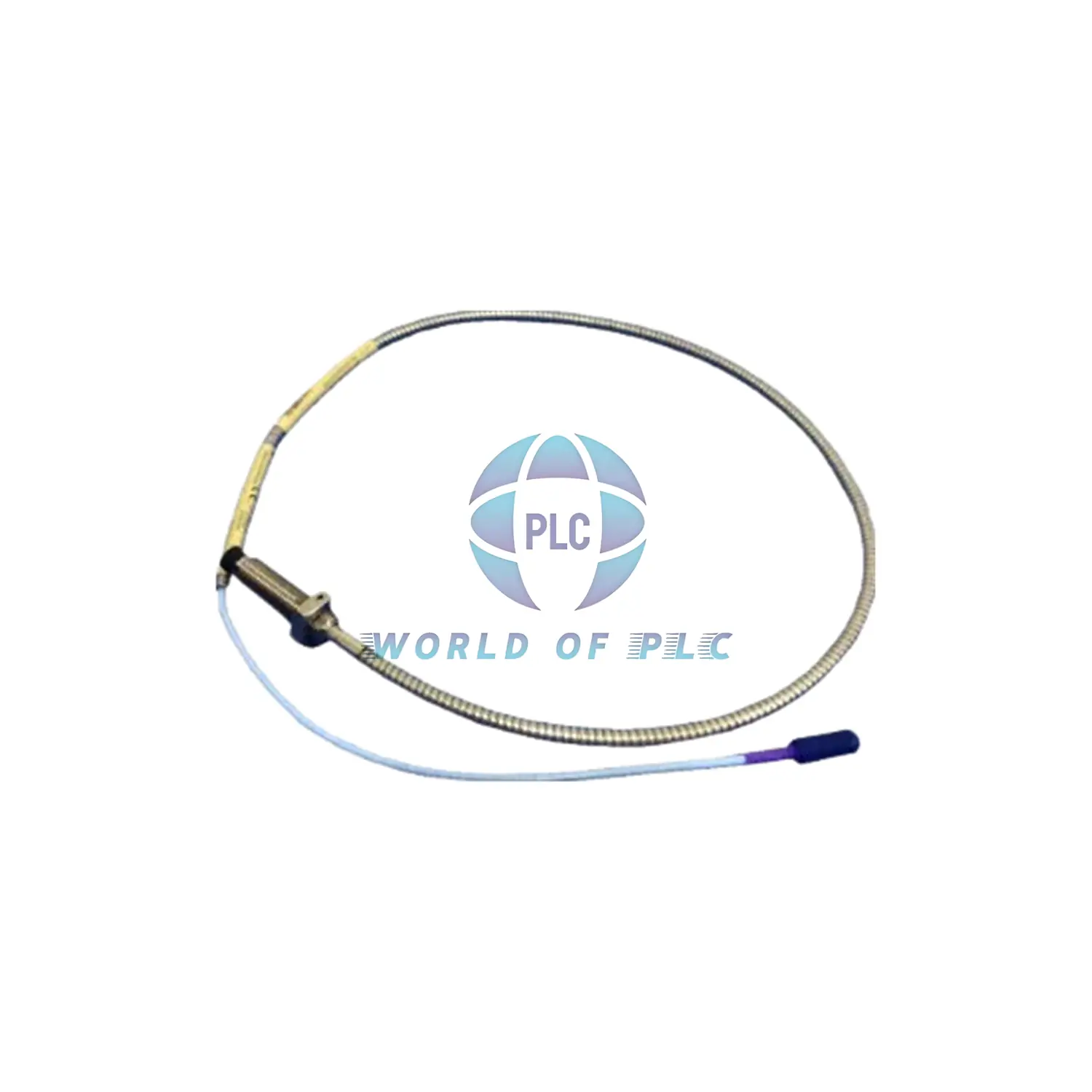

330702-00-10-90-01-00 | Bently Nevada 11 mm Proximity Probe

Bently Nevada 330702-00-10-90-01-00 – 9M Proximity Probe

Key Features

• ⚡ 11mm vibration sensor with extra-long 9m cable
• ⚡ Stainless steel body with PPS tip
• ⚡ Works in extreme temps (-51°C to +177°C)
• ⚡ ClickLoc connector for secure connection
• ⚡ 1/2-20 UNF threaded mounting

Product ID Breakdown

• ├─ 330702 → 3300 XL 11mm Probe
• ├─ 00 → 0″ unthreaded section
• ├─ 10 → 1.0″ case length
• ├─ 90 → 9.0 meter cable
• ├─ 01 → Standard cable with ClickLoc
• └─ 00 → No special approvals needed

Technical Details

• Cable Length: 9.0 meters (29.5 feet)
• Resistance: 8.5Ω ±1.1Ω
• Max Torque: 45.2 N•m (400 in•lb)
• Bend Radius: Minimum 25.4mm
• Cable Type: 75Ω triaxial FEP
• Weight: 0.17 kg

Common Questions

• How long is the cable? 9 meters (29.5 feet)
• What’s the temperature limit? Works from -51°C to +177°C
• Is it waterproof? Yes, with Viton O-ring seal
• How to connect it? Use finger-tight ClickLoc connector
• What thread size? 1/2-20 UNF or M16x1.5

Package & Support

• 🔹 12-month quality guarantee
• 🔹 Fast worldwide shipping
• 🔹 Made in USA
