330702-00-24-50-11-00 | Bently Nevada 11 mm Proximity Probe

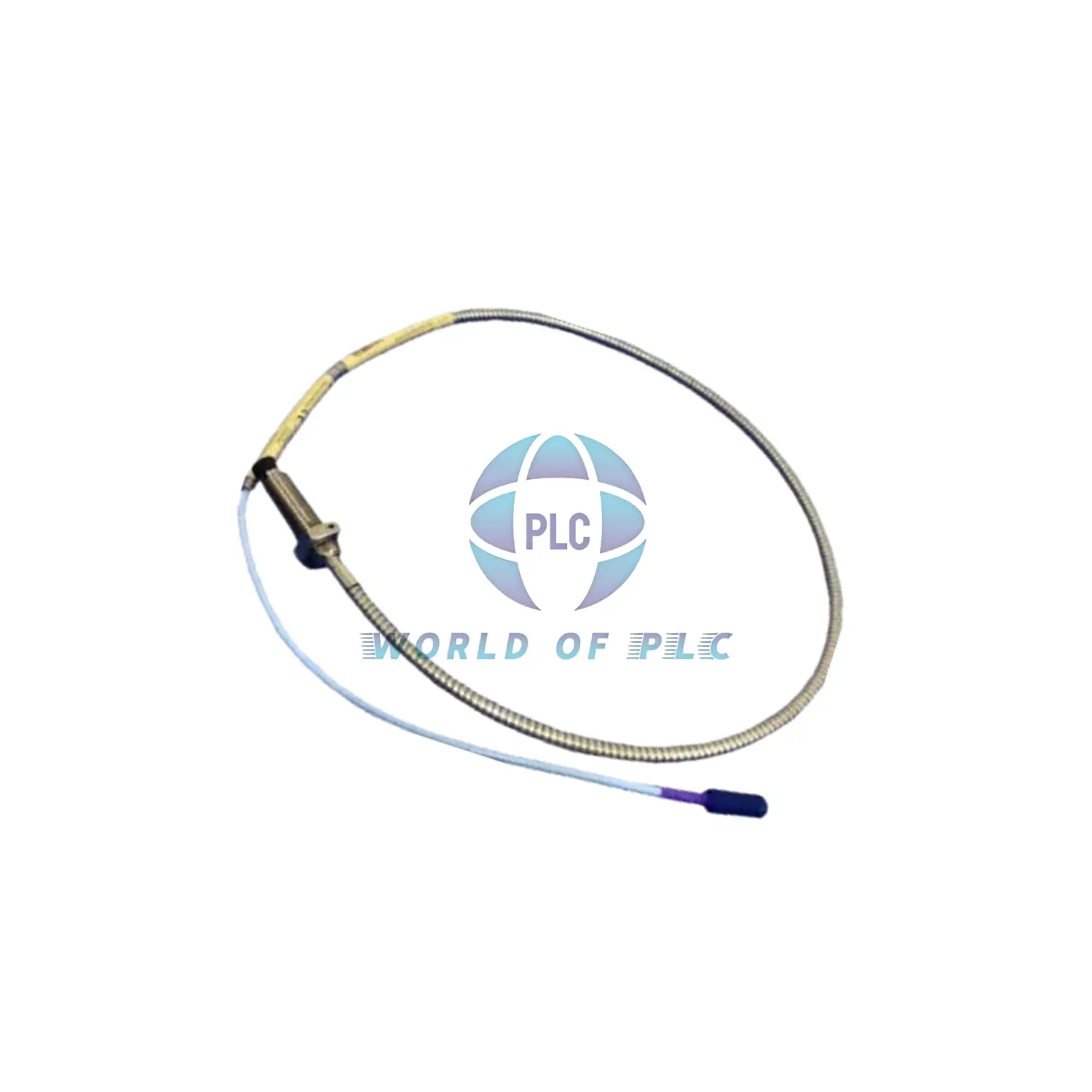

Bently Nevada 330702-00-24-50-11-00 – 5m Industrial Proximity Probe

Key Features

🏭 11mm vibration sensor with 5m armored cable

🔧 2.4″ stainless steel case (AISI 304)

🌡️ Works from -51°C to +177°C

🔌 ClickLoc connector with protector

🇺🇸 Made in USA

Model Breakdown

text
[330702]──[00]──[24]──[50]──[11]──[00]
│                      │           │          │           │         │
│                      │           │          │           │         └ No approvals needed
│                      │           │          │           └ ClickLoc+protector
│                      │           │          └ 5m cable (16.4ft)
│                      │           └ 2.4″ case length
│                      └ 0″ unthreaded
└ 11mm armored probe

Technical Specs

Cable Length: 5.0 meters (16.4 feet)

Resistance: 7.2Ω ±0.8

Thread: 1/2-20 UNF

Max Torque: 400 in-lb

Bend Radius: 1.0″ minimum

Weight: 0.17kg (0.37lbs)

Cable Type: 75Ω triaxial FEP

Important Notes

⚠️ For use with 5m Proximitor Sensor only

🔧 Recommended torque: 133 in-lb

❄️ Avoid below -34°C before installation

🔌 Connect finger-tight (max 5 in-lb)

Your Protection

✅ 12-month quality guarantee

🚛 Ships via FedEx/UPS/DHL worldwide

Expert Questions

• Why 5m cable length specifically?
  Matches 5m Proximitor Sensor requirements.
• Can I use this in wet areas?
  Yes, FluidLoc cable resists moisture.
• What’s the probe tip life expectancy?
  Typically 3-5 years with normal use.
• Is the cable flexible in cold temps?
  Yes, works to -51°C but install above -34°C.
• What maintenance is needed?
  Just periodic inspection for damage.
