Product Brief

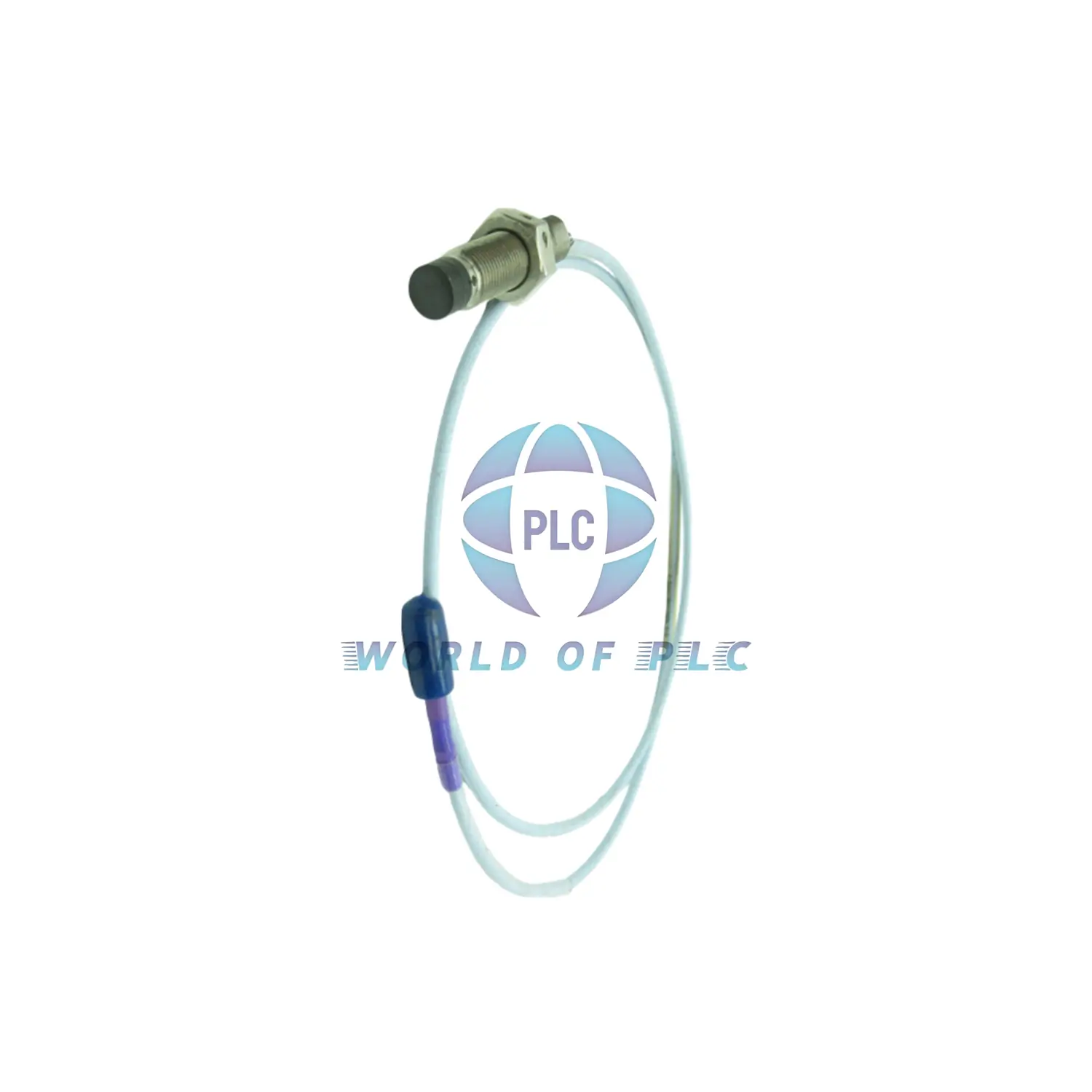

The Bently Nevada 330703-000-060-10-11-05 is a premium-grade, metric-threaded 3300 XL series 11 mm Proximity Probe. This robust industrial sensor translates shaft movements and relative gaps into precise electronic signals, facilitating reliable machinery protection. Operating on eddy-current measurement principles, the sensor serves critical vibration monitoring, axial position tracking, and dynamic speed sensing loops. The specialized M14 x 1.5 metric housing features a non-armored design, allowing clean routing through protective conduit systems in heavy rotating machinery.
Oiltech Controls Limited’s Insight
The instrumentation experts at Oiltech Controls Limited recognize the Bently Nevada 330703-000-060-10-11-05 as a highly reliable sensor choice for metric-standard machinery. The integration of the ClickLoc miniature coaxial connector and FluidLoc cable assembly ensures robust prevention against process fluid wicking along the conductor core. This metric variant offers excellent mechanical stability and reliable signal performance under intense thermal stress. For urgent inventory checks or direct technical quotes, contact us at info@oiltechcontrols.com or connect with us on WhatsApp via +86 158 8020 0923.
Equipment Compatibility
The Bently Nevada 330703-000-060-10-11-05 is fully compatible with standard metric vibration hardware:
- Bently Nevada 3300 XL 11 mm metric-calibrated Proximitor Sensors
- Bently Nevada 3500/42M and 3500/45 monitoring chassis modules
- Metric M14 x 1.5 threaded mounting brackets, sleeves, and machine casings
- Multi-channel asset protection units requiring standard 11 mm sensor diameters
Configuration Breakdown
This list details the physical parameter configuration of the 330703-000-060-10-11-05 module:
- 330703 — Product Series: 3300 XL 11 mm Proximity Probe (M14 x 1.5 thread, without armor)
- └─ 000 — Unthreaded Length Option: 0.0 mm
- └─ 060 — Overall Case Length Option: 60.0 mm
- └─ 10 — Total Length Option: 1.0 meter (3.3 feet)
- └─ 11 — Connector and Cable: Miniature coaxial ClickLoc connector with protector, FluidLoc cable
- └─ 05 — Agency Approvals: Multiple Approvals (including ATEX, IECEx, and CSA standards)
Technical Specifications
- Brand: Bently Nevada
- Model Number: 330703-000-060-10-11-05
- Probe Tip Material: High-performance Polyphenylene sulfide (PPS)
- Probe Case Material: Corrosion-resistant AISI 304 Stainless Steel (SST)
- Cable Specifications: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable
- Probe DC Resistance: Center conductor to outer conductor (RPROBE) measures 5.9 ± 0.5 ohms
- Maximum Thread Engagement: Depth of 21 mm along the M14x1.5 thread
- Recommended Torque: Nominal case installation torque of 21.1 N•m (187 in•lb)
- Maximum Case Torque: Rated limit up to 63.3 N•m (560 in•lb)
- Magnetic Field Interference: Low voltage variance under 60 Hz magnetic fields up to 300 Gauss
- Operating Temperature Range: Robust rating from -52°C to +177°C (-62°F to +351°F)
- Pressure Sealing Capacity: Integrated Viton O-ring designed to seal differential housing pressure
- Physical Weight: Net shipping weight of 0.17 kg
Application Scenarios
- Thrust position measurements on large metric-designed centrifugal compressors
- Radial vibration monitoring in multi-stage boiler feed water pumps
- Shaft centerline tracking on industrial gas turbines with metric mounting ports
- Rotor expansion monitoring on critical power generation turbine assemblies
Diagnostic and Fault Tracking Capabilities
The Bently Nevada 330703-000-060-10-11-05 provides continuous monitoring diagnostics when integrated with a Proximitor. The system monitors the integrity of the 75-ohm triaxial line, outputting error signals if cable failure occurs. Measuring the static DC resistance of 5.9 ± 0.5 ohms allows technicians to quickly verify transducer coil health. Furthermore, the probe maintains low sensitivity to external 60 Hz magnetic fields, preventing signal noise from motor interference.
Commercial and Shipping Terms
- Dispatch Lead Time: Fast shipping scheduled within 24 to 48 hours of purchase confirmation
- Global Shipping Network: Swift international delivery provided by FedEx, UPS, and DHL Express
- Packaging Contents: Brand new probe in original factory packaging with ClickLoc connector protector
- Warranty Protection: Extended 12-month commercial warranty covering manufacturing defects
Frequently Asked Questions
What makes the metric 330703-000-060-10-11-05 different from standard fractional thread probes?
This probe uses an M14x1.5 metric mounting thread, whereas fractional models utilize 1/2-20 UNF threads. Always match your machine case threads exactly to avoid stripping the mounting ports.
How does extreme cold affect the Viton O-ring seal on this proximity probe?
Exposing this sensor to temperatures below -34°C (-30°F) can cause the Viton elastomer to harden and lose elasticity. This degradation may result in premature failure of the pressure seal under differential pressure.
Does the FluidLoc cable option provide any benefit if the probe is not fully submerged in oil?
Yes, the FluidLoc design blocks oil mist and moisture from wicking through the cable structure into the junction box. It remains highly effective in humid or oily atmospheres even without full immersion.
Can I install the probe using maximum torque values without running risks?
While the housing tolerates up to 63.3 N•m, we recommend applying the standard 21.1 N•m rating. Excessive force risks shearing the M14 threads or damaging internal sensor coils.
Do I need to recalibrate my monitor if I replace an old 11 mm probe with this model?
If your system already used a metric 11 mm probe with a matching system length, recalibration is not required. Simply swap the hardware and verify the system’s electrical zero-point gap.
Procurement Guidance
- Double-check that your machinery case is tapped for M14x1.5 and not the larger M16x1.5 or imperial threads.
- Confirm the total cable length matches your existing system calibration, typically requiring a 5.0m or 9.0m extension.
- Ensure your target material is 4140 steel, as standard proximity probes are calibrated specifically for this alloy.
- For order support, contact info@oiltechcontrols.com or WhatsApp us at +86 158 8020 0923.
