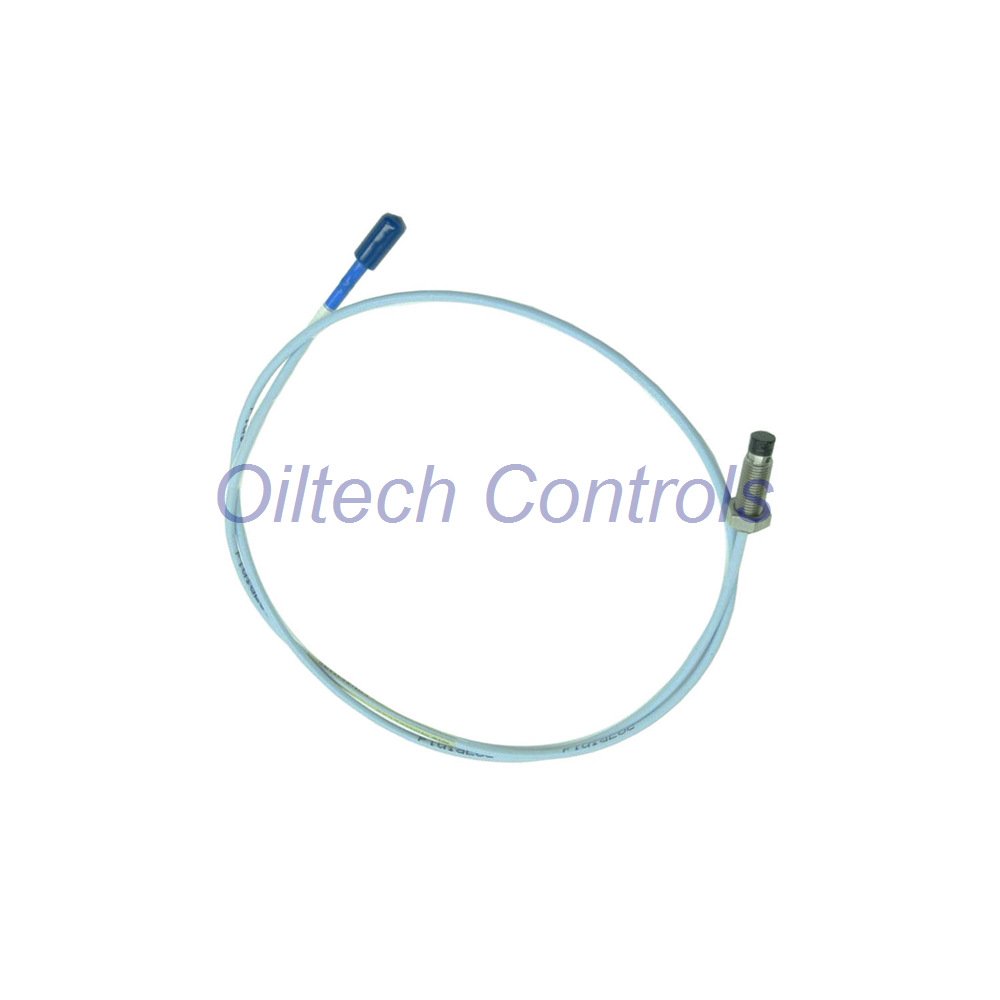

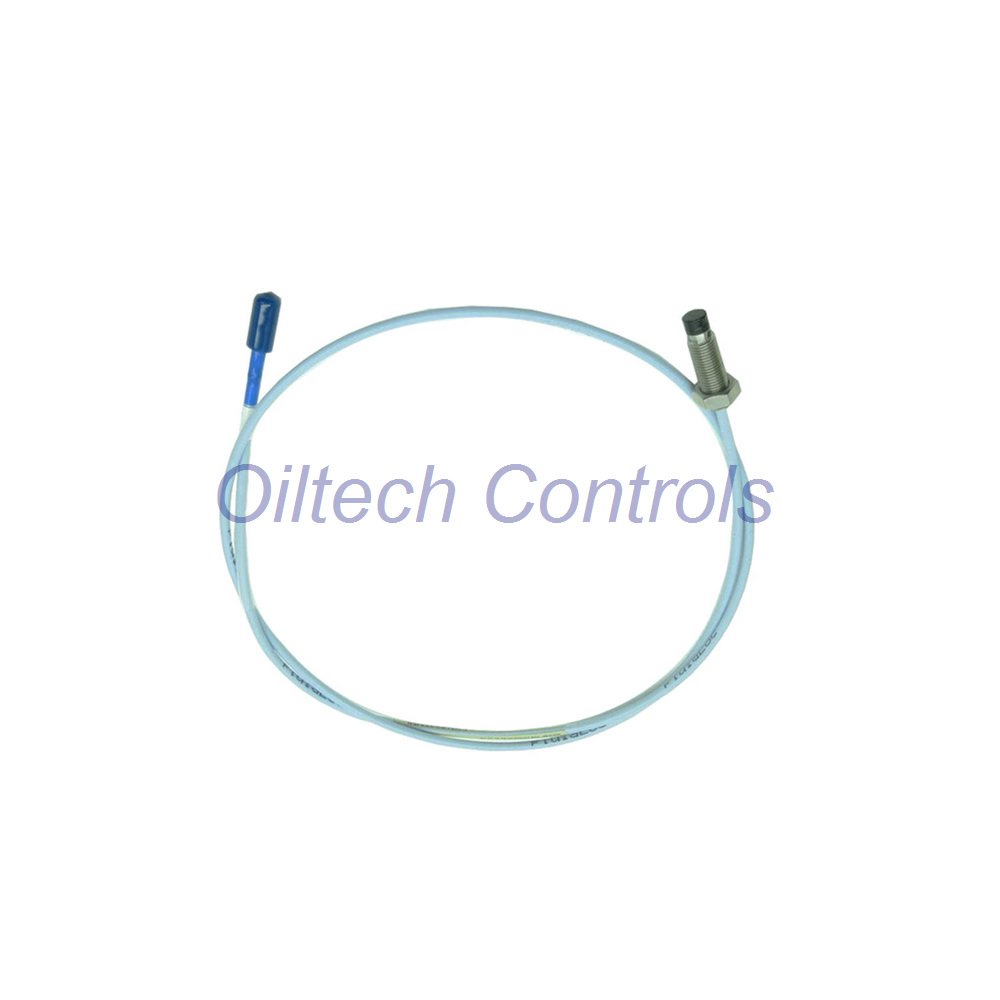

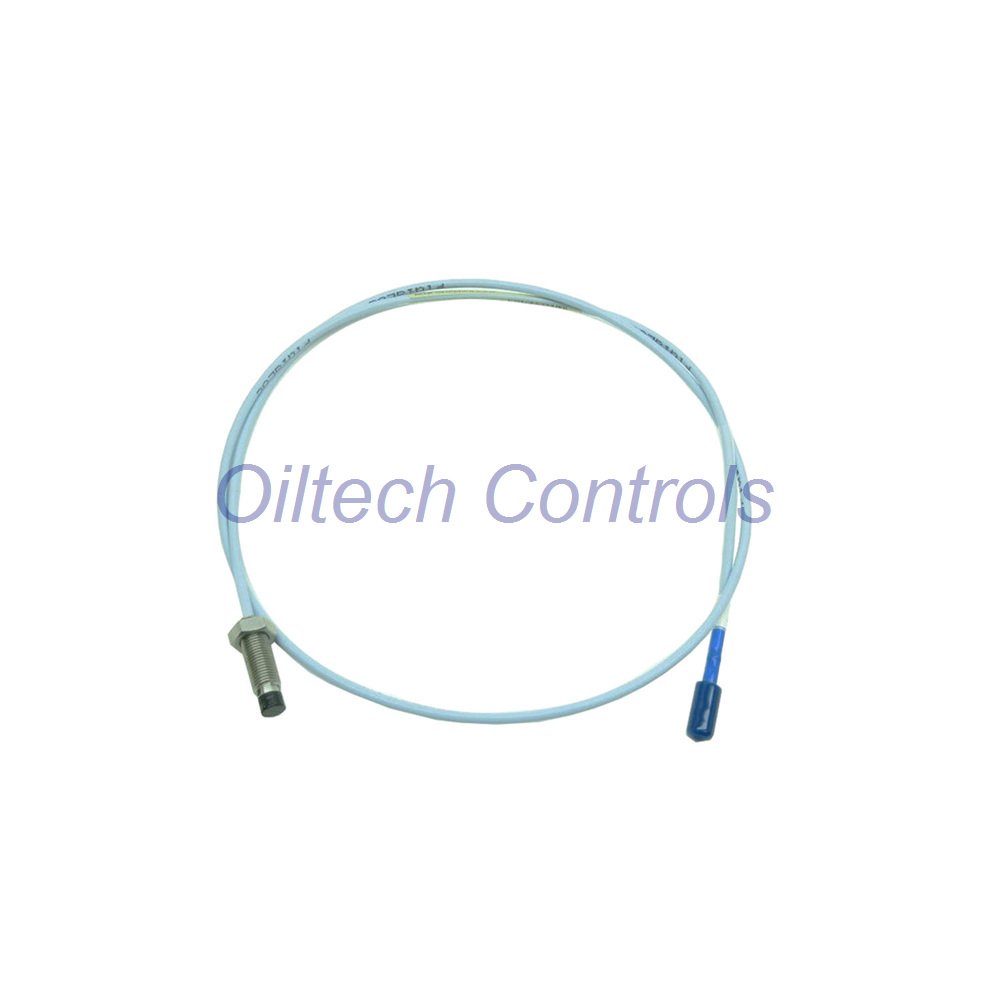

330707-00-25-10-01-00 Bently Nevada 3300 XL 11mm Probe | In Stock

330707-00-25-10-01-00 Bently Nevada 3300 XL 11 mm Proximity Probe – In Stock | Fast Delivery

Reliable shaft monitoring begins with the right probe.

The 330707-00-25-10-01-00 probe from Bently Nevada delivers stable vibration and displacement monitoring.
It belongs to the 3300 XL 11 mm Proximity Probes family.
The sensor uses eddy-current technology for precise shaft motion detection.

Tip: Download the product manual to confirm configuration before installation.

Product Overview

• Manufacturer: Bently Nevada
• Product model: 330707-00-25-10-01-00
• Product family: 3300 XL 11 mm Probes
• Origin: United States
• Measurement type: Non-contact shaft displacement
• Application: Vibration monitoring and machine protection
• Thread type: 5/8-18 UNF
• Probe cable length: 1 meter
• Armor: Not included

Configuration Breakdown

• 330707
  • 3300 XL 11 mm probe design
  • 5/8-18 UNF threaded probe body
  • Standard cable without armor
• 00
  • Unthreaded length
  • 0 inch extension
• 25
  • Probe case length
  • 2.5 inches housing size
• 10
  • Total probe cable length
  • 1.0 meter cable
• 01
  • Miniature coaxial ClickLoc connector
  • Connector protector included
  • Standard industrial cable
• 00
  • Agency approvals not required

Core Technical Specifications

• Brand: Bently Nevada
• Model: 330707-00-25-10-01-00
• Probe tip material: Polyphenylene sulfide (PPS)
• Probe housing: AISI 304 stainless steel
• Cable type: 75 Ω triaxial FEP insulated cable
• Probe resistance (1 m): 5.9 ± 0.5 Ω
• Operating temperature: −52°C to +177°C
• Minimum bend radius: 25.4 mm
• Thread engagement limit: 0.938 inch
• Recommended probe torque: 15.2 N·m
• Maximum torque rating: 45.2 N·m
• Connector torque: finger tight
• Maximum connector torque: 0.565 N·m
• Shipping weight: 0.17 kg

Material and Mechanical Design

• PPS probe tip resists oil and chemicals.
• Stainless steel body prevents corrosion.
• FEP cable insulation withstands heat.
• Viton O-ring seals pressure differences.
• Compact structure allows easy mounting.

Installation Notes

• Use correct torque when installing the probe.
• Avoid sharp cable bending.
• Ensure the gap between probe and shaft is correct.
• Keep cable away from strong electromagnetic sources.

Diagnostic Capabilities

• Detect shaft vibration changes.
• Monitor rotor displacement.
• Identify early bearing faults.
• Track rotor imbalance conditions.
• Improve predictive maintenance programs.

Typical Equipment Applications

• Steam turbines
• Gas turbines
• Industrial compressors
• Process pumps
• Power generation equipment
• High-speed rotating machines

Model Selection Advice

• 330701-00-24-10-11-00
  • Alternative probe configuration.
  • Different connector type.
  • Useful when system interface differs.
• 330707-00-10-50-01-05
  • Longer cable option.
  • Better for remote sensor placement.

Manager’s Insight

• This probe is widely used in turbine protection systems.
• The short 1-meter cable suits compact installations.
• The ClickLoc connector reduces installation time.
• The stainless housing increases reliability.
• Many engineers prefer this probe for tight spaces.

Shipping and Warranty

• Item condition: Brand new
• Warranty: 12 months
• Dispatch time: 12–48 hours
• Express shipping: FedEx, UPS, DHL
• Secure industrial packaging

Professional FAQ

• How do I confirm compatibility with my monitoring system?
• Check the required probe length and connector type in the monitoring system manual.
• What installation gap should I maintain?
• Follow the proximitor system manual. The gap depends on probe calibration.
• Can this probe work near oil or lubricant?
• Yes. The PPS tip and sealed cable resist oil exposure.
• How to choose between armored and non-armored probes?
• Armored cables suit harsh environments. Standard cables fit protected installations.
• When should a probe be replaced?
• Replace it if signal noise increases or mechanical damage appears.
