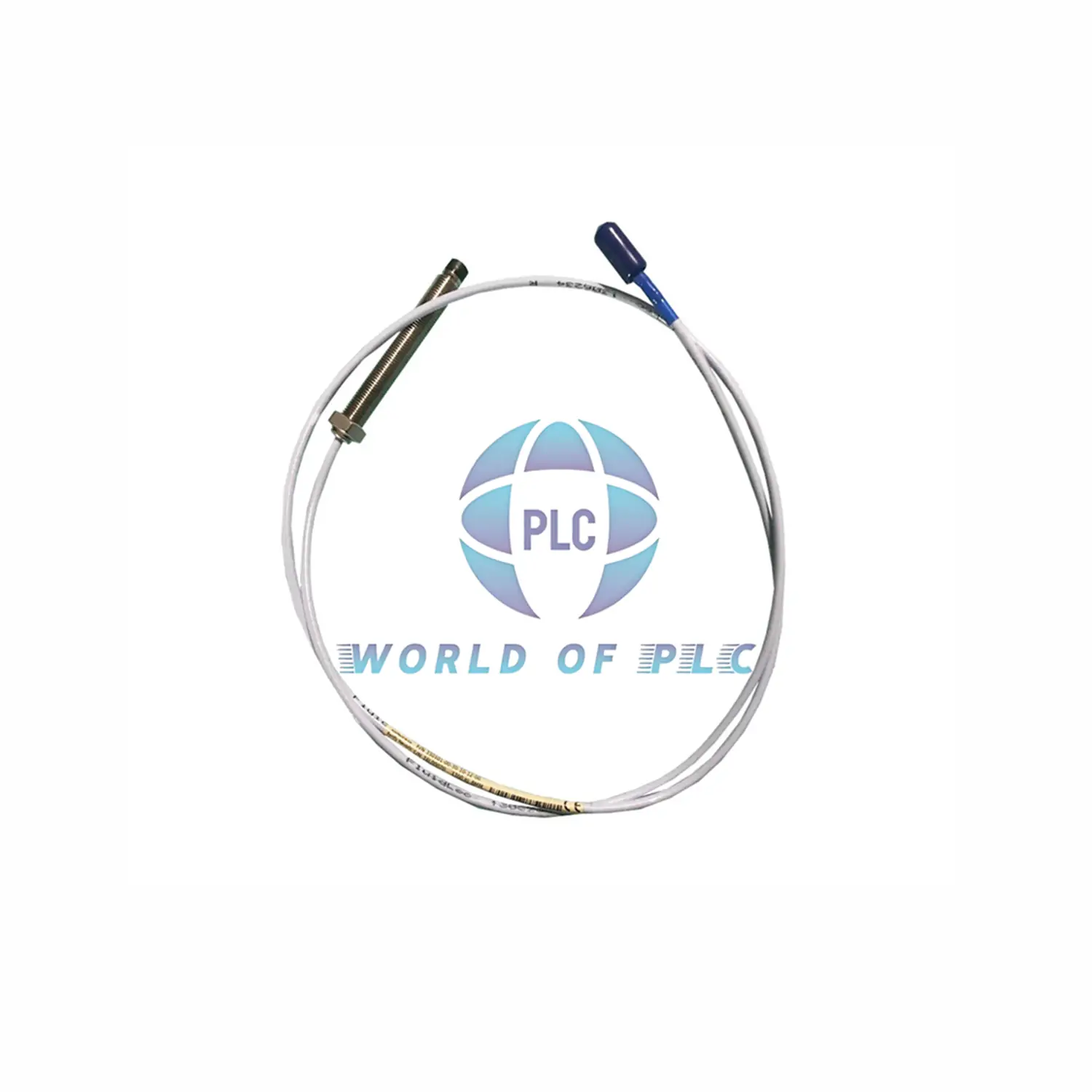

330708-00-10-10-12-05 | Bently Nevada 3300 XL 11 mm Proximity Probe

Bently Nevada 330708-00-10-10-12-05 Compact Proximity Probe

Industrial 11mm vibration sensor with FluidLoc cable. Made in USA. Monitors rotating machinery health.

Model Configuration

• 330708: 11mm probe (5/8-18 thread)
• 00: 0″ unthreaded section
• 10: 1.0 inch housing length
• 10: 1.0 meter cable
• 12: FluidLoc cable with ClickLoc connector
• 05: Multiple safety approvals

Technical Specifications

• Brand: Bently Nevada
• Type: 3300 XL Proximity Probe
• Housing Length: 1.0 inch (compact)
• Cable Type: FluidLoc triaxial
• Resistance: 5.9Ω ±0.5
• Temperature Range: -51°C to +177°C
• Thread Type: 5/8-18 UNF
• Max Torque: 45.2 N•m
• Weight: 0.17 kg

Special Features

• FluidLoc cable resists fluids and moisture
• Compact design for tight spaces
• PPS plastic tip for chemical resistance
• Viton O-ring pressure seal
• Stainless steel housing (AISI 304)

Installation Guide

• Mount with 5/8-18 UNF thread
• Max thread depth: 0.938 inches
• Recommended torque: 15.2 N•m
• Keep above -34°C during install
• Min cable bend: 25.4 mm

Support & Services

• 12-month warranty
• Global express shipping
• Technical support available

Expert Questions Answered

• Q: FluidLoc vs standard cable?
  A: Better fluid/moisture resistance
• Q: Pressure testing options?
  A: Available upon request
• Q: Chemical compatibility?
  A: PPS tip handles oils/solvents
• Q: Thread alternatives?
  A: M16x1.5 (24mm) or M14x1.5 (21mm)
• Q: Connector torque limit?
  A: Finger tight only (0.565 N•m max)
