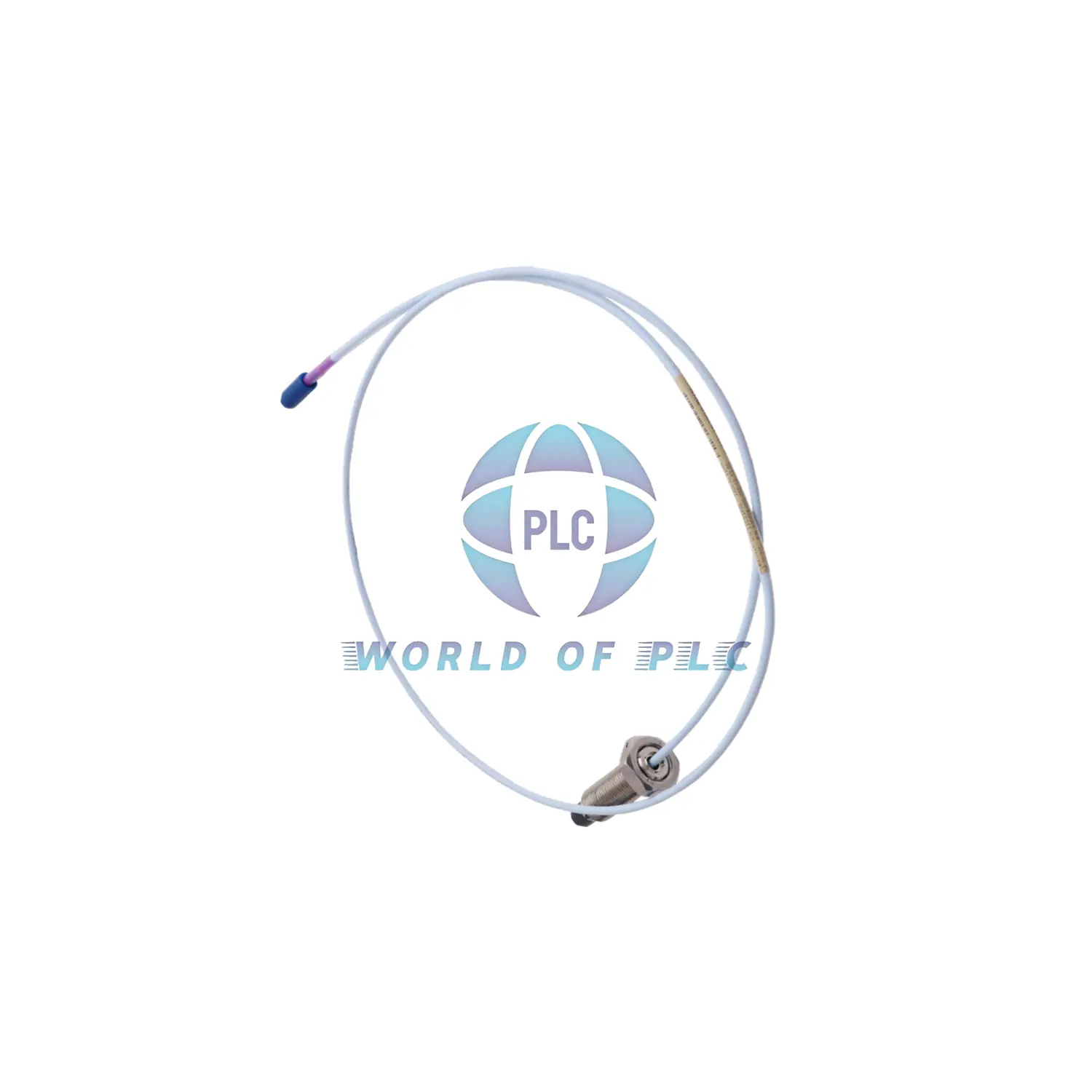

Bently Nevada 3300 XL Proximity Probe: Heavy-Duty Machine Health Monitor
Precision vibration sensor for industrial equipment. Made in USA with stainless steel body and chemical-resistant tip. Protects critical machinery.
Key Advantages
- Protected ClickLoc connector – prevents damage during installation
- Shorter 1.0 inch case – fits tight spaces
- Extreme temperature operation from -51°C to +177°C
- Viton O-ring seal for pressure changes
Product Identification
Brand: Bently Nevada
Model: 3300 XL 11mm Probe
Full Part No.: 330708-00-10-50-01-00
Part Number Decoder:
- → 330708: 11mm Probe (5/8-18 thread)
- → 00: 0″ unthreaded section
- → 10: 1.0″ case length
- → 50: 5.0 meter cable
- → 01: ClickLoc connector with protector
- → 00: No special approvals
Technical Specifications
- Measurement Range: 0-100 mils (standard)
- Sensitivity: 200 mV/mil (typical)
- Frequency Response: 0 to 10 kHz
- Temperature Limits: -51°C to +177°C
- Cable Type: 75Ω triaxial with FEP insulation
- Bend Radius: 25.4mm minimum
- Thread Size: 5/8-18 UNF
- Max Torque: 45.2 N•m (400 in•lb)
Installation Guide
- Hand-tighten connector (max 0.565 N•m)
- Recommended case torque: 15.2 N•m
- Do not expose below -34°C before installation
Shipping & Warranty
- 12-month product warranty
- Global express shipping: FedEx, UPS, DHL
- Weight: 0.17 kg – ships same business day
Expert FAQs
- Q: What’s the advantage of the connector protector?
A: Prevents damage to contacts during installation in dirty environments - Q: Can I use this in underwater applications?
A: No – not designed for liquid immersion - Q: How does the Viton seal perform with chemicals?
A: Resists most oils and fuels – consult chart for specific chemicals - Q: What’s the shelf life when unused?
A: 5 years when stored in original packaging at room temperature - Q: Can I cut the cable to custom length?
A: No – will damage calibration. Order correct cable length
Get Installation Guide
Download full technical documentation:
- Step-by-step mounting instructions
- Temperature compensation data
- Compatibility charts
- Troubleshooting guide
Package Includes: Probe unit, connector with protector, documentation
