Bently Nevada 3300 XL 25mm Proximity Probe: Robust Industrial Sensing Solution

Description

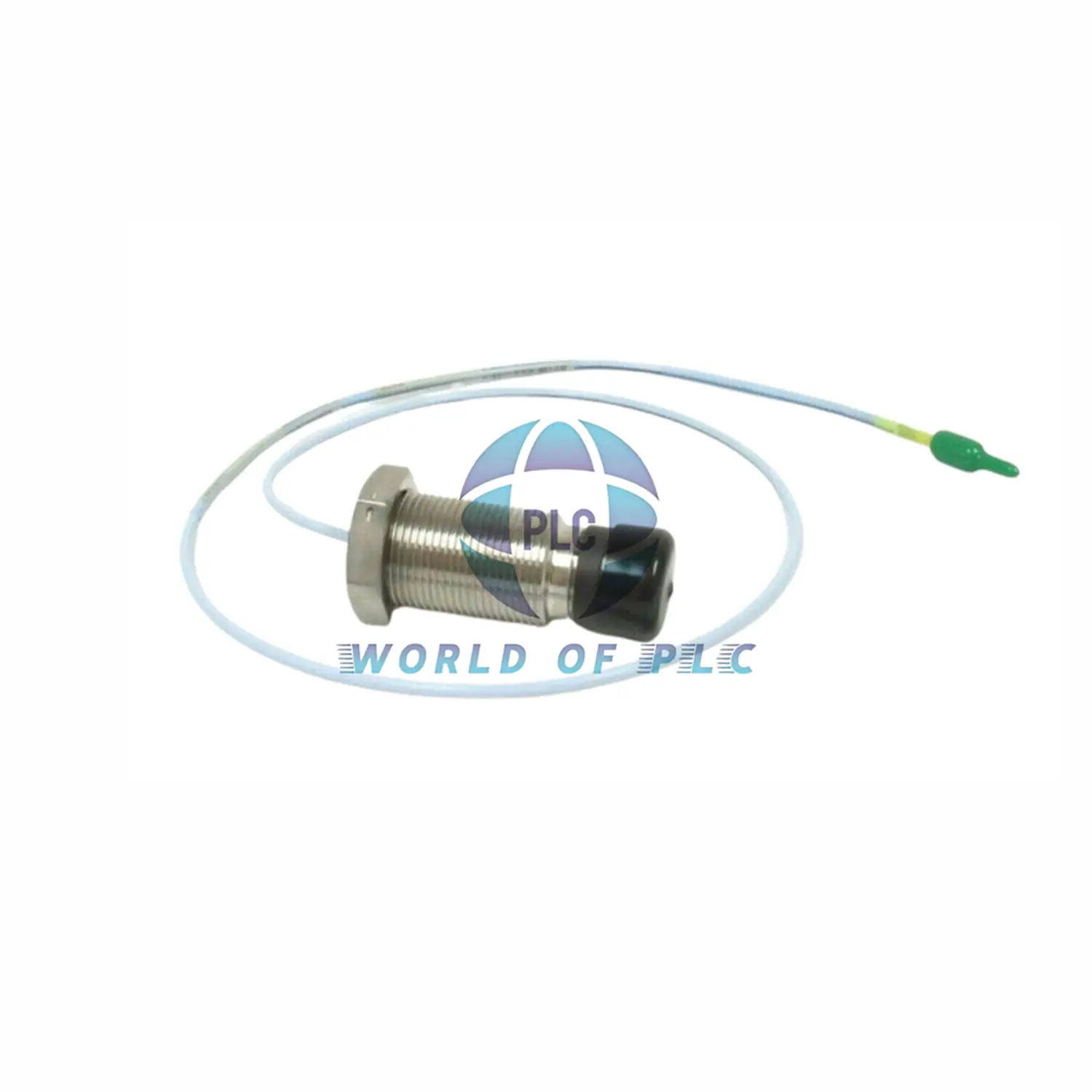

The Bently Nevada 3300 XL 330851-02-000-040-10-00-00 proximity probe delivers extreme durability for steam turbines and heavy machinery. Designed with PEEK sensor tip and stainless steel casing, it withstands continuous operation at 200°C (392°F) and short-term exposure to 250°C (482°F). Direct replacement for 7200 series 25/35mm probes.

Technical Data

• Brand: Bently Nevada
• Model: 3300 XL 25mm (Full suffix: 330851-02-000-040-10-00-00)
• Suffix Breakdown:
  02=M30x2 Threaded Case
  000=0″ Unthreaded Length
  040=40mm Overall Length
  10=1.0m Cable
  00=No Armor
  00=No Agency Approvals
• Accuracy: 6.2Ω ±0.5 (Center-to-Outer Conductor)
• Signal: 75Ω Triaxial PFA FluidLoc Cable
• Temp Range: -35°C to +200°C (Continuous)

Installation Guide

• Max Torque: 68 N•m (50 ft•lb)
• Case Material: AISI 304 SST
• Compatible Mounting: M30x2 Threaded Systems

Compatibility

Replaces all 7200 series 25mm/35mm probes including side/rear exit configurations. Works with intrinsic safety barriers (Drawing 141092) or galvanic isolators.

Package Includes

• 1x Proximity Probe Unit
• Installation Specifications Sheet
