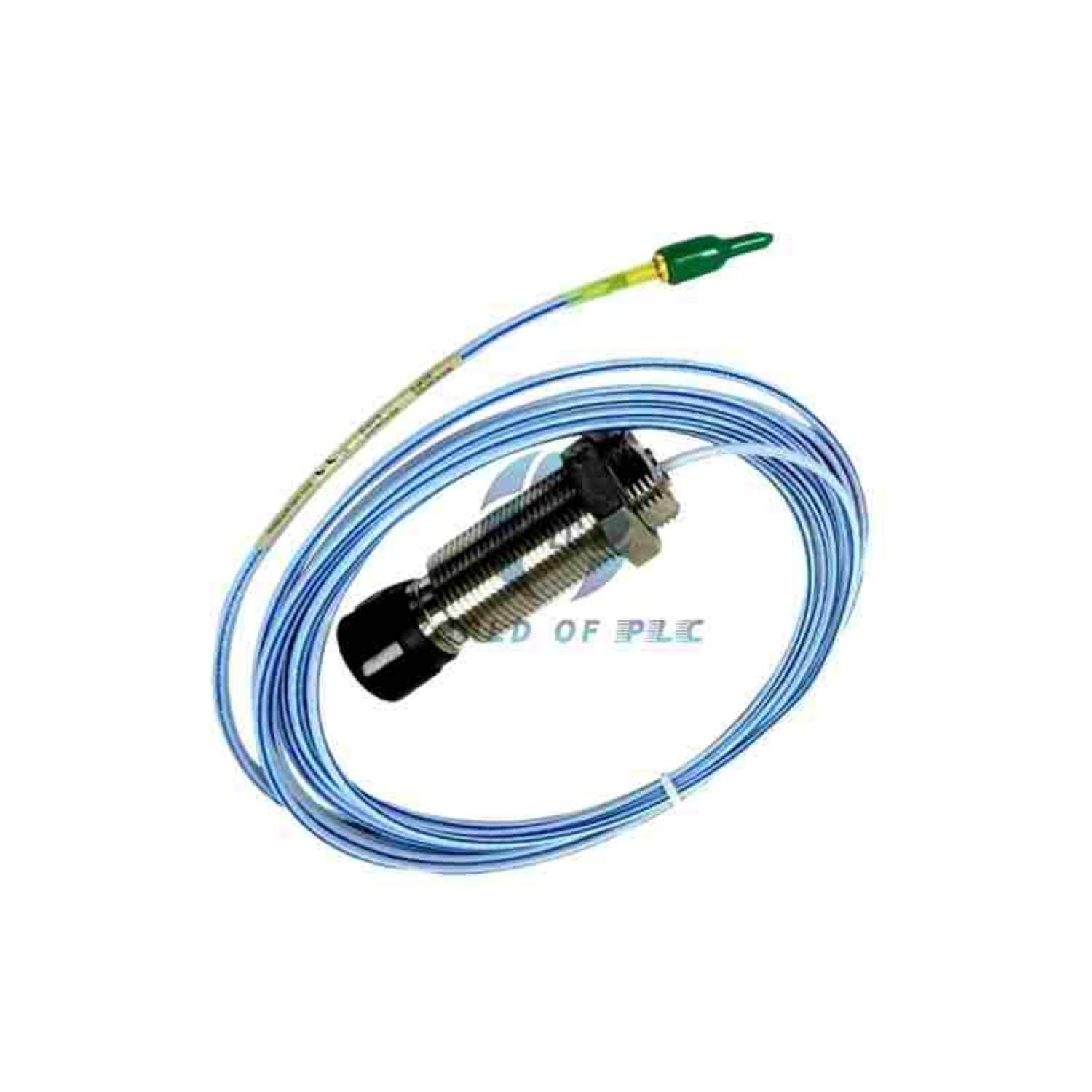

Bently Nevada 3300 XL 25mm Proximity Probe

Core Features

330851-02-000-060-50-00-CN:Industrial-grade 25mm displacement sensor for steam turbines and harsh environments. Features PEEK tip and 304 SST casing. Operates continuously at 200°C (392°F), withstands 250°C (482°F) for 24h. Direct replacement for 7200-series probes.

Full Model Decoding

330851-02-000-060-50-00-CN explained:

• 02: M30x2 threaded case
• 000: 0″ unthreaded length
• 060: 60mm overall case
• 50: 5.0m cable (16.4ft)
• 00: No SST armor
• CN: Country-specific approvals

Key Specs

• Brand: Bently Nevada
• Accuracy: 7.5Ω ±0.8Ω (5m cable)
• Output: 75Ω triaxial signal
• Operating Temp: -35°C to +200°C
• Weight: 230g (no armor)

Installation

Max torque: 163 N•m (use 68 N•m recommended). Compatible with M30x2 threads.

Compatibility

Replaces 7200 25mm/35mm probes and DE Integral systems. Supports side/rear exit configurations.

Certificated

• FCC Part 15
• EN 61000-6-2/4
• RoHS
• ABS Maritime
• AEx/Ex ia IIC T1-T5

Package Includes

• 1x Probe
• 1x 5.0m unarmored PFA cable
• Installation guide

Applications

Steam turbines, gas compressors, and marine propulsion systems. Ships via FedEx/UPS/DHL.
