Product Abstract

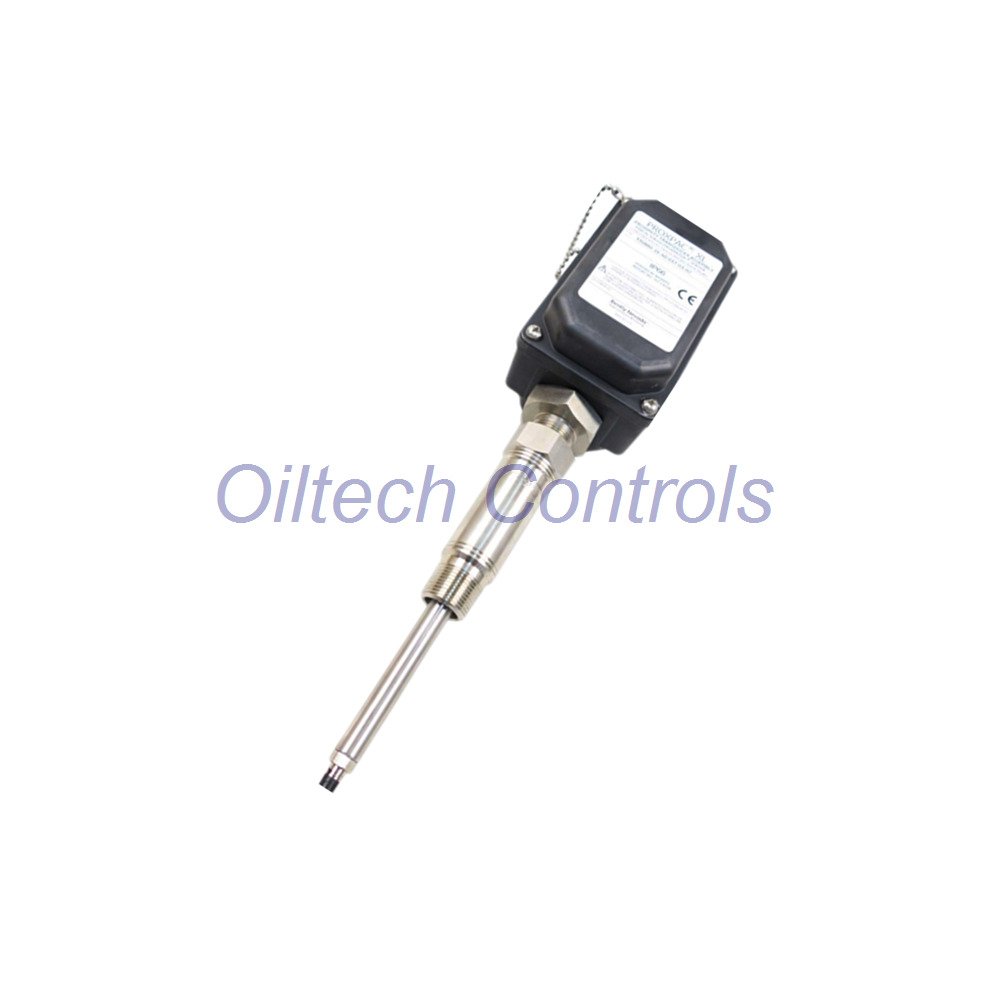

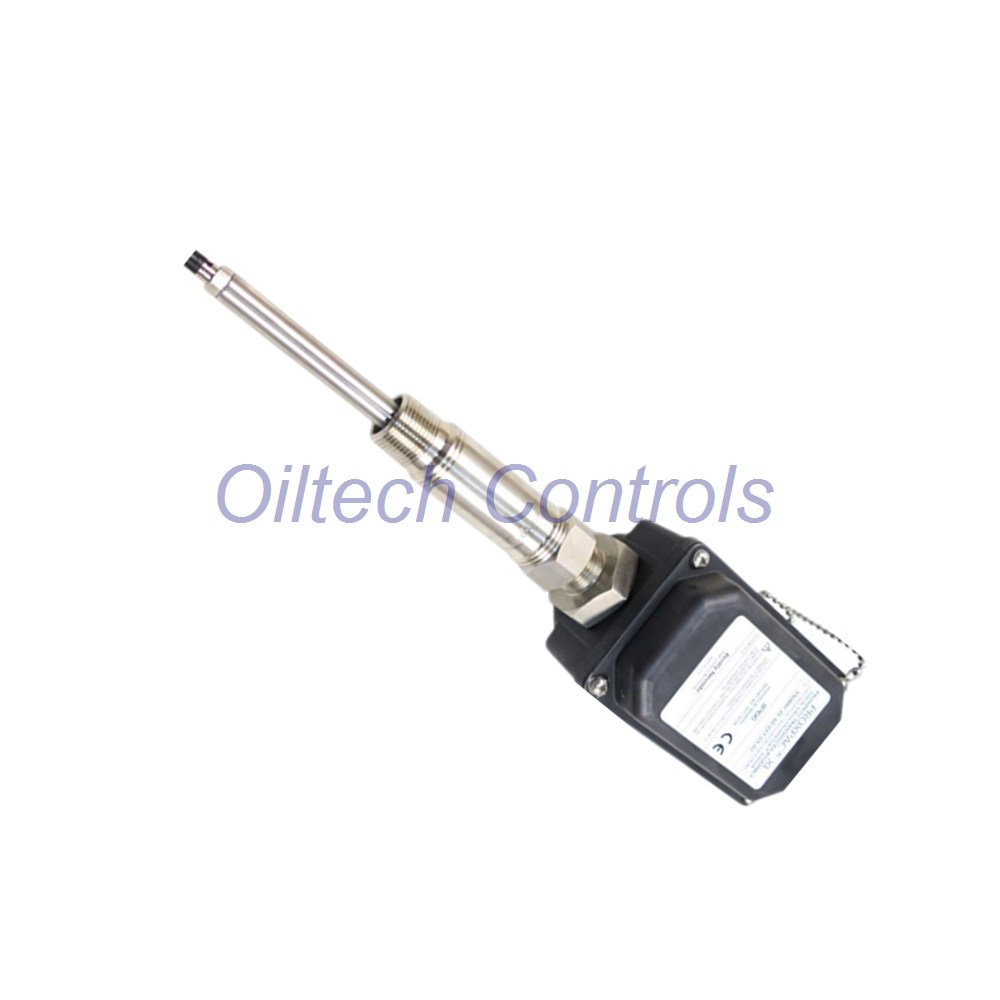

The 330880-28-15-027-00-02 is an all-in-one PROXPAC XL Proximity Transducer system. It integrates a 3300 XL 8mm probe and a Proximitor sensor into a single, high-durability thermoplastic housing. This model features a 1.5-inch standoff and 27mm penetration, designed to simplify installation while providing precise vibration and position data for critical rotating machinery in hazardous areas.
Oiltech Controls Limited’s Insight
The 330880-28-15-027-00-02 is a masterclass in field engineering. By housing the electronics at the measurement point, it eliminates failure points from long extension cables. The UV-resistant PPS housing is exceptionally durable in offshore environments where metal might corrode. Our data shows that the 3/4-14 NPT mounting provides a leak-proof interface, while the silicone isolation prevents false vibration signals caused by housing resonance.
Configuration Breakdown & Suffix Tree
- 📦 330880 — PROXPAC XL Proximity Transducer
- ┗ 📂 -28 — Probe/Approval: 3300 XL 8mm + Multiple Approvals
- ┗ 📂 -15 — Standoff Adapter: 1.5 inch (B Dimension)
- ┗ 📂 -027 — Penetration: 27 mm (C Dimension)
- ┗ 📂 -00 — Fittings: No fittings (Plugs/Washers only)
- ┗ 📂 -02 — Mounting Thread: 3/4-14 NPT (Required for Standoff)
Core Technical Specifications
- Model: 330880-28-15-027-00-02
- Linear Range: 2.0 mm (80 mils)
- Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5%
- Housing Rating: IP66 Verified (BASEEFA)
- Operating Temp (Probe): -51 °C to +177 °C
- Frequency Response: 0 to 10 kHz (+0, -3 dB)
- Input Power: -17.5 Vdc to -26 Vdc
- Material: Glass-reinforced PPS Thermoplastic
- Impact Strength: Certified to 7 Joule (Ambient)
Application & Machine Compatibility
- Reciprocating Compressors: Integrated rod drop and crankcase monitoring.
- Cooling Tower Fans: High-humidity resistance for exterior bearing mounts.
- Refinery Equipment: Multiple approvals for safe deployment in hazardous zones.
- Machine Diagnostics: Reliable orbital analysis and gap voltage tracking.
- Simplified Wiring: Reduces field installation time by eliminating separate Proximitor mounting.
Logistics & Warranty
- Quality Assurance: Includes a 12-Month Quality Guarantee.
- Priority Shipping: Worldwide delivery via FedEx, UPS, and DHL.
- Condition: Brand New & Original Bently Nevada Factory Packing.
Professional FAQ & Selection Guide
- Question: What is the benefit of the PPS thermoplastic housing?Answer: It is immune to rust and highly resistant to UV and chemical corrosion, making it superior to aluminum in coastal or offshore plants.
- Question: How is total probe reach calculated for the 330880-28-15-027-00-02?Answer: Reach is the sum of the Standoff (1.5″) and Penetration (27mm). Ensure your port depth allows for the 1.27mm (50 mil) target gap.
- Question: Can I use field wiring longer than 300 meters?Answer: Max distance is 305 meters (1,000 ft). Longer runs cause high-frequency signal rolloff.
- Question: What if the gap voltage is more positive than -1 Vdc?Answer: This typically indicates an “over-gap” condition or the shaft target size is smaller than the 15.2mm minimum.
- Question: Why is the 3/4-14 NPT thread mandatory for this model?Answer: The -02 thread provides the structural strength required to support the standoff adapter and housing assembly safely.
