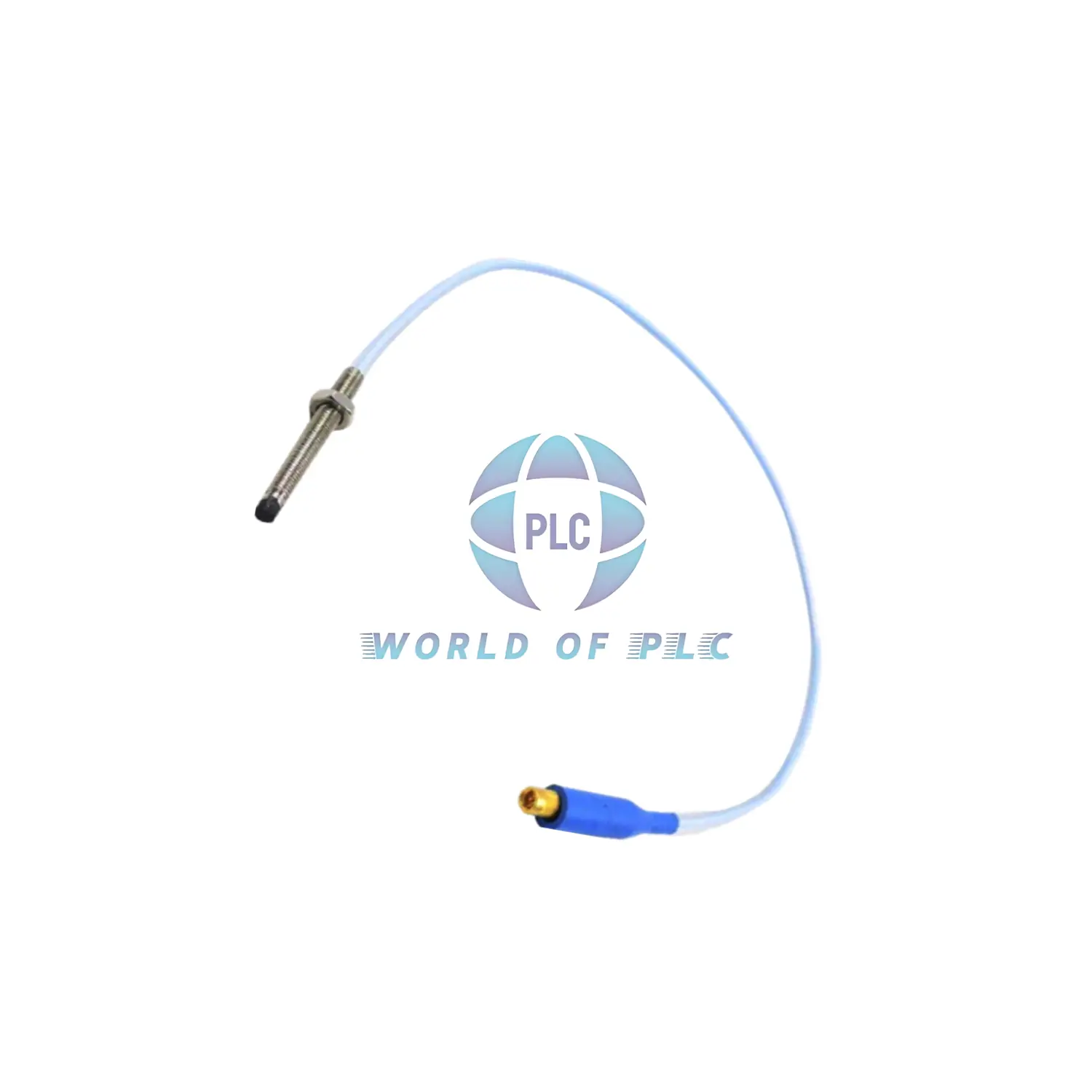

Bently Nevada 330901-00-09-05-02-00 Proximity Probe
Product Summary
The 330901-00-09-05-02-00 is a compact 3300 NSv proximity probe. It features a 1/4-28 UNF thread and no armor. The probe case is 0.9 inches long with a 0.5-meter cable and ClickLoc connector. It fits tight spaces and gives reliable position data.
Model Code Details
- 330901: 3300 NSv Probe, 1/4-28 UNF thread, without armor
- 00: 0.0 in unthreaded length
- 09: 0.9 in overall case length
- 05: 0.5 meter cable length
- 02: Miniature coaxial ClickLoc connector, standard cable
- 00: No agency approval required
Technical Specifications
- Signal Output: Compatible with 3300 NSv Proximitor
- Probe Resistance: 4.0 ± 0.5 ohms
- Operating Temp: -52°C to +177°C (-62°F to +351°F)
- Storage Temp: -52°C to +177°C (-62°F to +351°F)
- Weight: About 0.5 kg
Materials
- Tip: Polyphenylene sulfide (PPS)
- Case: AISI 304 stainless steel (SST)
- Cable: 75 Ω coaxial with FEP insulation
Installation Tips
- Use finger-tight torque on connectors
- Do not exceed max thread engagement
- Cable minimum bend radius: 25.4 mm
- Keep probe above -34°C to protect seal
