330901-22-40-05-11-00 Without Armor 3300 NSv Proximity Probes

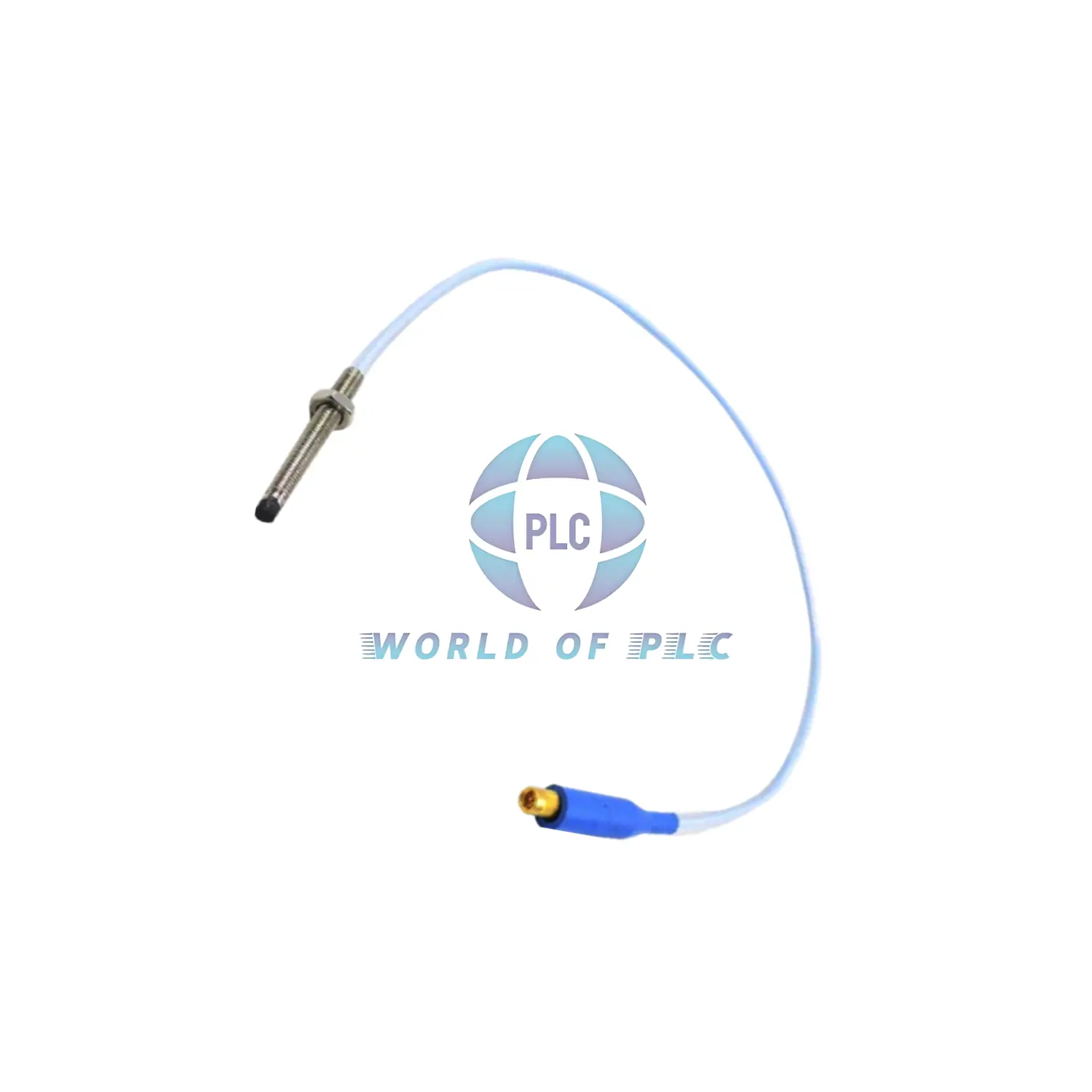

Bently Nevada 330901-22-40-05-11-00 3300 NSv Proximity Probe

Main Specifications

• Thread Size: 1/4-28 UNF
• Tip Length: 2.2 inches (unthreaded)
• Case Length: 4 inches
• Total Cable Length: 0.5 meter (20 inches)
• Output Signal: Non-contact type for shaft position
• Cable: 75 ohm coaxial, FEP jacket
• Connector: ClickLoc with protector, FluidLoc cable
• Resistance: 4.0 ± 0.5 ohms (at 0.5 meter)
• Working Temp: -52°C to +177°C
• Storage Temp: -52°C to +177°C
• Tip Material: PPS (high-temp plastic)
• Case Material: AISI304 stainless steel
• Seal Type: Viton O-ring for pressure seal
• Weight: 14 to 150 grams

Model Code Breakdown

• 330901 – 3300 NSv Probe Series
• 22 – 2.2 inch Tip Length
• 40 – 4 inch Case Length
• 05 – 0.5 meter Probe Cable
• 11 – ClickLoc Connector with FluidLoc Cable
• 00 – No Agency Approvals Required

Installation Guide

• Max thread engagement: 0.375 inch
• Recommended torque: 5.1 N·m
• Max torque: 7.3 N·m
• Avoid storing under -34°C for long periods
• Keep mounting surface dry and clean

What’s Included

• One probe: 330901-22-40-05-11-00

Warranty and Delivery

• 12-month factory warranty
• Ships via FedEx, UPS, or DHL
• Packed in original factory box
