330904-00-15-70-02-05 | Bently Nevada – 150mm Case Vibration Sensor

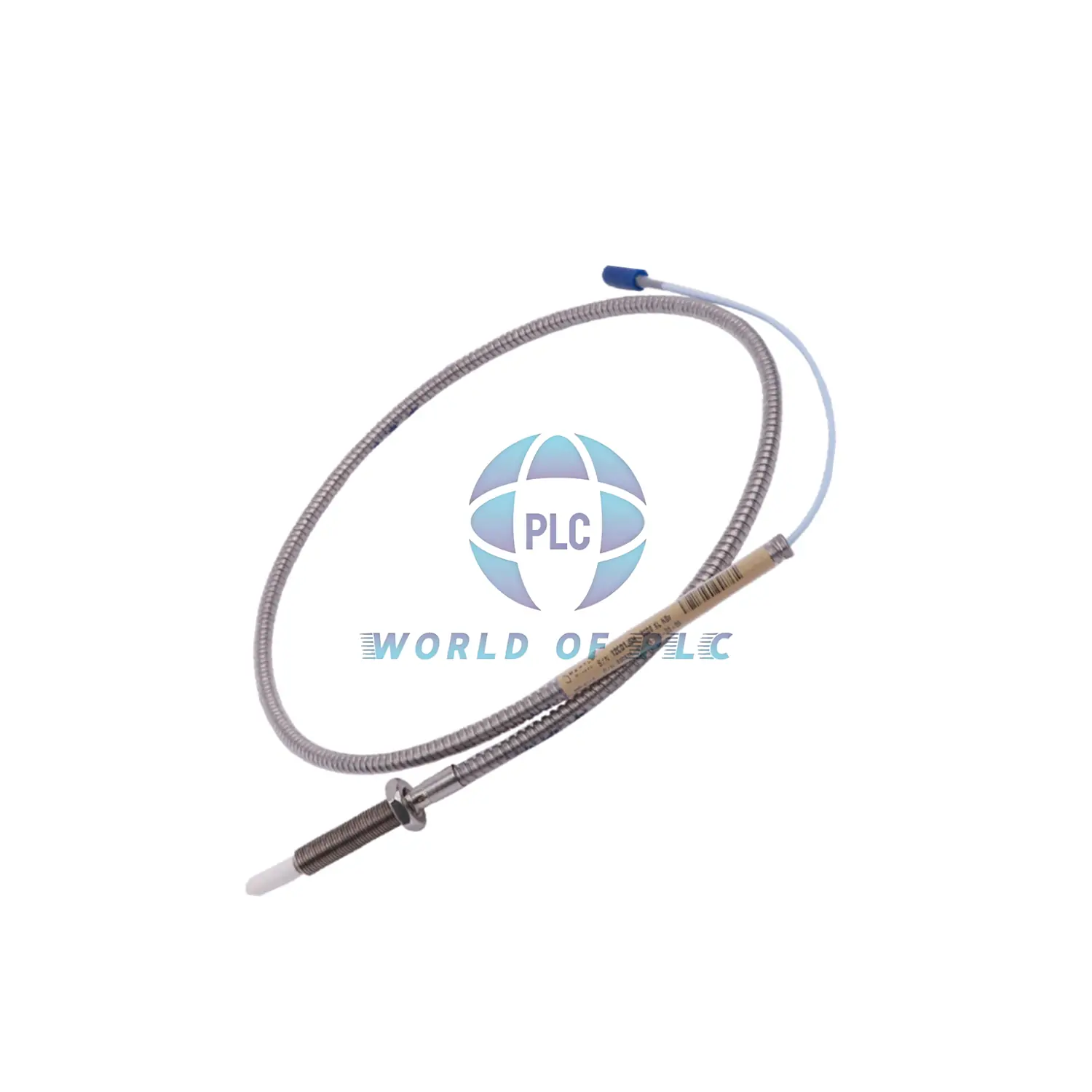

Bently Nevada 330904-00-15-70-02-05 Proximity Probe

New 330904-00-15-70-02-05 available now. Features 150mm case with 7m standard cable. Ideal for dry industrial applications. This 330904-00-15-70-02-05 offers reliable vibration monitoring. Original factory packaging with 12-month warranty.

Model Configuration Details

• 330904 – 3300 NSv Probe with M8x1 thread
• 00 – Fully threaded case (0mm unthreaded)
• 15 – 150mm overall case length
• 70 – 7.0 meter cable length
• 02 – Standard cable with ClickLoc connector
• 05 – Multiple agency approvals

Performance Specifications

• Measurement Range: 1.5 mm (60 mils)
• Recommended Gap: 1.0 mm (40 mils)
• Output Signal: -1 to -13 VDC
• Scale Factor: 7.87 V/mm (200 mV/mil)
• Linearity: Better than ±0.06 mm
• Frequency Response: 0 to 10 kHz
• Case Length: 150mm
• Cable Length: 7.0 meters
• Cable Type: Standard FEP insulated
• Probe Resistance: 5.9 ohms ±0.9
• Operating Temp: -52°C to +177°C
• Thread Size: M8 x 1.0 mm
• Target Size: 13mm minimum recommended
• Minimum Bend Radius: 25.4 mm
• Maximum Torque: 0.56 N•m (hand tight)
• Case Material: 304 stainless steel
• Tip Material: PPS
• Connector Type: ClickLoc coaxial

Installation Guide

• Set probe gap to 1.0 mm from target
• Engage full threaded section into mount
• Hand tighten only – no tools required
• Maintain minimum 25.4 mm bend radius
• Use flat targets larger than 13mm
• Ensure proper thread engagement

Compatibility

Direct replacement for 3300 RAM probe systems. Full mechanical and electrical compatibility maintained.

Shipping & Delivery

Worldwide shipping via FedEx, UPS, DHL. Fast order processing with tracking.

Warranty Coverage

12-month comprehensive warranty against manufacturing defects.

Technical Documentation

For complete specifications: Download Full Datasheet

Technical FAQ

• What applications suit standard cable?
• Dry, indoor industrial environments without chemical exposure.
• Why choose 150mm case length?
• Provides deeper mounting capability for various industrial applications.
• How does cable length affect performance?
• Longer cables maintain signal integrity up to 10 kHz with proper installation.
• What maintenance is required?
• Regular gap verification and visual inspection of cable and connector.
• Is this probe pressure rated?
• Features Viton O-ring seals; contact for specific pressure testing requirements.
