330907-05-30-50-02-05 Bently Nevada | 3300 NSv Reverse Mount Probe

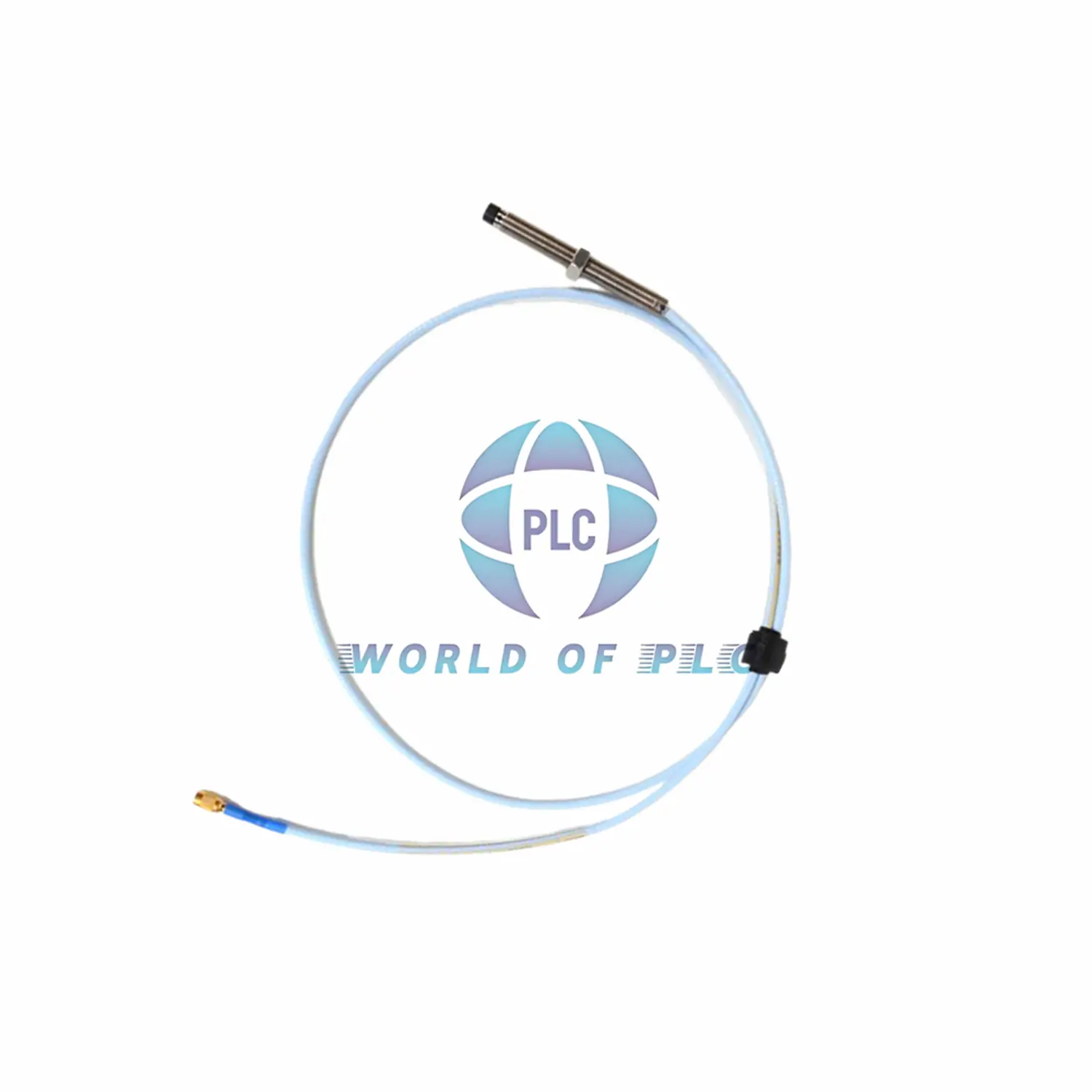

Bently Nevada 330907-05-30-50-02-05 Reverse Mount Probe

Product Summary

This is a reverse mount probe with M10X1 threads, 5.0-meter standard cable, and a miniature ClickLoc connector. It is made for industrial use, especially in compressors and pumps exposed to chemicals or vibration.

Key Technical Details

• Thread Type: M10X1
• Probe Length: 5.0 meters (16.4 feet)
• Connector: Miniature ClickLoc coaxial, standard cable
• Approval Code: 05 (Multiple Approvals)

Construction & Materials

• Tip Material: Polyphenylene Sulfide (PPS)
• Case Material: AISI 304 Stainless Steel
• Torque Max: 22.6 N·m
• Torque Recommended: 7.5 N·m
• Thread Engagement: Max 15 mm

Wiring Guide

• Wire Size: 0.2 to 1.5 mm² (16–24 AWG)
• Ferrules: 0.25 to 0.75 mm² (18–23 AWG)
• Cable Type: 3-conductor shielded triad
• Max Length: 305 meters to the proximitor sensor

What’s in the Package

• 1 x Bently Nevada 330907-05-30-50-02-05 Probe
• Standard cable with ClickLoc connector
• No certificate unless requested
• Includes 12-month warranty

Shipping Options

• FedEx
• UPS
• DHL

Model Breakdown Tree

• 330907: NSv Reverse Mount Probe
• 05: Probe unthreaded length
• 30: Case length
• 50: Total length = 5.0 meters
• 02: Standard cable, ClickLoc connector
• 05: Multiple Approvals
