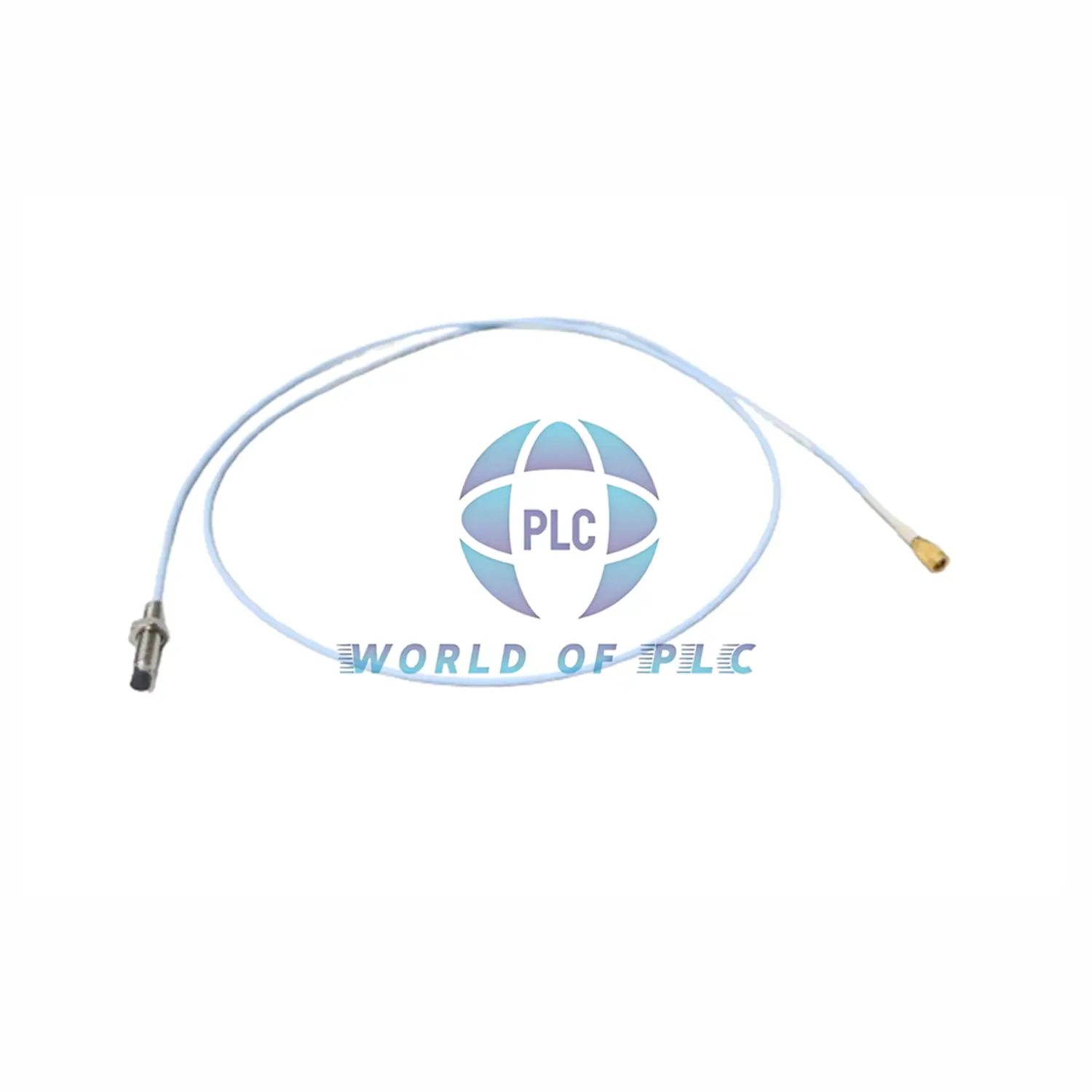

330908-00-18-10-02-05 3300 NSv Proximity Probes Without Armor

Compact Unarmored Vibration Probe: Bently Nevada 3300 NSv Series

Lightweight proximity sensor with 1.8-inch case and no armor. Features global certifications and 1m cable. Ideal for space-constrained vibration monitoring.

Product Configuration

• Complete Model: 330908-00-18-10-02-05
• Armor: Without armor (standard)
• Case Size: 1.8 inches (Option 18)
• Cable Length: 1.0 meter (39 inches)
• Connection: ClickLoc coaxial connector
• Certifications: Multiple global approvals (Option 05)

Technical Specifications

• Electrical Resistance: 4.2Ω ±0.5Ω at 1m
• Temperature Range: -52°C to +177°C (-62°F to +351°F)
• Thread: 3/8-24 UNF (no armor)
• Case Material: AISI304 Stainless Steel
• Probe Tip: PPS (Polyphenylene Sulfide)
• Weight Range: 0.5-5.3 oz (14-150g)

Installation Guide

• Recommended Torque: 11.3 N•m (100 in•lb)
• Max Torque: 33.9 N•m (300 in•lb)
• Thread Depth Limit: 0.563 inches max
• Seal Type: Viton O-ring pressure seal
• Cold Warning: Avoid below -34°C sustained

Package Contents

• 1x Unarmored vibration probe
• 1-meter FEP-insulated cable
• Pre-attached ClickLoc connector
• 12-month performance warranty

Technical FAQs

• Q: Difference between armored/unarmored versions?
  A: This model has no outer armor – lighter but same core specs
• Q: Minimum space required for installation?
  A: Total length 1.8-inch case + connector = compact fit
• Q: Which certifications does it include?
  A: Multiple global approvals (Option 05) – contact for details
• Q: Cable flexibility compared to armored versions?
  A: More flexible without armor – easier routing in tight spaces
• Q: Suitable for food processing environments?
  A: Yes, SST and PPS materials meet sanitary requirements

Access full documentation: Download Installation & Spec Sheet
