330908-00-19-10-02-05 Bently Nevada 3300 NSv Proximity Probe In Stock

Product Introduction

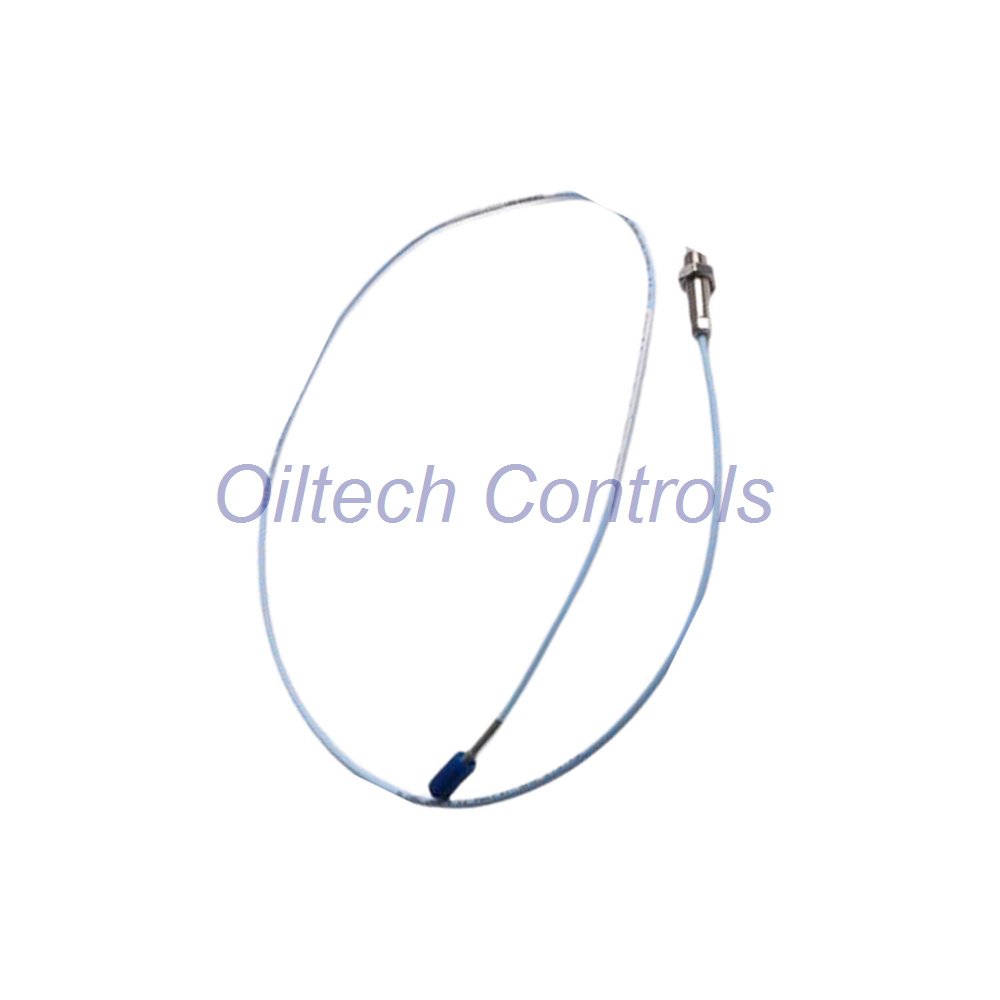

• 330908-00-19-10-02-05 is a compact industrial proximity probe.
• Manufactured by Bently Nevada.
• Belongs to the 3300 XL NSv Proximity Probes family.
• Designed for vibration and shaft position monitoring.
• Provides stable signal in harsh industrial environments.
• Strong chemical resistance improves reliability.
• Works well in compressors and rotating equipment.
• In stock with fast global delivery.

• Download the official manual before installation.
• The guide explains wiring, probe gap, and calibration steps.

Configuration Breakdown

• Model Code Structure
• • 330908
    • Series: NSv Probes
    • Probe type: 3300 NSv proximity probe
    • Thread: 3/8-24 UNF
    • Non-armored cable structure
  • 00
    • Unthreaded length
    • 0 inch
  • 19
    • Probe case length
    • 1.9 inches
  • 10
    • Total probe cable length
    • 1 meter
  • 02
    • Miniature coaxial ClickLoc connector
    • Standard probe cable
  • 05
    • Multiple international approvals

Main Technical Specifications

• Brand: Bently Nevada
• Model: 330908-00-19-10-02-05
• Series: 3300 XL NSv Proximity Probes
• Cable Length: 1.0 m
• Probe Case Length: 1.9 in
• Thread Type: 3/8-24 UNF
• Linear Range: 1.5 mm
• Recommended Gap: 1.0 mm
• Incremental Scale Factor: 7.87 V/mm
• Linearity: ±0.06 mm
• Frequency Response: 0 to 10 kHz
• Probe Resistance: 4.2 ±0.5 Ω
• Minimum Target Size: 8.9 mm
• Recommended Target Size: 13 mm
• Operating Temperature: -52°C to +177°C
• Storage Temperature: -52°C to +177°C
• Minimum Bend Radius: 25.4 mm
• Probe Tip Material: Polyphenylene sulfide
• Probe Case Material: AISI 304 stainless steel
• Cable Type: 75 Ω coaxial FEP insulated cable

Cable Electrical Characteristics

• Center conductor resistance: 0.220 Ω/m
• Shield resistance: 0.066 Ω/m
• Cable capacitance: 69.9 pF/m typical
• Maximum field wiring distance: 305 m
• Recommended cable: shielded triad cable

Diagnostic Capability

• Detect shaft vibration changes.
• Measure shaft position movement.
• Identify rotor imbalance early.
• Help find bearing wear problems.
• Support predictive maintenance systems.

Typical Equipment Applications

• Process compressors
• Steam turbines
• Industrial pumps
• Gearboxes
• High-speed rotating machinery

Expert Review

• The NSv probe is designed for narrow mounting spaces.
• It improves chemical resistance compared to RAM probes.
• Engineers often use it in compressor monitoring systems.
• Stable signal helps reduce vibration measurement errors.
• The short probe body simplifies installation.

Packaging and Shipping

• 1 × 330908-00-19-10-02-05 proximity probe
• Factory sealed packaging
• Quality inspection before shipment
• 12-month warranty
• Dispatch within 12-48 hours
• Courier services: FedEx, UPS, DHL

FAQ

• Can this probe replace older RAM models?
• Yes. The NSv probe is compatible with 3300 RAM systems.
• Why choose a 1 meter cable length?
• This length fits most standard monitoring cabinet layouts.
• What happens if the probe gap is incorrect?
• The vibration signal may shift or lose accuracy.
• Is the probe suitable for chemical plants?
• Yes. The PPS tip improves chemical resistance.
• How can I extend the signal cable distance?
• Use shielded triad cable and keep wiring below 305 meters.
