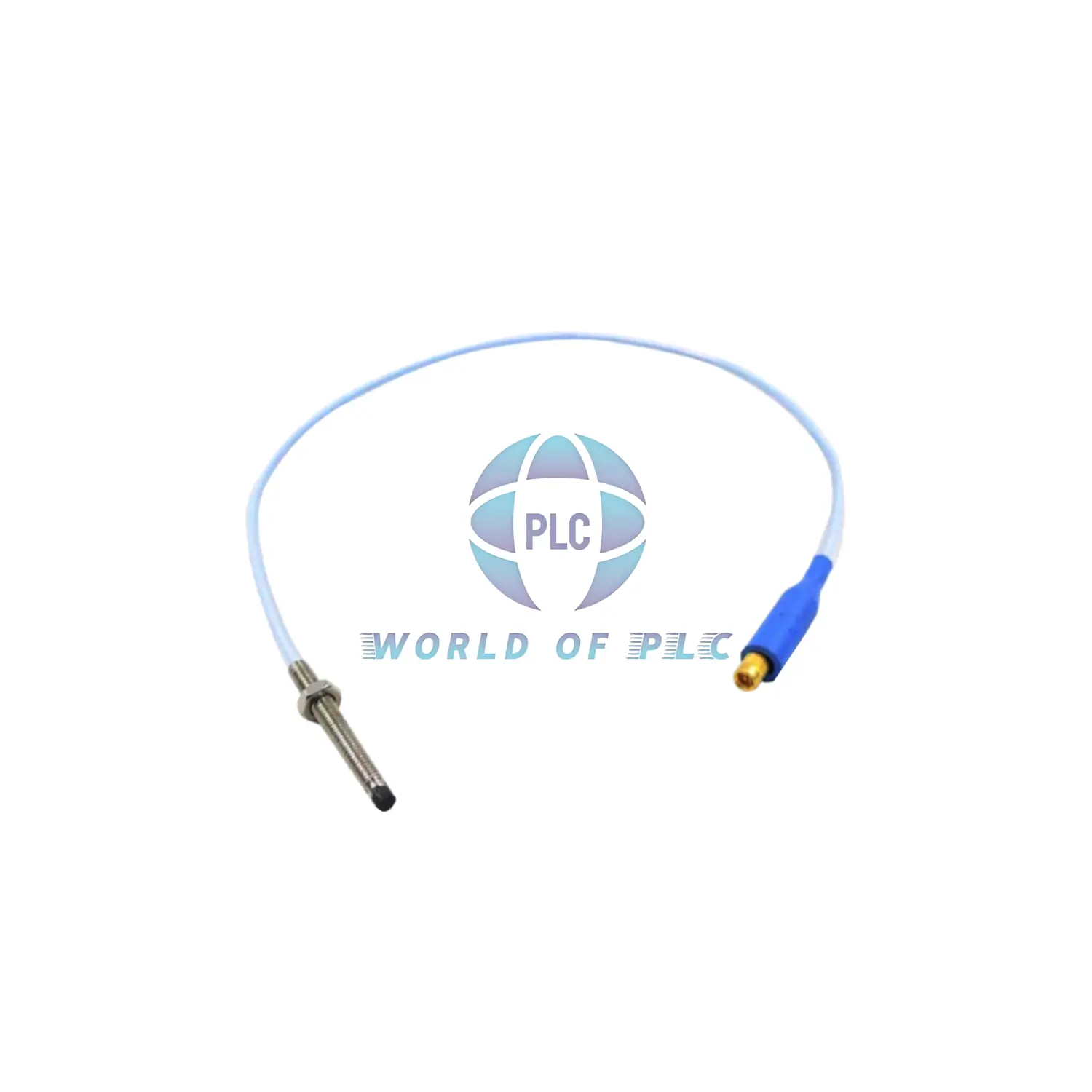

Bently Nevada 330908-00-20-05-01-00 Proximity Probe
Product Overview
The 330908-00-20-05-01-00 is part of the Bently Nevada 3300 NSv probe series. It has a 3/8-24 UNF thread and no armor. This probe is designed for use in tight spaces and small machines. It provides accurate vibration readings for condition monitoring.
Key Technical Specifications
- Thread Type: 3/8-24 UNF
- Unthreaded Section: 0.0 in
- Case Length: 2 in
- Cable Length: 0.5 meter (20 in)
- Connector: Mini ClickLoc with connector protector
- Cable Type: 75 Ω coaxial, FEP insulated
- Case Material: AISI304 Stainless Steel
- Tip Material: PPS (Polyphenylene Sulfide)
- Operating Temp: -52°C to +177°C
- Storage Temp: -52°C to +177°C
- Seal Material: Viton O-ring
- DC Resistance (0.5 m): 4.0 ± 0.5 ohms
- Recommended Torque: 11.3 N·m (100 in·lb)
- Thread Depth Limit: 0.563 in
- Weight: 14 to 150 g
Model Breakdown
- 330908: NSv Probe Series with 3/8-24 UNF thread
- 00: 0.0 in unthreaded portion
- 20: 2 in overall case length
- 05: 0.5 meter total cable length
- 01: Mini ClickLoc connector with protector
- 00: No approval required
Compatibility
- Works with 3300 NSv extension cables
- Connects with NSv Proximitor sensors
- Good for compact motors and pumps
Warranty and Shipping
- Warranty: 12 months replacement service
- Shipping: FedEx, UPS, DHL
Application Use Cases
- Precision Fans: Detect vibration without extra space
- Mini Pumps: Help spot problems early
- Spindle Motors: Track shaft shift in small tools
- Robotic Drives: Monitor fine movement changes
Extra Configuration Options
- Cable Length Options: 0.5 m, 1 m, 5 m, 7 m
- Case Length Options: 12, 20, 24, 30, 36, 45
- Connector Codes: 01 (with protector), 02 (standard), 03 (armored)
- Approval Codes: 00 (None), CN (China), RU (Russia), 05 (Hazard zones)
