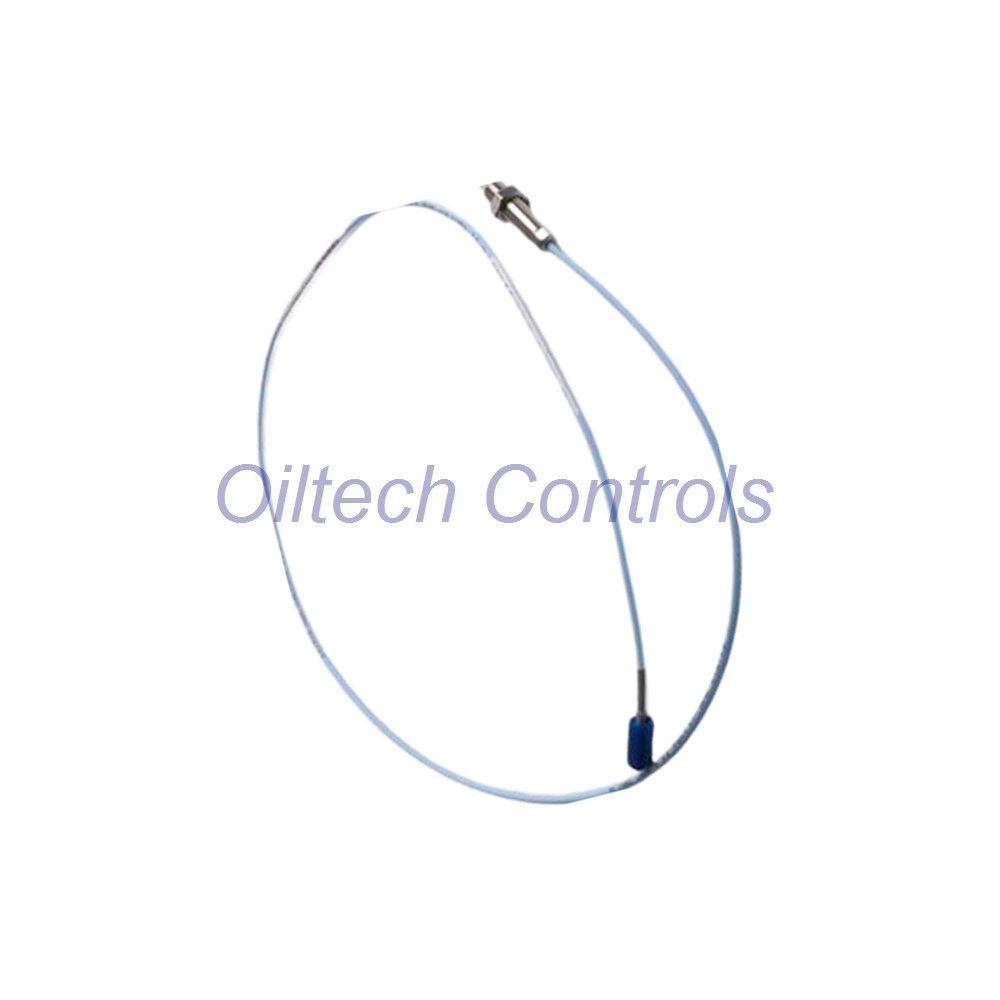

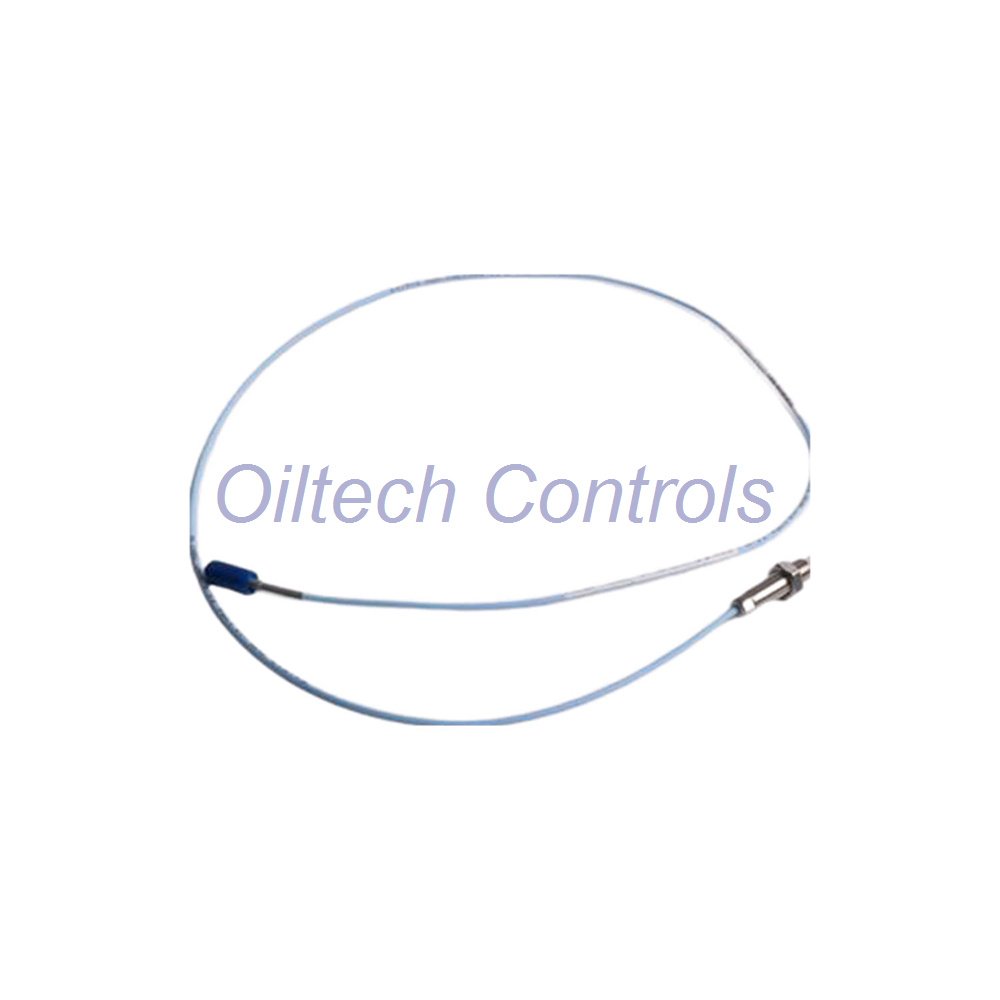

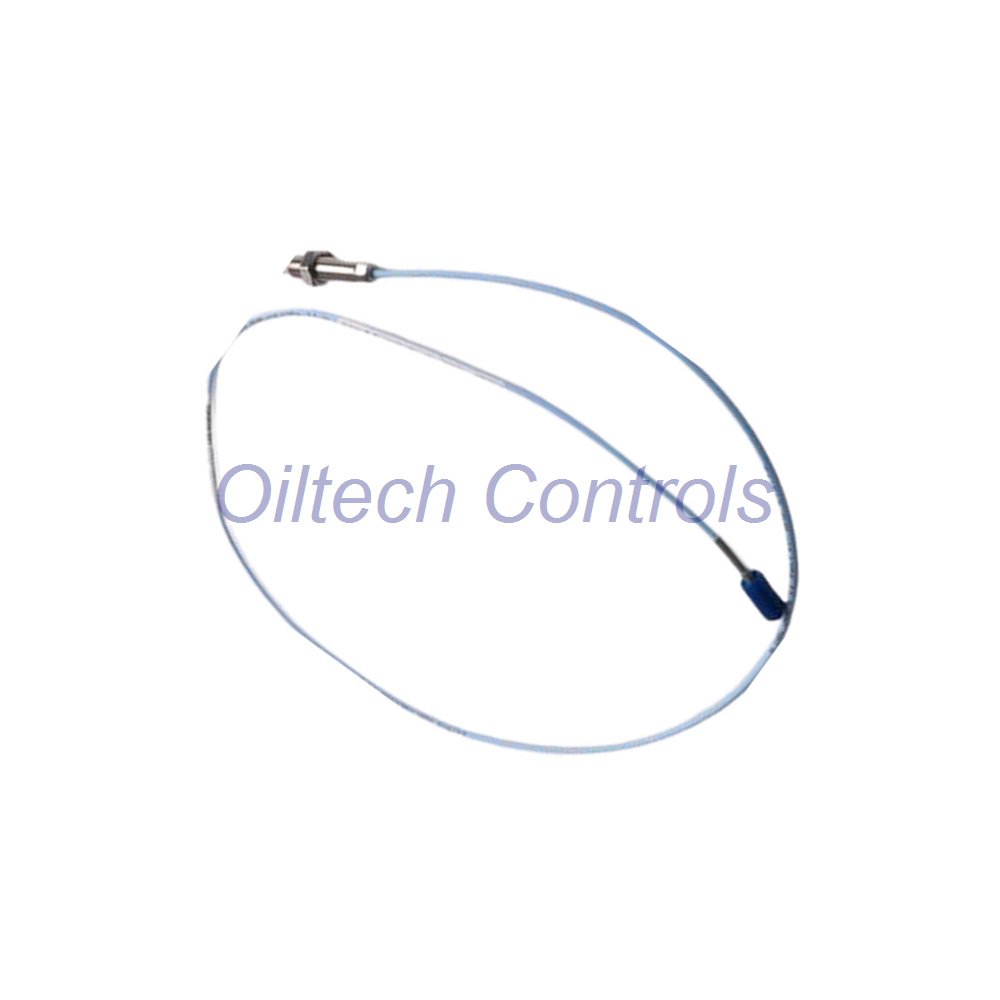

330908-00-30-10-01-05 Bently Nevada 3300 NSv Proximity Probe | In Stock | Fast Delivery
Reliable shaft vibration monitoring for rotating machines.
The 330908-00-30-10-01-05 sensor is designed by Bently Nevada for accurate machine condition monitoring.
It is part of the 3300 XL NSv Proximity Probes family.
This probe offers strong performance in industrial vibration monitoring systems.
Tip: Download the installation manual before setup. It helps confirm probe gap and wiring details.
Product Summary
- Brand: Bently Nevada
- Part Number: 330908-00-30-10-01-05
- Series: 3300 NSv proximity probe
- Thread Type: 3/8-24 UNF
- Condition: New and original
- Warranty: 12 months
- Package: Factory sealed
Configuration Breakdown
- 330908
- 3300 NSv probe platform
- Standard probe design
- No armored cable
- 00
- No unthreaded extension
- Flush mounting design
- 30
- Probe housing length
- 3.0 inch case size
- 10
- Total probe cable length
- 1 meter cable
- 01
- Miniature ClickLoc connector
- Connector protector included
- Standard coaxial cable
- 05
- Multiple international approvals
- Suitable for regulated industries
Measurement Capability
- Linear range: 1.5 mm
- Recommended probe gap: 1.0 mm
- Signal output range: approx −1 to −13 Vdc
- Scale factor: 7.87 V/mm
- Linearity error: less than ±0.06 mm
- Frequency response: 0 to 10 kHz
- Maximum field wiring length: 305 meters
Electrical Characteristics
- Probe resistance: 4.2 ± 0.5 Ω
- Center conductor resistance: 0.220 Ω/m
- Cable shield resistance: 0.066 Ω/m
- Cable capacitance: 69.9 pF/m typical
- Recommended wiring: shielded triad cable
Mechanical Construction
- Probe tip: PPS material
- Probe body: AISI 304 stainless steel
- Cable insulation: FEP high-temperature insulation
- Minimum bend radius: 25.4 mm
- Sealing element: Viton O-ring
Environmental Limits
- Operating temperature: −52°C to +177°C
- Storage temperature: −52°C to +177°C
- Maximum thread engagement: 0.563 in
- Recommended torque: 7.5–11.3 N·m
- Maximum torque rating: 33.9 N·m
Diagnostic Functions
- Detect shaft vibration levels.
- Measure radial shaft movement.
- Track rotor imbalance.
- Monitor axial displacement.
- Support predictive maintenance programs.
Typical Equipment Applications
- Steam turbines
- Gas turbines
- Centrifugal compressors
- Industrial pumps
- High-speed motors
- Oil and gas process equipment
Expert Review
- The NSv design offers higher chemical resistance.
- It is widely used in compressor systems.
- The compact probe fits narrow installation points.
- ClickLoc connectors simplify maintenance work.
- Reliable performance in long-term vibration monitoring.
Shipping and Warranty
- 100% original factory product
- Factory sealed package
- 12-month warranty
- Fast dispatch within 24–48 hours
- Worldwide delivery via FedEx, UPS, DHL
Professional FAQ
- How do I confirm the correct probe gap during installation?
- Use a calibrated feeler gauge. Set the gap close to the recommended 1 mm distance.
- Can this probe be used in chemical processing plants?
- Yes. The NSv design has improved resistance to chemicals compared with older models.
- What happens if the probe cable is bent too tightly?
- Tight bending may damage the internal conductor. Always keep the minimum bend radius.
- How can I reduce signal loss in long cable installations?
- Use shielded triad cables and avoid routing near high-power equipment.
- Which machines benefit most from this probe?
- High-speed rotating equipment such as compressors, turbines, and industrial pumps.
