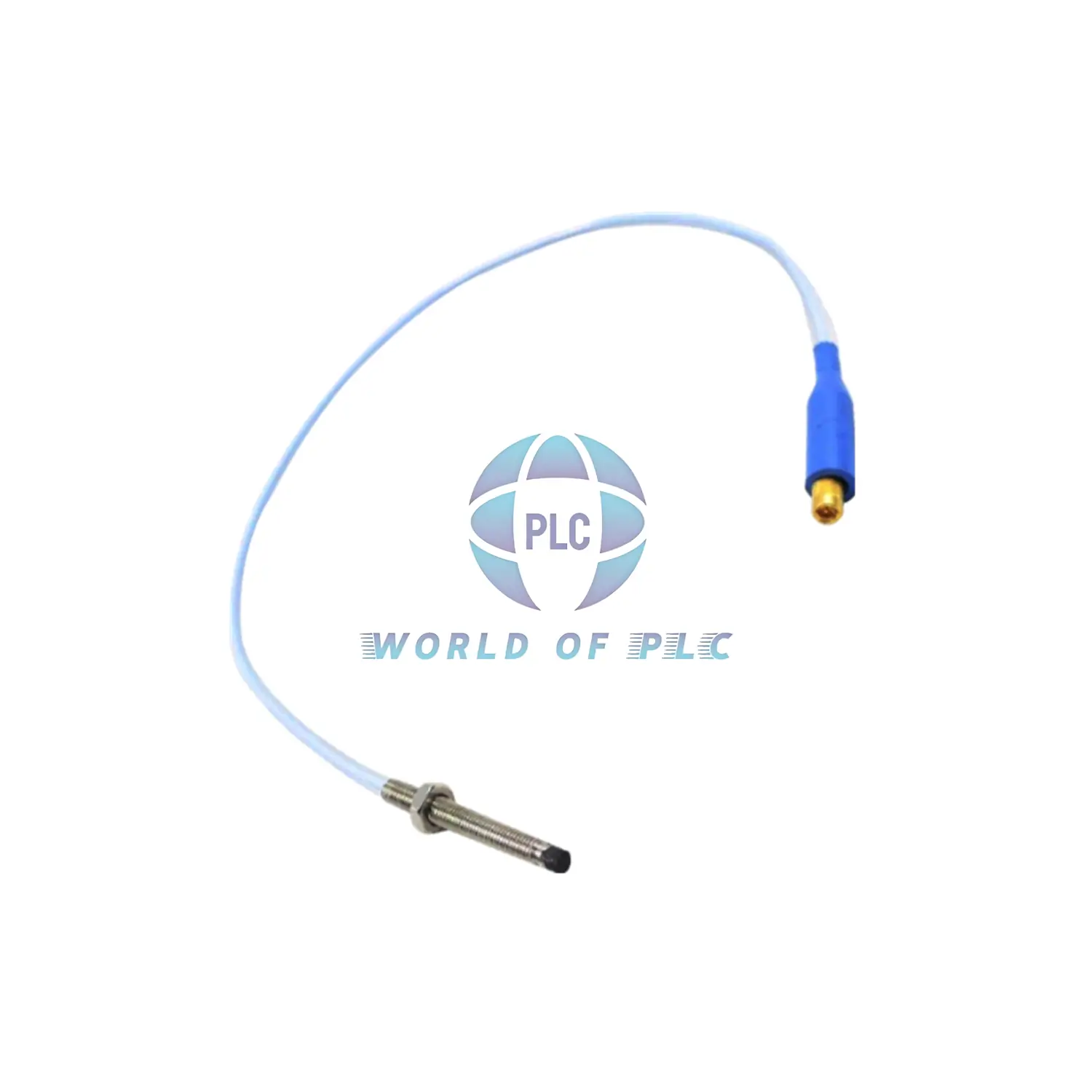

3300 NSv Short Body Proximity Probe – Compact Vibration Sensing
U.S. Made • 1.6-inch compact case • 1.2-inch unthreaded section • Industrial-grade reliability
Core Specifications
- Complete Model: 330908-12-16-10-02-00
- Case Length: 1.6 inches
- Unthreaded Section: 1.2 inches
- Cable Length: 1.0 meter (39 inches)
- Connector Type: ClickLoc coaxial
- Resistance: 4.2Ω ±0.5
Model Breakdown
- Base: 330908 (3/8-24 UNF thread)
- Option 12: 1.2″ unthreaded length
- Option 16: 1.6″ case length
- Option 10: 1.0m cable
- Option 02: ClickLoc connector
- Option 00: No agency approvals
Performance Data
- Temperature Range: -62°F to +351°F
- Max Torque: 300 in-lb
- Recommended Torque: 100 in-lb
- Thread Engagement: 0.563 max
- Seal Material: Viton O-ring
- Weight: 0.5-5.3 oz
Compact Design Benefits
- Fits tight spaces
- Easy installation in confined areas
- 1.2″ smooth section for sensor alignment
- Ideal for small machinery
Technical FAQ
- Q: Can this probe measure shaft position?
A: Yes, designed for vibration and position measurement - Q: Is the cable replaceable?
A: Yes, with matching ClickLoc connectors - Q: Suitable for high-speed motors?
A: Yes, rated for industrial rotating equipment - Q: Chemical resistance rating?
A: PPS tip resists most industrial chemicals - Q: Warranty coverage?
A: 12 months against manufacturing defects
Compare Similar Models
| Model | Case Length | Threaded Section | Details |
|---|---|---|---|
| This Probe | 1.6 inches | Partial (1.2″ unthreaded) | Compact design |
| 330908-00-31-10-02-05 | 3.1 inches | Fully threaded | Longer reach |
| 330908-00-18-10-02-05 | 1.8 inches | Fully threaded | Shorter body |
Documentation Download
Get complete installation and technical details:
