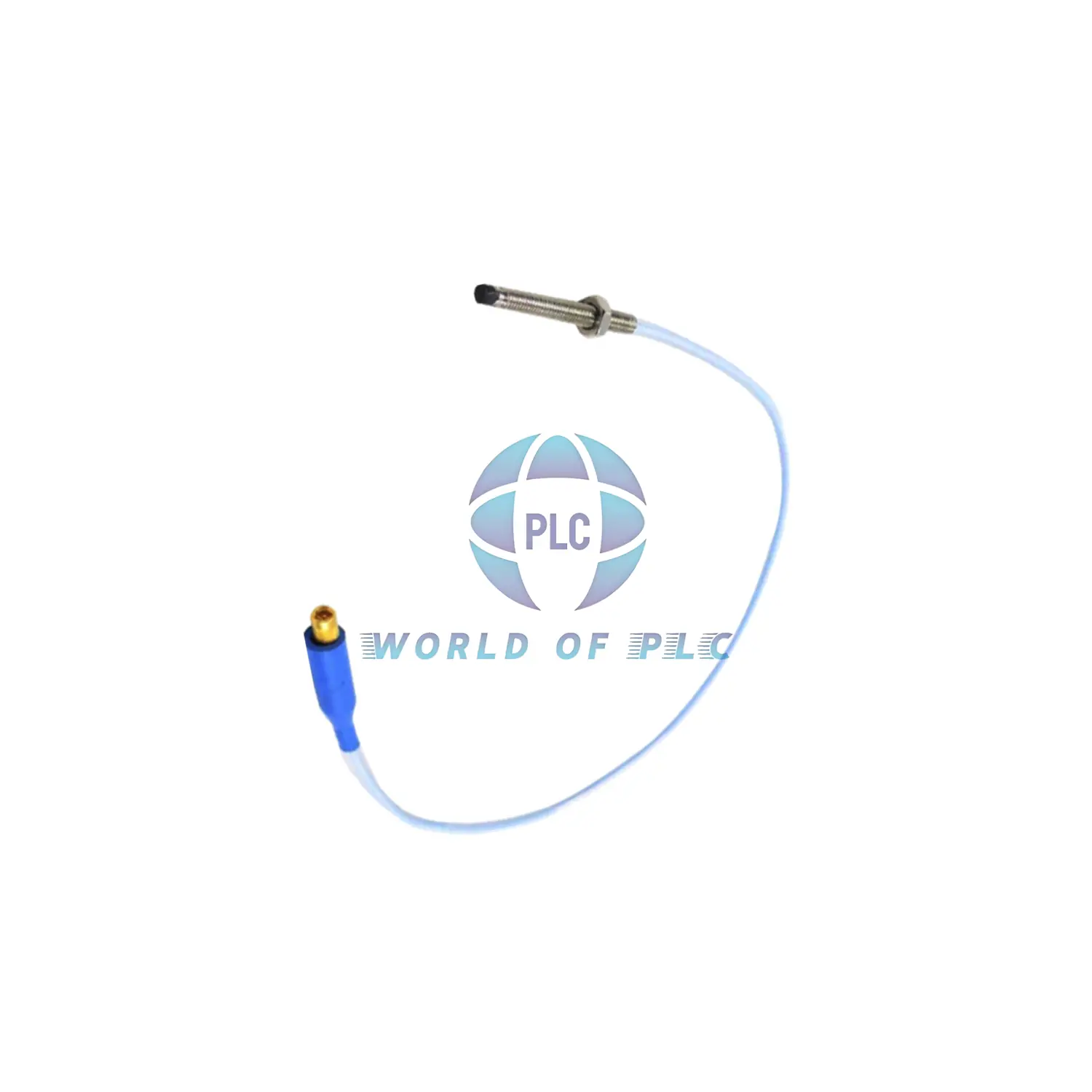

3300 NSv Proximity Probe – Precision Industrial Vibration Sensing
Made in USA • High-accuracy shaft vibration measurement • Robust stainless steel construction • Flexible 1.0m cable
Product Description
The 3300 NSv Proximity Probe detects precise vibration in industrial machinery. Featuring a 3/8-24 UNF threaded case with PPS polymer tip, it delivers reliable performance in harsh environments. The probe includes a miniature ClickLoc connector and FEP-insulated coaxial cable for signal integrity.
Technical Specifications
- Brand/Model: 3300 NSv Probe 330908-12-20-10-02-00
- Case Material: AISI304 stainless steel
- Tip Material: Polyphenylene sulfide (PPS)
- Cable: 75Ω coaxial, 1.0 meter length
- Temperature Range: -52°C to +177°C (operating & storage)
- Resistance: 4.2Ω ±0.5 (center to outer conductor)
- Weight: 14-150g (0.5-5.3oz)
Installation Guide
- Max Torque: 33.9 N•m (300 in•lb)
- Recommended Torque: 11.3 N•m (100 in•lb)
- Thread Engagement: Max 0.563 inch
- ⚠️ Avoid temperatures below -34°C for extended periods
Certifications & Warranty
- Agency Approvals: Not required (Option 00)
- 12-month warranty
Shipping & Packaging
- Package Includes: 1x Probe, Documentation
- Carriers: FedEx, UPS, DHL
- Pressure Seal: Viton O-ring (not pressure-tested)
FAQ
- Q: Cable length options?
A: Available in 0.5m, 1m, 5m, 7m - Q: Minimum operating temperature?
A: -52°C but avoid sustained use below -34°C - Q: Thread compatibility?
A: 3/8-24 UNF or M10X1 metric equivalent
Get Full Documentation
Download complete technical specifications and installation guide:
