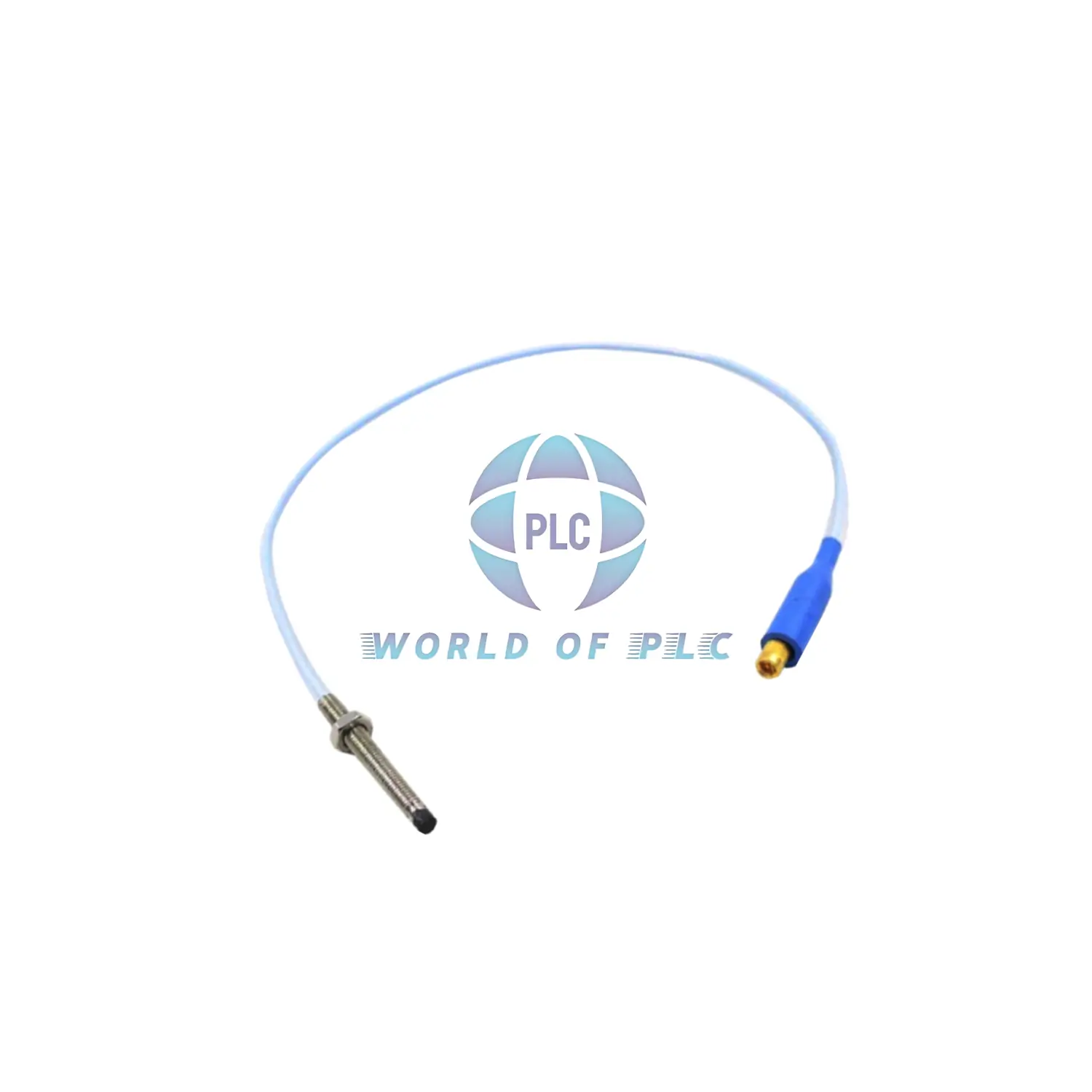

330908-12-31-70-02-00 3300 NSv Proximity Probes Without Armor

Extended Reach Precision Probe 330908-12-31-70-02-00: 7m Cable + Alignment Flexibility

American Engineered • 3.1-inch body with positioning zone • 23-foot monitoring range • Industrial vibration specialist

Core Product Advantages

• Positioning Flexibility: 1.2-inch unthreaded section
• Extended Monitoring: 7-meter cable reach
• Rugged Construction: Stainless steel housing
• Precision Sensing: PPS tip material

Technical Performance

• Electrical Characteristics
  • Cable Resistance: 5.9Ω ±0.9
  • Impedance: 75Ω coaxial
  • Cable Type: FEP-insulated
• Physical Dimensions
  • Case Length: 3.1 inches
  • Unthreaded Section: 1.2 inches
  • Weight: 0.5-5.3 oz
• Environmental Ratings
  • Operating Range: -62°F to +351°F
  • Seal Type: Viton O-ring
  • Thread Engagement: 0.563 max

Model Number Structure

• Base Identifier
  • 330908: Standard probe design
• Configuration Options
  • 12: 1.2″ unthreaded length
  • 31: 3.1″ case length
  • 70: 7.0m cable
• Connection & Compliance
  • 02: ClickLoc connector
  • 00: No approvals required

Expert FAQs

• Q: Why the unthreaded section?
  A: Allows precise positioning before final tightening
• Q: Signal quality at 7m distance?
  A: Maintains accuracy with 75Ω impedance design
• Q: Chemical resistance of housing?
  A: SST304 resists most industrial corrosives
• Q: Installation torque specifications?
  A: 100 in-lb recommended (300 in-lb max)
• Q: Vibration measurement range?
  A: 0-10kHz standard industrial coverage

Support & Documentation

Access complete technical resources:

• Vibration Specifications Sheet
