330908-12-36-05-02-05 3300 NSv Proximity Probes Without Armor

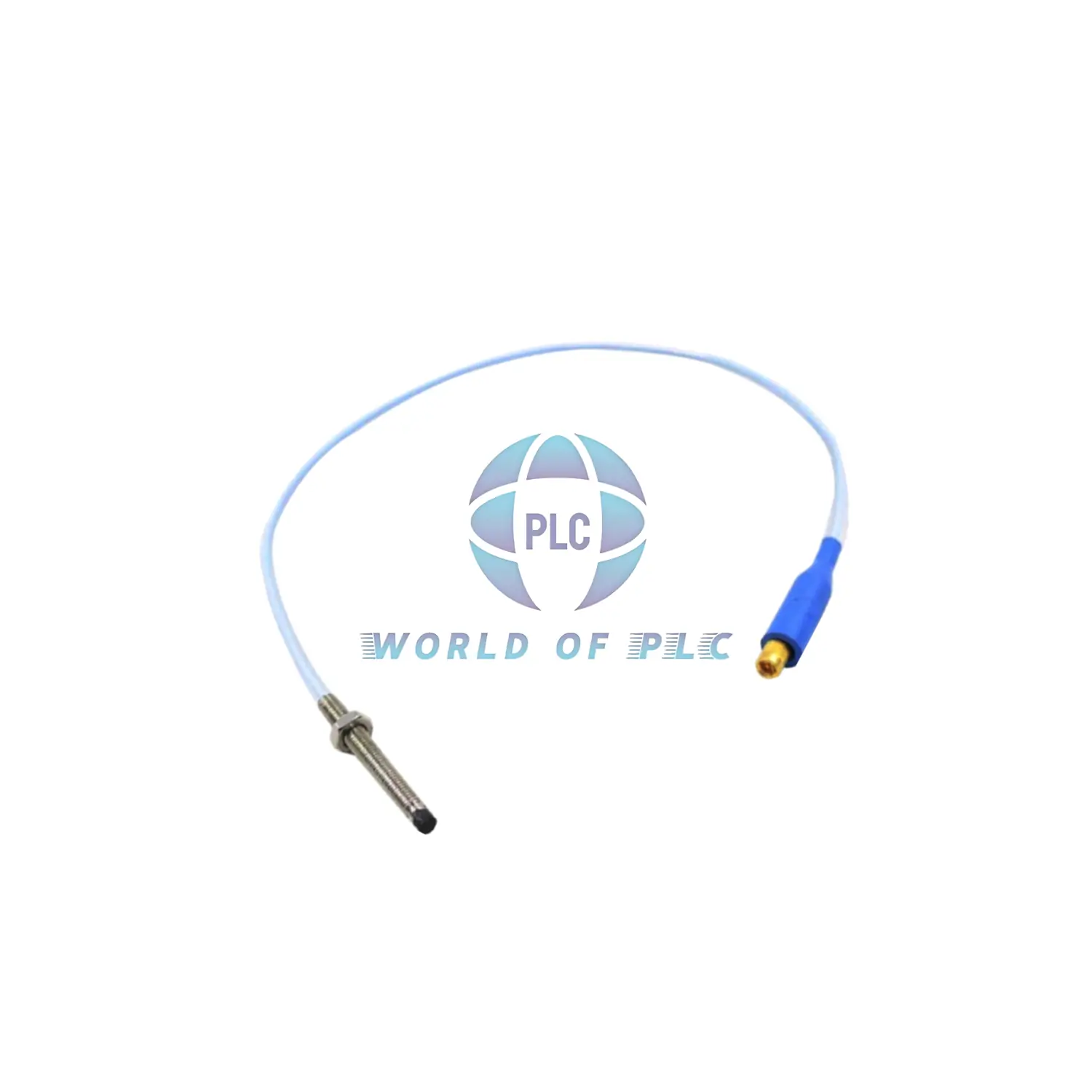

Bently Nevada 330908-12-36-05-02-05 3300 NSv Proximity Probe

Overview

The Bently Nevada 330908-12-36-05-02-05 is a compact proximity probe from the 3300 NSv series. It is designed for industrial equipment with tight mounting areas. This model includes a 3/8-24 UNF threaded body and no armor.

Technical Specifications

• Sensing Range: ±0.5 mm
• Linear Range: 0.25 to 1.25 mm
• Sensitivity: -7.87 mV/μm
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 stainless steel
• Cable Type: 75 Ω coaxial, FEP insulation
• DC Resistance (0.5 m): 4.0 ± 0.5 ohms
• Temperature Range (Operating): -52°C to +177°C
• Temperature Range (Storage): -52°C to +177°C
• Sealing: Viton O-ring pressure seal
• Weight: 14 to 150 g

Installation Instructions

• Thread Size: 3/8-24 UNF
• Max Thread Engagement: 0.563 in
• Recommended Torque: 11.3 N·m (100 in·lb)
• Max Torque: 33.9 N·m (300 in·lb)
• Mounting: Use direct threaded port on machinery

Model Suffix Breakdown

• 330908 = 3300 NSv Probe, 3/8-24 UNF thread, without armor
  • 12 = Unthreaded Length: 1.2 in
  • 36 = Overall Case Length: 3.6 in
  • 05 = Cable Length: 0.5 m (20 in)
  • 02 = Connector: Miniature coaxial ClickLoc, standard cable
  • 05 = Agency Approvals: Multiple approvals

Compatibility

• Works with 3300 NSv Proximitor Sensors
• Supports standard extension cables of 1, 5, or 7 meters
• Fits tight-access rotating equipment

Warranty and Delivery

• Warranty: 12 Months
• Delivery Options: FedEx, UPS, DHL
• Dispatch: Typically ships within 1–2 business days
