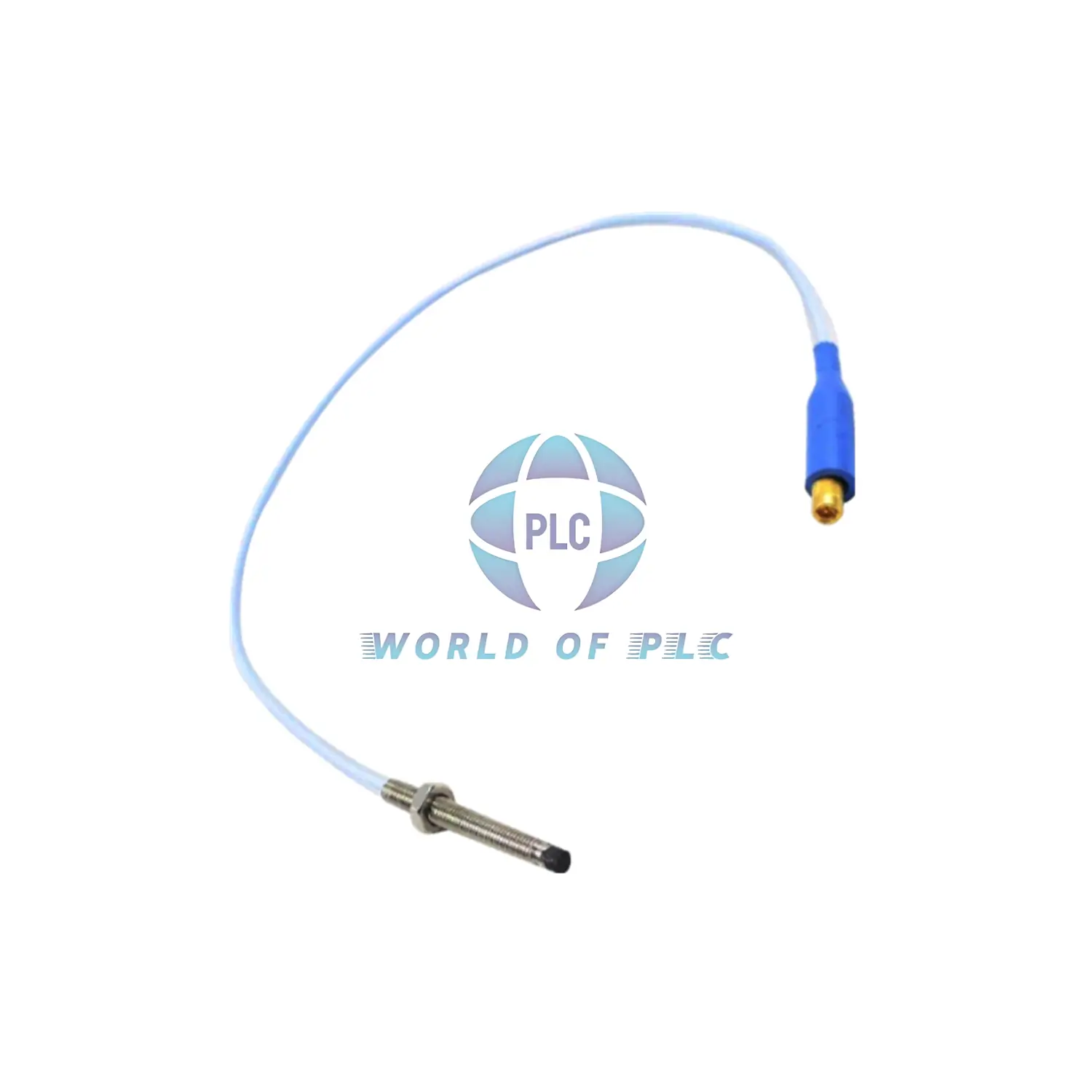

3300 NSv Extended Length Proximity Probe – Deep Installation Solution
U.S. Manufactured • 3.6-inch extended case • 1.2-inch unthreaded section • Multiple global approvals
Key Specifications
- Complete Model: 330908-12-36-10-02-05
- Case Length: 3.6 inches
- Unthreaded Zone: 1.2 inches
- Cable: 1.0 meter FEP-insulated
- Electrical Resistance: 4.2Ω ±0.5
- Temperature Range: -62°F to +351°F
Suffix Code Structure
- Base Model
- 330908: Standard probe body
- Length Options
- 12: 1.2″ unthreaded section
- 36: 3.6″ total case length
- 10: 1.0m cable length
- Connection & Approval
- 02: ClickLoc connector
- 05: Multiple agency approvals
Performance Details
- Max Torque: 33.9 N•m (300 in•lb)
- Recommended Torque: 11.3 N•m (100 in•lb)
- Thread Depth Limit: 0.563 inch
- Seal Material: Viton O-ring
- Weight: 14-150 grams
- Cable Type: 75Ω FEP coaxial
Professional FAQ
- Q: What approvals does option 05 include?
A: Multiple international safety certifications - Q: Minimum installation clearance needed?
A: Case length + 1 inch for connector access - Q: Compatible with hazardous areas?
A: Yes, with proper approval documentation - Q: Cable extension possibilities?
A: Use approved coaxial extensions only - Q: Pressure rating for Viton seal?
A> Designed for industrial pressures (not tested)
Download Technical Documents
Access complete installation and specification files:
