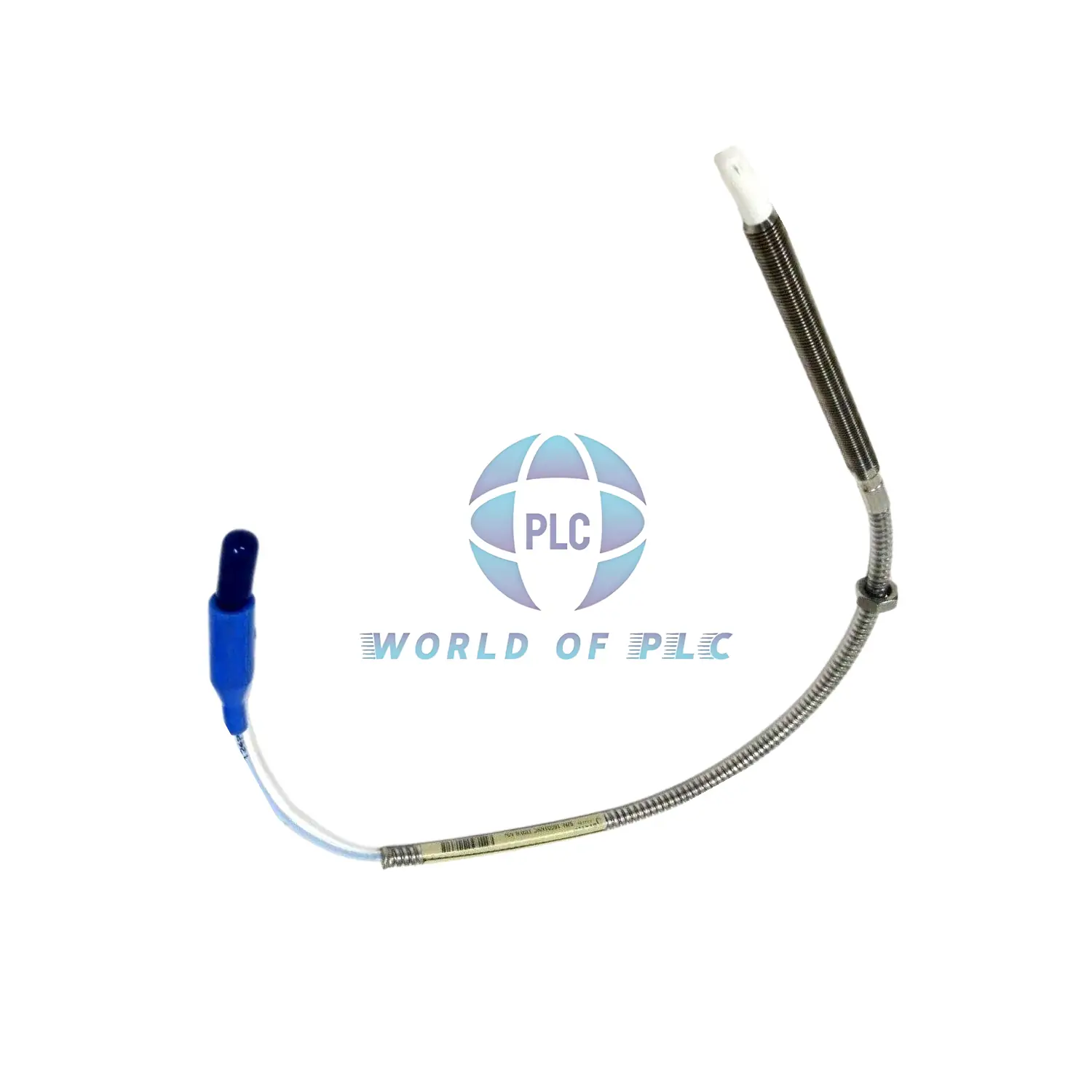

330909-00-20-10-02-00 With armor – 3300 NSv Proximity Probes

Bently Nevada 3300 NSv Probe: Compact Vibration Monitoring

Essential Features

New U.S.-made 330909-00-20-10-02-00 vibration probe. Ultra-short 2-inch case with 3/8-24 UNF threads. Works from -52°C to +177°C (-62°F to 351°F). Ideal for tight spaces.

Model Number Breakdown

330909 → Base model
-00   → 0.0 inch unthreaded length
-20   → 2.0 inch case length
-10   → 1.0 meter cable
-02   → Miniature ClickLoc connector
-00   → No agency approvals required

Technical Specifications

• Thread Specifications: 3/8-24 UNF
• Max Thread Depth: 0.563 inch
• Electrical Resistance: 4.2Ω ±0.5Ω
• Case Material: Stainless steel (AISI 304)
• Probe Tip: PPS plastic
• Cable Type: 75Ω coaxial FEP
• Weight Range: 0.5-5.3 oz (14-150g)
• Pressure Seal: Viton O-ring design

Installation Guide

Torque Settings:
Max: 300 in-lb (33.9 N•m)
Recommended: 100 in-lb (11.3 N•m)
Note: Avoid temperatures below -34°C (-30°F) for long periods

Package Details

Factory-sealed probe with connector. 12-month warranty. Ships via FedEx, UPS, or DHL with tracking.

Common Questions

• Q: What does “no agency approvals” mean?
  A: No special certifications – standard industrial use
• Q: Minimum installation depth?
  A: Threads require minimum 0.25 inch engagement
• Q: Compatible with all systems?
  A: Works with standard 75Ω vibration monitors
• Q: Waterproof rating?
  A: Seals against moisture but not submersible

Download Resources

Get installation guide and specs: 3300 XL NSv Proximity Transducer System Datasheet
