330930-045-02-00 | Bently Nevada – 3300 NSv Extension Cable

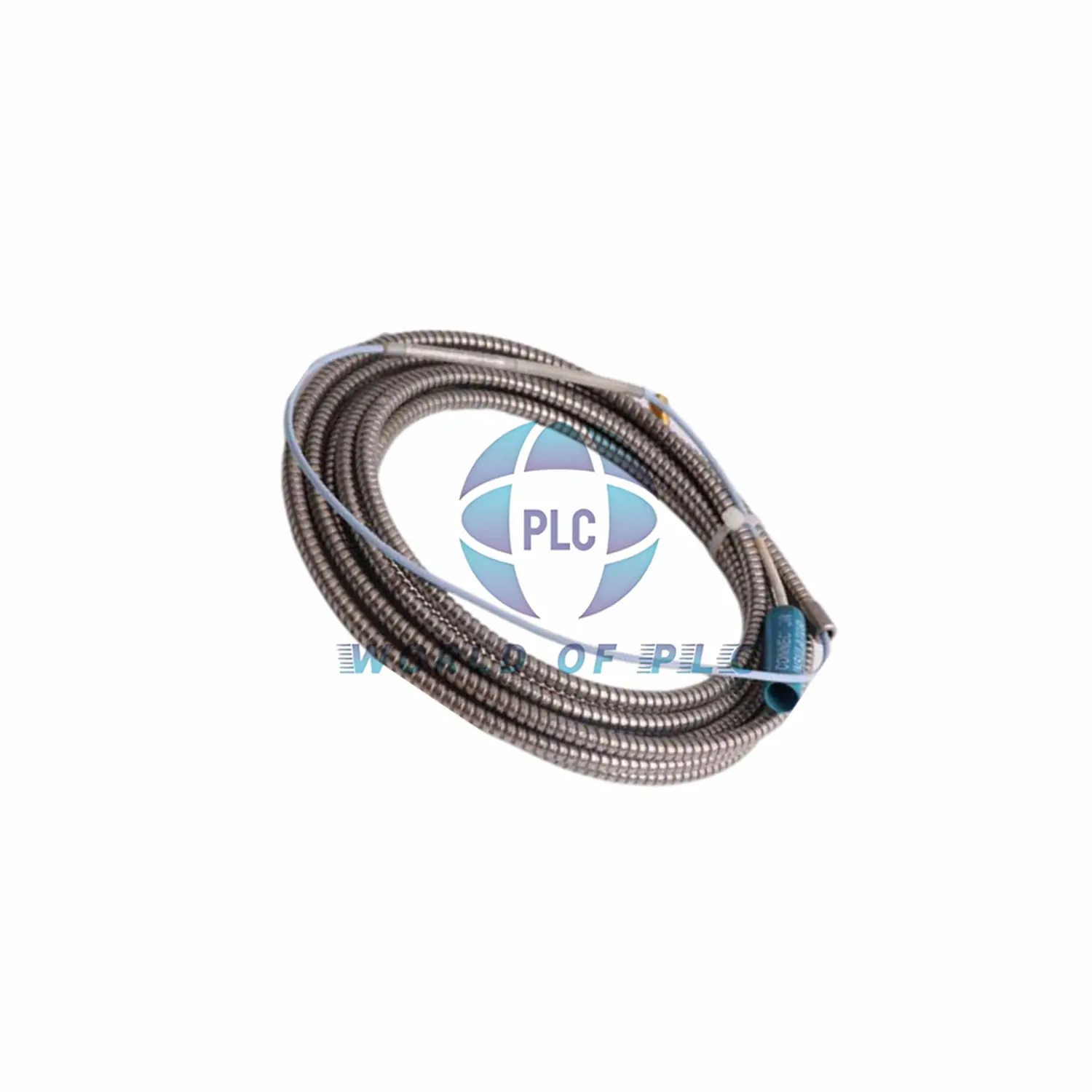

Bently Nevada 330930-045-02-00 Extension Cable – 4.5m Armored

Model Number Breakdown

• 330930 – Base part number
• 045 – 4.5 meter length (14.8 ft)
• 02 – Stainless steel armor, no FEP jacket
• 00 – No agency approvals required

Key Features

• 4.5 meter length (14.8 feet)
• Stainless steel armored for protection
• Wide temperature range (-51°C to +177°C)
• 75Ω coaxial FEP insulated cable
• Gold-plated brass connectors

Technical Specifications

• DC resistance: 0.220 Ω/m (center), 0.066 Ω/m (shield)
• Capacitance: 69.9 pF/m typical
• Tensile strength: 220N (50lb) at all connection points
• Wire size: 0.2-1.5mm² (16-24 AWG)
• Max field wiring: 305m (1000ft)
• Linear range: 1.5mm (60 mils)
• Recommended gap: 1.0mm (40 mils)
• Shipping weight: 1.5kg

Compatibility

• Works with 3300 XL NSv Proximitor Sensors
• Must match total cable + probe length
• For industrial vibration monitoring systems

Our Guarantee

• 12-month product warranty
• Defect-free promise
• Quick replacement service

Shipping Options

• FedEx International
• UPS Worldwide
• DHL Express

Expert Questions

• Q: Can this cable be used outdoors?
  A: Yes, it’s rated for extreme temperatures from -51°C to +177°C.
• Q: What’s the maximum pull force?
  A: 220N (50lb) at all connection points.
• Q: Does it need special connectors?
  A: No, uses standard gold-plated brass connectors.
• Q: Can I cut the cable to shorter length?
  A: No, this will affect performance – order correct length.
• Q: Is the armor waterproof?
  A: The stainless armor provides mechanical protection but isn’t waterproof.
