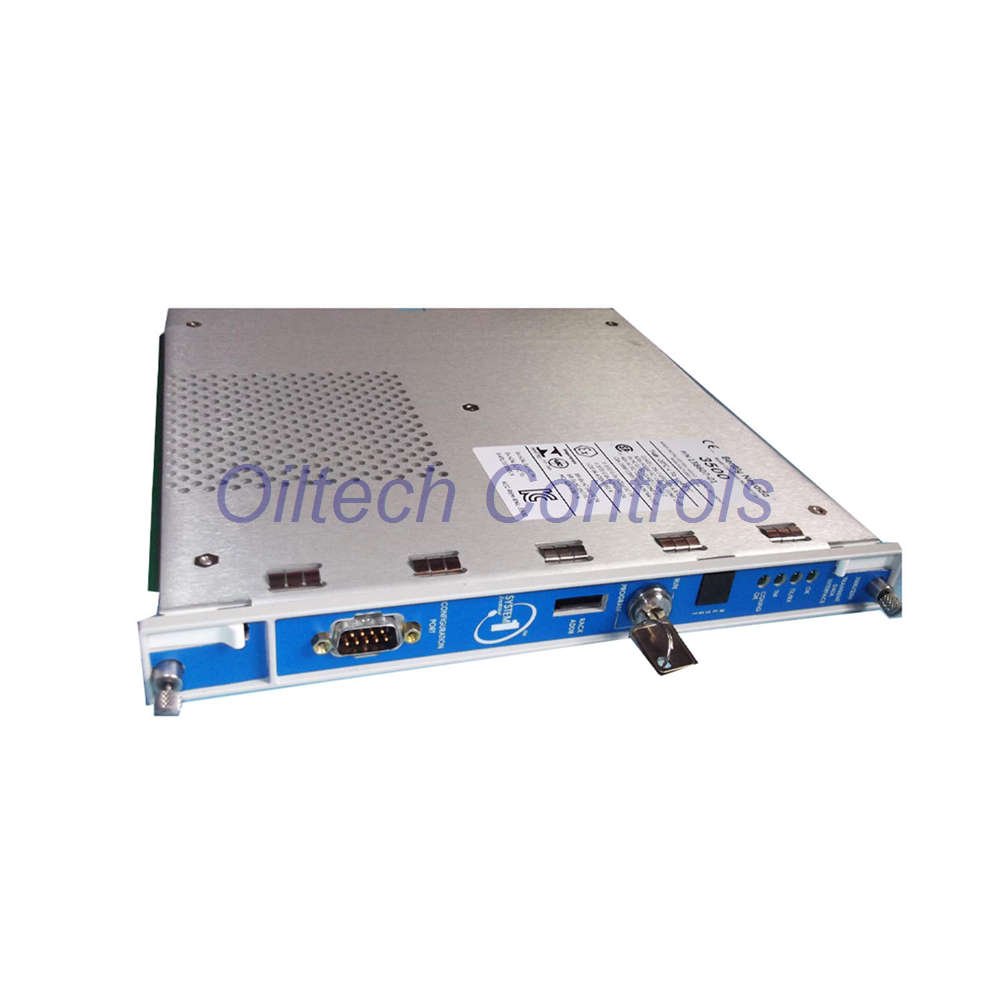

3500/22M-01-01-00 Transient Data Interface Module
The 3500/22M-01-01-00 is the primary gateway for the Bently Nevada 3500 Machinery Protection System. This Transient Data Interface (TDI) module bridges rack communications with external software suites. It enables seamless data flow between system monitors and high-level analytical platforms like System 1.
Configuration Breakdown
The 3500/22M ordering hierarchy is structured for modular flexibility:
- 3500/22M-AA-BB-CC
- AA (TDI Type): 01 = Standard (Core monitoring applications)
- BB (I/O Module): 01 = 10Base-T/100Base-TX Ethernet I/O
- CC (Approval): 00 = None (Standard)
Technical Specifications
| Power Consumption | 10.5 Watts |
| Operating Temp | -30°C to +65°C |
| Communication | 10/100Base-TX Ethernet (RJ-45) |
| USB Interface | Front Panel USB-B (Max 5m cable) |
Oiltech Controls Limited Insight
Engineers rely on the 3500/22M-01-01-00 for deterministic data handling. It is the heart of the 3500 rack. Our team identifies this module as essential for diagnosing complex turbomachinery vibration, such as shaft orbits and transient waterfall plots.
Applications & Diagnostic Power
- Target Assets: Large steam/gas turbines, centrifugal compressors, and high-load motors.
- Diagnostic Ability: High-speed transient data acquisition for post-event mechanical failure analysis.
Professional FAQ
Why is the OK Relay Normally Energized?
It is a failsafe design. If the module loses power, the contact opens, signaling an immediate rack fault condition.
What is the benefit of the local USB-B port?
It allows for rapid, direct configuration changes in the field without needing to access the plant’s primary Ethernet network.
How does the Rack Reset function help?
It provides a manual override to clear latched alarms and Timed OK channel defeats without requiring a system power cycle.
Should I select Fiber Optic I/O?
Opt for fiber only if the facility has high electromagnetic interference or distances exceeding 100 meters.
Is the 3500/22M suitable for non-critical assets?
While powerful, it is most cost-effective when applied to critical assets requiring long-term transient data history.
Warranty & Logistics
- Warranty: Comprehensive 12-month quality guarantee.
- Global Delivery: Secure shipping via FedEx, UPS, and DHL.
Contact Us
Technical inquiries: info@oiltechcontrols.com
WhatsApp Support: +86 158 8020 0923
