Product Snapshot

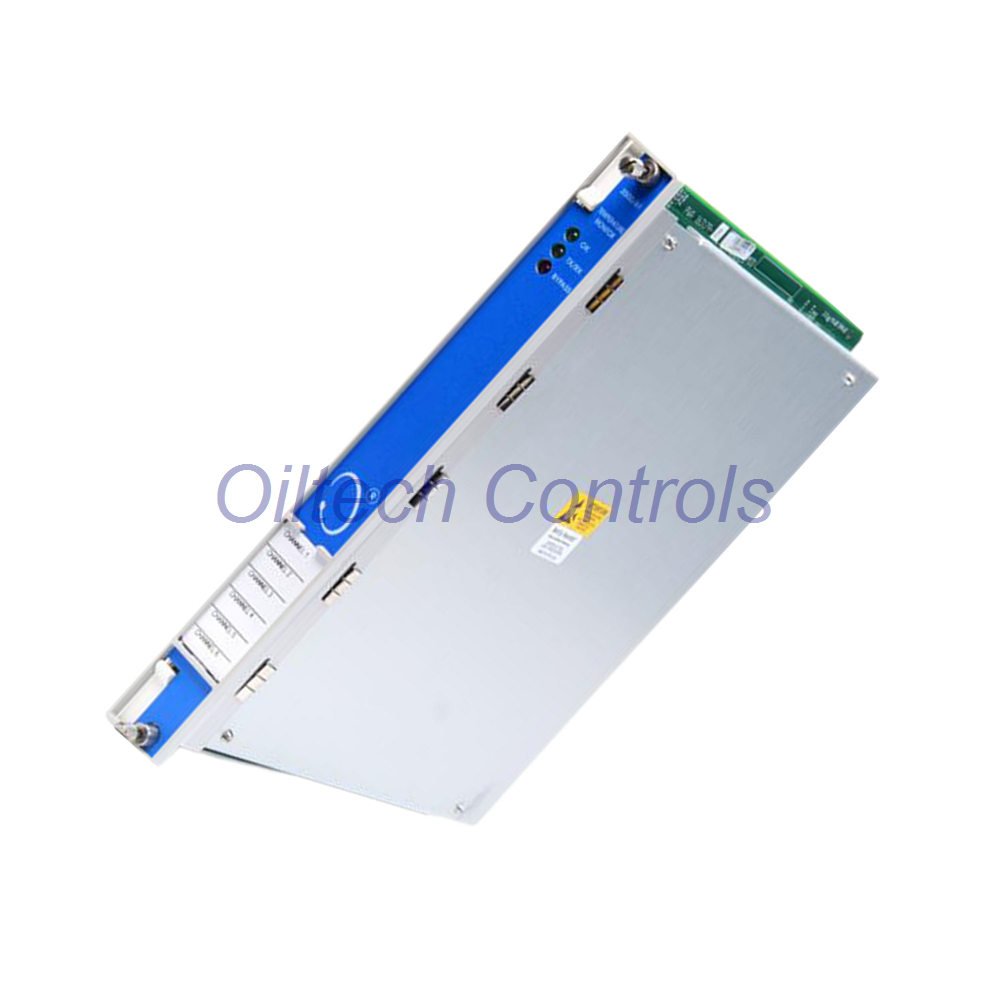

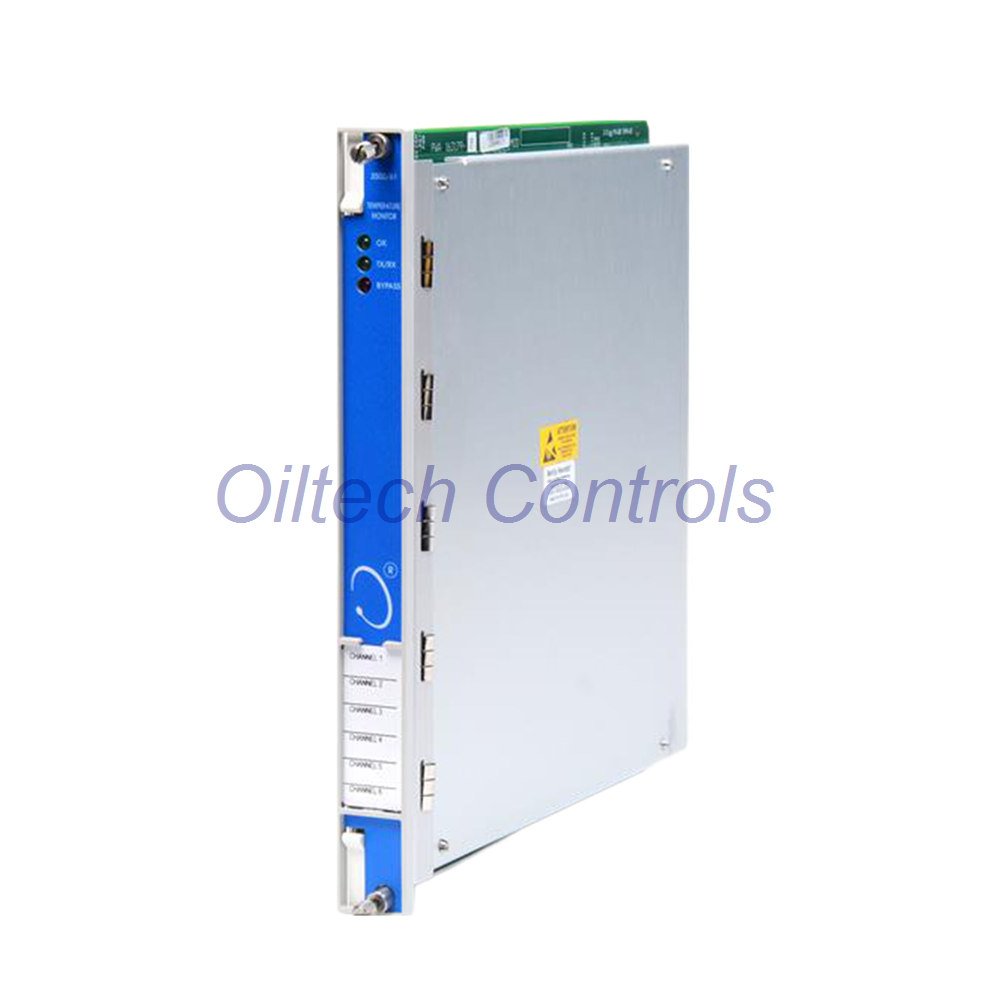

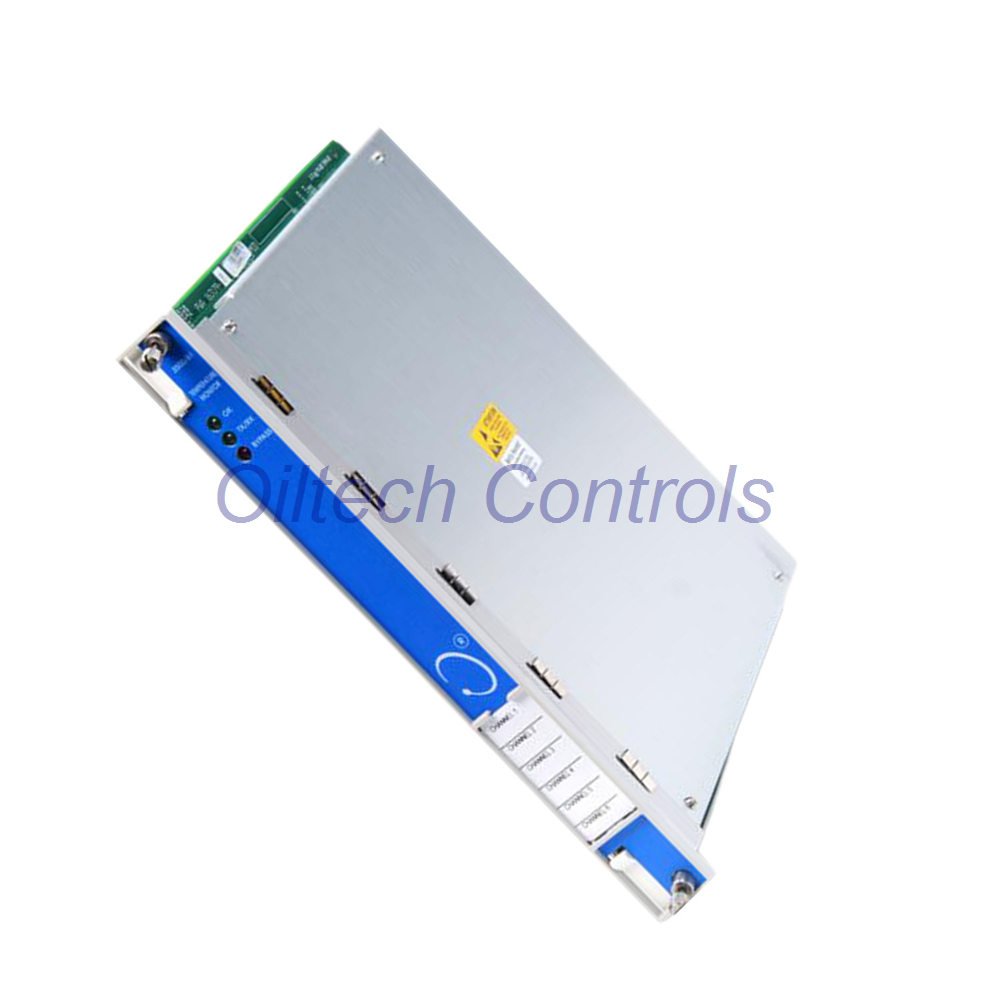

Model: 3500/61-02-01
Product Type: Temperature Monitor with Recorder Outputs
Manufacturer: Bently Nevada
Origin: Made in U.S.A
Condition: New & Original
Warranty: 12 Months
Why Choose This Monitor
- Handles RTD and thermocouple signals in one unit
- Stable 4–20 mA recorder outputs per channel
- High input accuracy for critical temperature points
- Designed for continuous duty in 3500 racks
- CSA/NRTL approved for Class I Div 2 sites
Configuration Breakdown
- Main Monitor
- ↳ Series: 3500/61
- ↳ Channels: 1 to 6 temperature inputs
- ↳ Power Use: 9 W nominal
- I/O Module
- ↳ Type: RTD / TC Non-isolated
- ↳ Termination: External wiring
- ↳ Input Impedance: 10 MΩ per lead
- Approval Option
- ↳ CSA / NRTL / C
- ↳ Class I, Division 2
Supported Sensors
- Thermocouples
- ↳ Type E: -100°C to +1000°C
- ↳ Type J: -18°C to +760°C
- ↳ Type K: -18°C to +1370°C
- ↳ Type T: -160°C to +400°C
- RTDs
- ↳ 100Ω Platinum (α 0.00385): -200°C to +850°C
- ↳ 100Ω Platinum (α 0.00392): -200°C to +700°C
- ↳ 120Ω Nickel: -80°C to +260°C
- ↳ 10Ω Copper: -100°C to +260°C
Electrical & Output Data
- Recorder Output: +4 to +20 mA per channel
- Load Resistance: 0–600 Ω
- Voltage Compliance: 0–12 Vdc
- RTD Current Source: 925 ±15 µA @ 25°C
- Resolution: 0.3662 µA per bit
Isolation & Accuracy
- System Isolation: 500 Vdc
- Channel-to-Channel: 250 Vdc
- Accuracy (typical): ±1°C to ±3°C @ 25°C
- Repeatability: Better than ±0.1% FS
Status Indicators
- OK LED – normal operation
- TX/RX LED – rack communication
- Bypass LED – channel bypass active
Shipping & Handling
- Worldwide delivery via FedEx / UPS / DHL
- Anti-static and shock-protected packing
- Fast order processing for urgent needs
Professional FAQ
How many sensors can one module handle?
Up to six RTD or thermocouple inputs per monitor.
Is isolation always required?
No. Isolation is for fault cases, not normal operation.
Which RTD type is best for most plants?
100Ω platinum RTD (α 0.00385) is the industry standard.
Can recorder outputs be shorted?
Yes. Short circuits do not affect monitor operation.
What should buyers confirm before ordering?
Sensor type, channel count, and hazardous area needs.
