Product Description

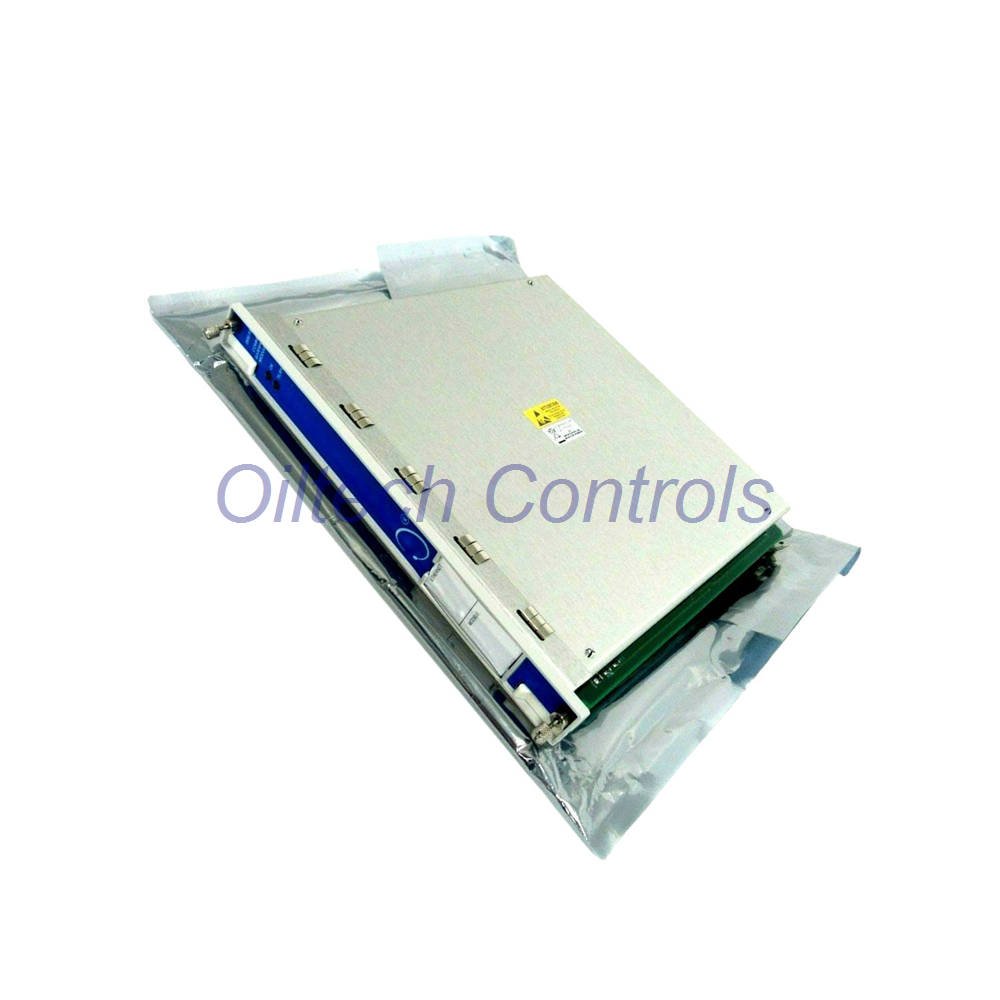

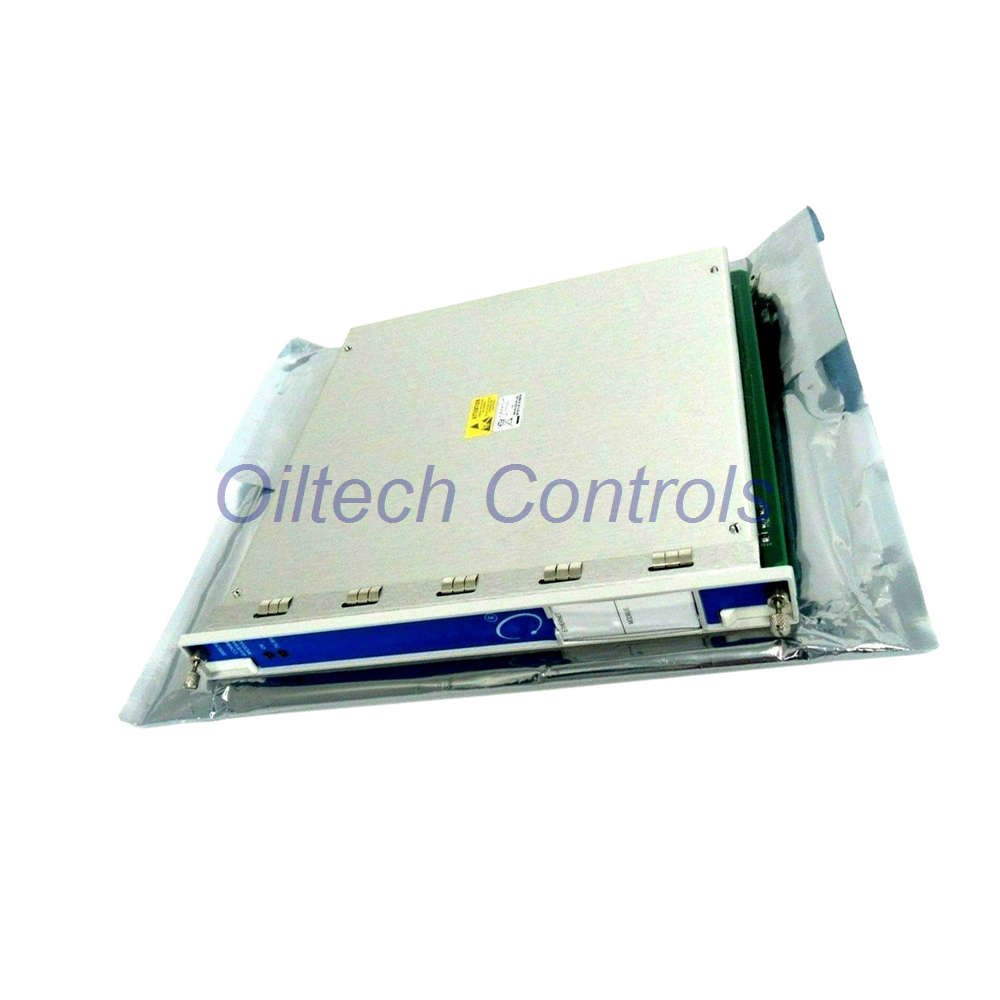

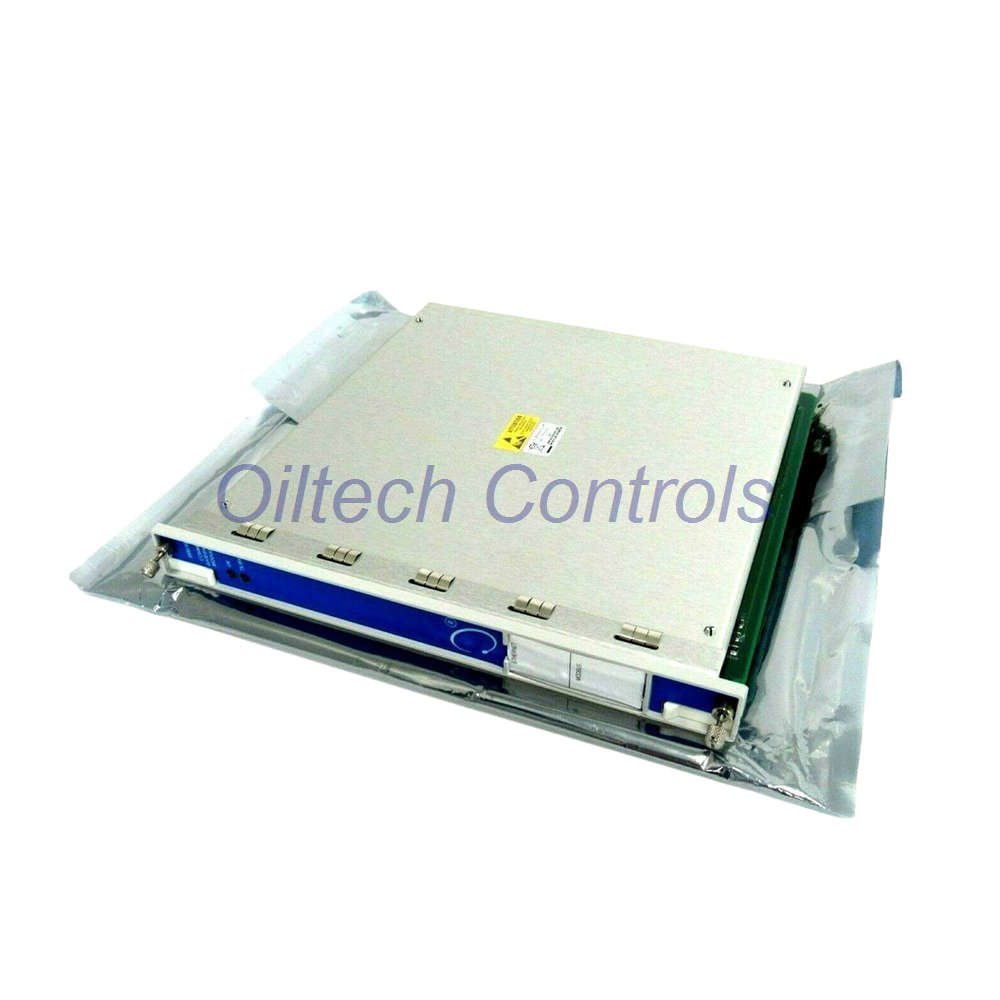

The Bently Nevada 3500/92-04-01-00 (part number 136188-02) is a high-speed communication gateway.
This 3500 Series module provides direct digital network interfaces for machinery protection systems.
It translates internal rack data into industry-standard industrial automation protocols automatically.
The hardware allows external control systems to access critical asset health parameters seamlessly.
It establishes reliable Modbus links to streamline plant-wide distributed control architectures.
For inventory availability or bulk pricing, contact info@oiltechcontrols.com.
Configuration Breakdown & Part Number Structure
The model code structure for the 3500/92-04-01-00 module breaks down as follows:
- 3500/92 — Core Series: Ethernet/RS485 Modbus Communication Module
- -04 — I/O Module Type Option: Modbus RS485 I/O Module
- -01 — Hazardous Area Approval Option: CSA/NRTL/C (Class I, Division 2)
- -00 — Reserved Option: No special configuration modifications
- 136188-02 — Factory Part Number: Specific Modbus RS485 I/O circuit board assembly
Technical Specifications
| Functional Category | Engineering Performance Specification |
|---|---|
| Brand and Model Designation | Bently Nevada 3500/92-04-01-00 / 136188-02 |
| Data Collection & Update Rate | Collects variables within 1 second across all active internal rack cards. |
| Protocol Implementations | Supports BNC Host Protocol (TCP/IP), Modbus RTU, and Modbus/TCP formats. |
| Physical Interface Layout | Equipped with standard RJ-45 telephone jack connection style for 10BASE-T link. |
| Power Consumption Metrics | Draws 5.6 Watts typical when configured with active RS485 serial circuits. |
| Thermal Operating Limits | Maintains strict physical operation from -30°C to +65°C (-22°F to +149°F). |
| Environmental Humid Resistance | Functions reliably up to 95 percent relative humidity environment, non-condensing. |
| Hardware Dimensions & Slot | Measures 241 mm x 24.4 mm x 99.1 mm; uses 1 full-height rear slot. |
| Industrial Compliance Marks | Meets FCC Part 15, EMC Directive 2014/30/EU, and CE EN 61000-6-4 standards. |
| Maritime Class Certifications | Certified under DNV GL shipping rules and ABS Steel Vessels rules. |
Oiltech Controls Limited’s Insight
The Bently Nevada 3500/92-04-01-00 solves a critical engineering bottleneck in old-generation legacy processing facilities.
It eliminates the need for complex, slow analog re-transmission loops by digitizing the entire rack data map.
Our field audits show that the internal high-speed network buffer protects processor cycles from external communication delays.
Unlike basic serial bridges, this card handles time-stamped alarm states without degrading machinery safety response loops.
Engineering teams must ensure that their Modbus master polling intervals match the internal 1-second register update cycles.
Target Equipment, Applications & Diagnostics
This communication interface operates across several industrial machinery classes, including:
- Large-scale power generation steam turbines and high-speed gas turbine generators.
- Multi-stage centrifugal process compressors used in petrochemical refining plants.
- Main oil pipeline transmission pumps and heavy-duty water injection equipment.
The diagnostic subsystem decodes several critical machine health parameters simultaneously:
- Transmits instantaneous measured values paired with precise internal UTC time stamps.
- Monitors individual channel OK status bits to detect field transducer wiring faults.
- Broadcasts active Alert and Danger alarm flags directly to local SCADA graphics.
Logistics, Packaging & Warranty Terms
- The product ships inside robust, static-shielded industrial packaging to preserve internal component integrity.
- Our standard warehouse dispatch includes the main communication card along with its specific RS485 I/O module.
- We provide accelerated global transit using premier air couriers including FedEx, UPS, and DHL Express.
- Oiltech Controls Limited backs this hardware assembly with a comprehensive 12-month replacement warranty policy.
Frequently Asked Questions (FAQ)
What is the primary difference between the -04 option and serial options?
The -04 suffix specifies a dedicated RS485 physical interface block rather than RS232, altering power consumption to 5.6 Watts.
How does the module prevent external communication loads from affecting machinery protection?
It utilizes an independent, isolated internal high-speed backplane network to separate safety execution functions from protocol traffic.
What cabling standard must our technicians follow for the Ethernet connection port?
The module accepts standard RJ-45 connectors wired for 10BASE-T networking links conforming to the IEEE 802.3 standard framework.
Can we access rack configuration parameters through the Modbus registers directly?
No, Modbus registers only serve dynamic values and statuses; configuration edits require BNC Host Protocol over Ethernet links.
How should we handle protocol timeout settings on our master PLC during commissioning?
Set your PLC polling timeouts above 1 second because the module updates its entire register map every 1000 milliseconds.
Technical Documentation Access
Get immediate access to product manuals and installation guides:
- Review the Modbus register map document before mapping your PLC database variables.
- Download the mounting instructions to clarify rear chassis space tolerances.
- Access the maritime type-approval certificates to fulfill site engineering file compliance.
For urgent engineering assistance, call our support line at +86 158 8020 0923.
