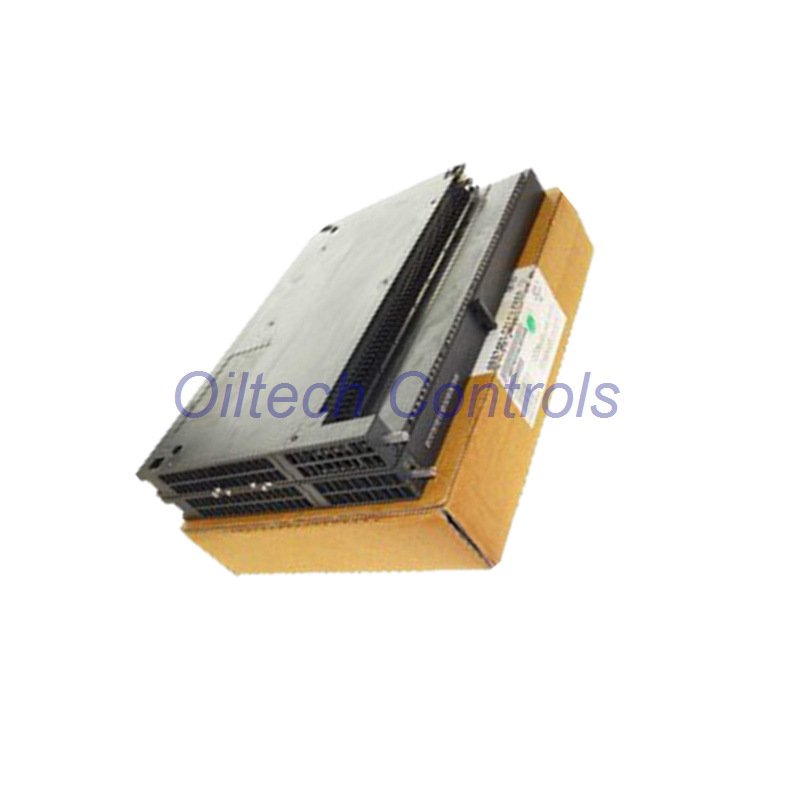

6ES7455-0VS00-0AE0 S7-400 FM 455 C 16 Ch Control Module

6ES7455-0VS00-0AE0 – SIMATIC S7-400 Control Module FM 455 C

High-density 16-channel continuous controller with 8/16 AI, 16 DI, and 16 AO. Designed for complex closed-loop tasks in S7-400 systems. Supports TC, Pt100, 0/4..20mA, and ±10V signals. 14-bit resolution, parameterizable integration time, and built‑in linearization.

Oiltech Controls’s Insight

• Best for: Continuous process control in chemical, power, and water treatment plants.
• Compatible with: SIMATIC S7-400 CPUs (e.g., 6ES7416, 6ES7417).
• Key advantage: 16 independent PID controllers on one module – saves rack space and engineering effort.
• Our experience: This module excels in applications requiring fast analog I/O and multiple control loops.

Technical Overview – At a Glance

• Brand: Siemens | Model: 6ES7455-0VS00-0AE0 | Series: SIMATIC S7-400
• Analog inputs: 16 (TC or 2-wire) / 8 (Pt100 or 4-wire) – destructive limit 20V / 40mA
• Analog outputs: 16 (voltage or current) – short-circuit protected
• Digital inputs: 16 (24V DC, type 2 per IEC 61131)
• Input ranges: 0..10V, -1.75..11.75V, ±80mV; 0/4..20mA, ±23.5mA
• Output ranges: 0..10V, ±10V; 0/4..20mA, ±20mA
• Resolution: 12 or 14 bit (parameterizable) with overrange
• Accuracy: 0.4..0.6% (basic) / 0.6..1% (operational over full temp)
• Power loss: typ. 12 W / max. 17.3 W
• Supply: 24V DC (20.4..28.8V), reverse polarity protected

Installation & Wiring

• Mounting: S7-400 rack – width 50 mm, height 290 mm, depth 210 mm.
• Front connector: 2x 48‑pin (required, not included).
• Cable length (shielded): 1000 m (DI), 200 m (AI/AO), 50 m for 80mV or TC.
• Unshielded DI cable: up to 600 m.
• Encoder support: 2‑wire and 4‑wire transmitters, Pt100, thermocouples.

Diagnostics & Interrupts

• Substitute values parameterizable for fail‑safe operation.
• Diagnostics via LED and software (wire‑break, overrange).
• Potential separation: channels isolated from backplane bus (optocoupler).
• Isolation tested: 500 V DC.

Integrated Control Technology

• 16 closed‑loop controllers (PID) – each with configurable parameters.
• Linearization: for TC types B, J, K, R, S and Pt100.
• Temperature compensation: internal or external via Pt100.
• Settling time: 0.1 ms (resistive), 3.3 ms (capacitive), 0.5 ms (inductive).

Environmental & Certifications

• Operating temp: 0..60 °C (horizontal), 0..40 °C (vertical).
• Protection class: IP20 – suitable for control cabinet.
• CE, UL, CSA (standard for Siemens S7‑400).

Typical Applications

• Continuous process control (chemical, petrochemical).
• Temperature and pressure loop control with TC/Pt100.
• Actuator and valve positioning via 4..20mA outputs.
• Replacement or upgrade in existing S7‑400 systems.

5 Professional FAQ – Experience & Selection Guide

• Q: Can this module replace a failed FM 455 C directly?
• A: Yes, same order number. Check your firmware version – we can verify compatibility.
• Q: Do I need external temperature compensation?
• A: Internal compensation is sufficient for most cases. Use external Pt100 for high precision.
• Q: What is the typical update rate for 16 loops?
• A: Depends on integration time – at 20ms integration, approx. 50ms per loop. We can optimize.
• Q: Can I use unshielded cables for digital inputs?
• A: Yes, up to 600m. For analog and TC, always use shielded.
• Q: Which S7‑400 CPUs work best with this module?
• A: CPUs with sufficient process image and memory – e.g., 416‑2, 417‑4. We can advise.

Why Buy From Oiltech Controls?

• 15+ years in industrial automation spares.
• Global shipping – FedEx, UPS, DHL (24‑28h dispatch).
• Tested surplus / refurbished with full function check.
• 12‑month warranty and technical verification before shipment.
• Expert support for obsolete control systems.

Shipping: World‑wide via FedEx, UPS or DHL. Tracking provided. 24‑28 hours handling time.

Packaging: ESD‑safe anti‑static packaging.

Warranty: 12 months against defects. Conditions apply.
