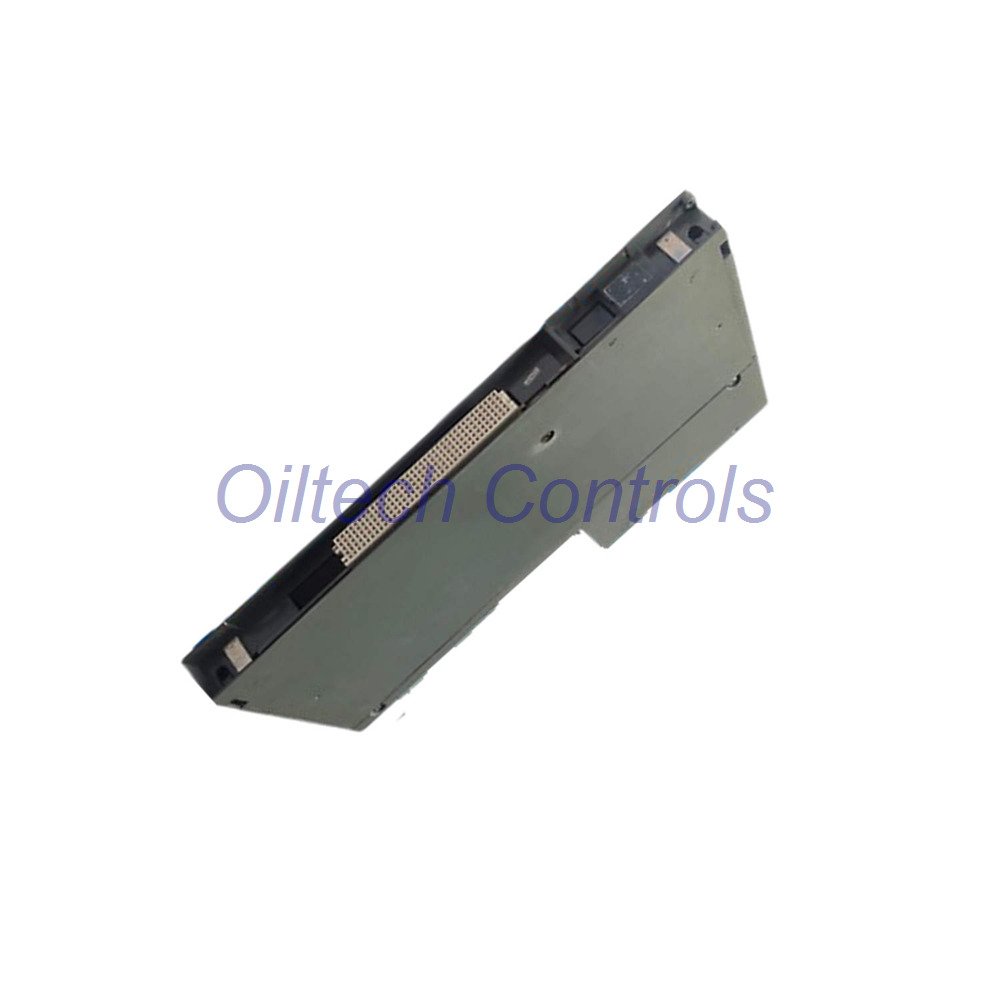

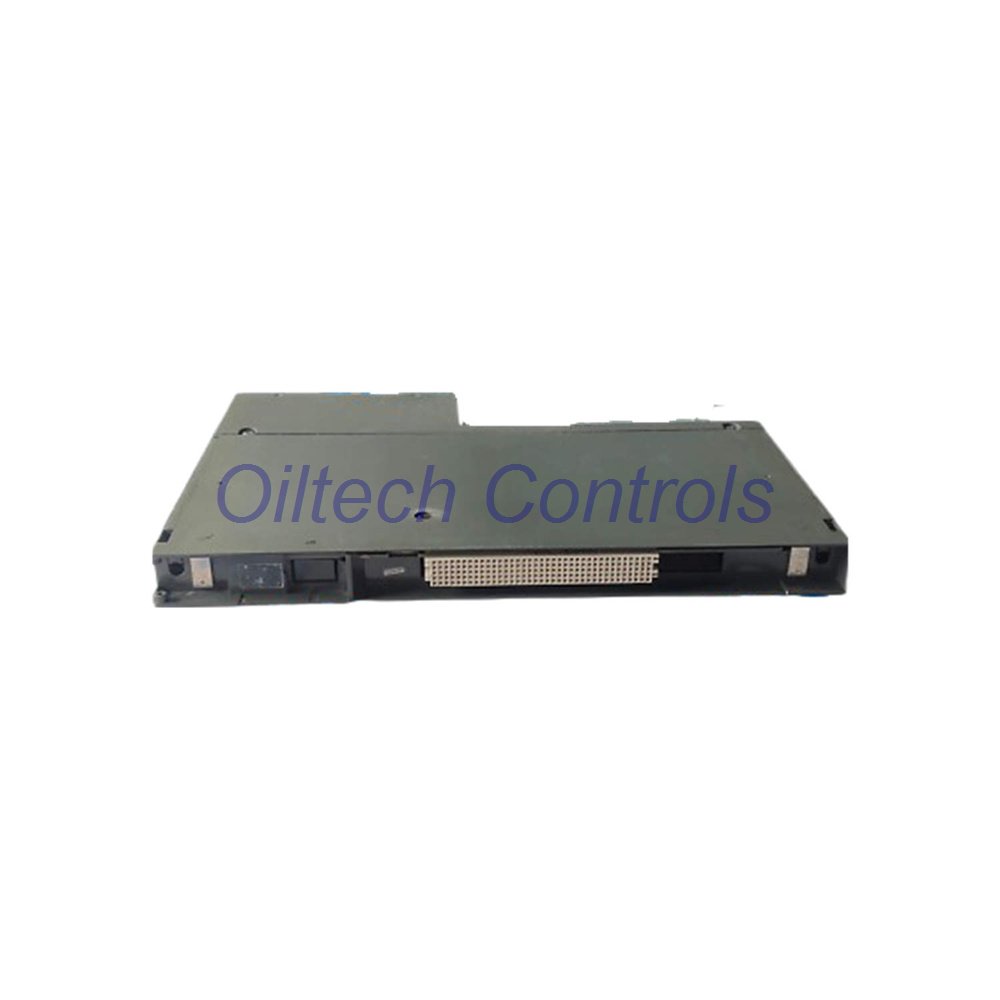

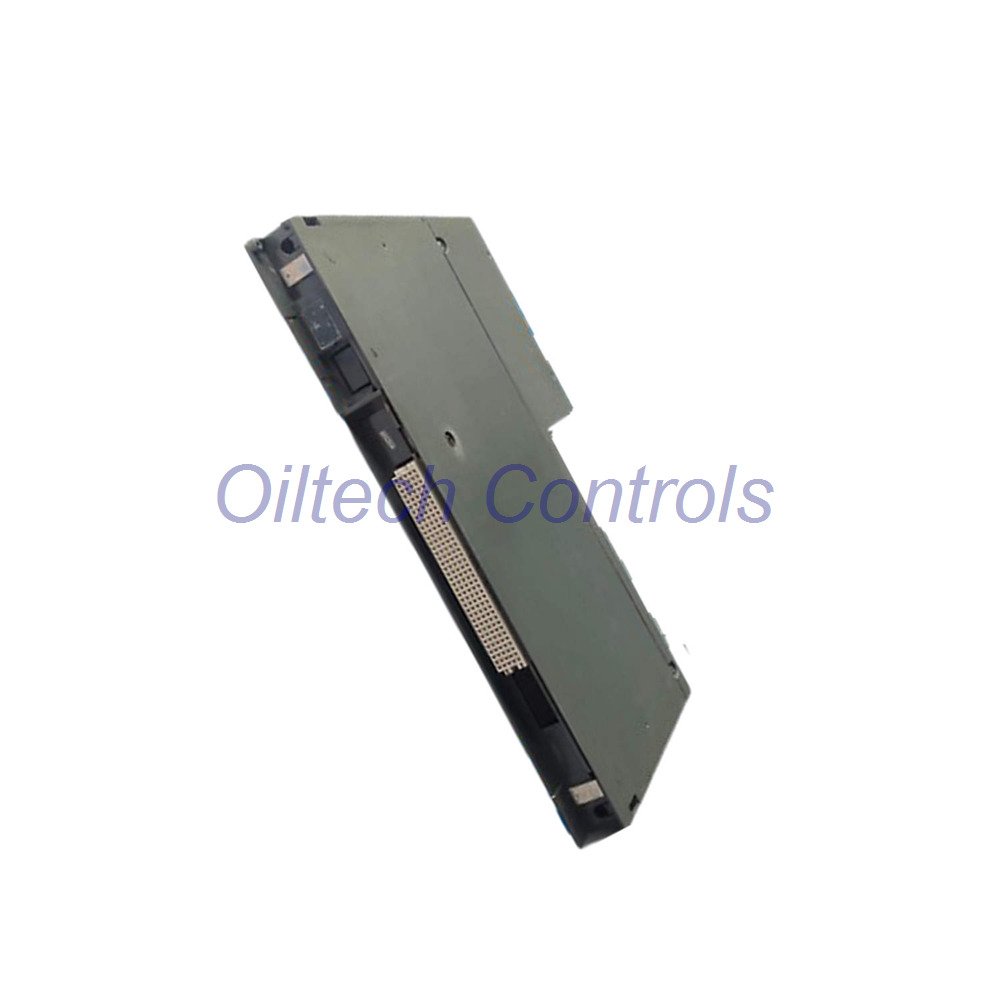

6ES7463-2AA00-0AA0 Siemens IM463-2 Module

6ES7463-2AA00-0AA0 Siemens SIMATIC S7-400 IM463-2 Transmitter Interface Module

The 6ES7463-2AA00-0AA0 IM463-2 transmitter interface module enables direct, high-speed connection from SIMATIC S7-400 controller backplanes to legacy SIMATIC S5 expansion racks. This dedicated interface preserves existing S5 I/O hardware infrastructure, allowing phased system migrations without re-wiring field devices. It communicates reliably over long distances up to 600 meters using physical IM314 interface adapters.

To access complete pinout configurations and wiring diagrams, please download the 6ES7463-2AA00-0AA0 engineering manual here.

Key Technical Specifications

• Hardware Family: Siemens SIMATIC S7-400 system architecture.
• Module Function: Transmitter interface module (IM463-2) for S5 expansion connections.
• Maximum Distance: Up to 600 meters total cable length from first to last interface module.
• Power Supply: Backplane bus draws 5 V DC with a maximum input current of 1320 mA.
• Form Factor: Single-slot width of 25 mm, height of 290 mm, and depth of 217 mm.
• Physical Mass: Compact design with an approximate physical weight of 360 grams.

Oiltech Controls’s Insight

• Provides an essential hardware bridge for legacy plant upgrades, eliminating the high costs of complete I/O replacement.
• Guarantees robust signal integrity over extended runs up to 600m, shielding critical communication lines from electromagnetic noise.
• Saves significant commissioning hours by enabling direct S5 expansion rack configuration within step 7 programming software.

Compatible Hardware Devices

• Siemens SIMATIC S7-400 central controller racks (UR1, UR2, or CR modules).
• Siemens SIMATIC S5 expansion racks containing active IM314 interface receivers.
• Standard orange S5/S7 shielded copper interface connecting cables.

Shipping, Warranty & Logistics

• Shipping Lead Time: Guaranteed dispatch within 24 to 28 hours from order confirmation.
• Express Couriers: Global delivery via top-tier networks including FedEx, UPS, and DHL.
• Warranty Terms: Covered by our comprehensive 12-month industrial warranty policy.

Professional Frequently Asked Questions (FAQ)

• • Q1: What physical cable is required to connect the IM463-2 to an IM314?
    A1: You must use the designated shielded 721-type cable assembly to ensure signal integrity over long runs.

• • Q2: Does the 6ES7463-2AA00-0AA0 require external 24V DC auxiliary power?
    A2: No, the module draws its operating current of 1320 mA directly from the S7-400 backplane 5 V DC bus.

• • Q3: How many S5 expansion racks can I daisy-chain with a single IM463-2 module?
    A3: You can connect multiple racks as long as the total cumulative cable length does not exceed the 600-meter limit.

• • Q4: What is the main point to check when selecting a refurbished or surplus unit?
    A4: Verify the module backplane connector pins are unbent and check that the front latch mechanism locks firmly.

• Q5: Can this module run in a hot-swapping configuration?
  A5: No, power down the S7-400 rack before inserting or removing the IM463-2 to prevent bus faults or hardware damage.
